AIR BAG SYSTEM
korando 2010.10
8620-23
The passenger's air bag is installed inside the instrument panel above the glove box. Its
operation process is the same as the driver's one. The driver's air bag, the passenger's air bag,
and the seat belt pretensioners on both seats are made to operate together. When the collision
G sensor inside the air bag unit sends a collision signal, the air bag unit instantaneously applies
a high current to the driver's and passenger's air bags and the seat belt pretensioners on both
seats, fires the detonator in the inflator, and inflates the air bag cushions (curtain air bags
independently operate in case of the side collisions).

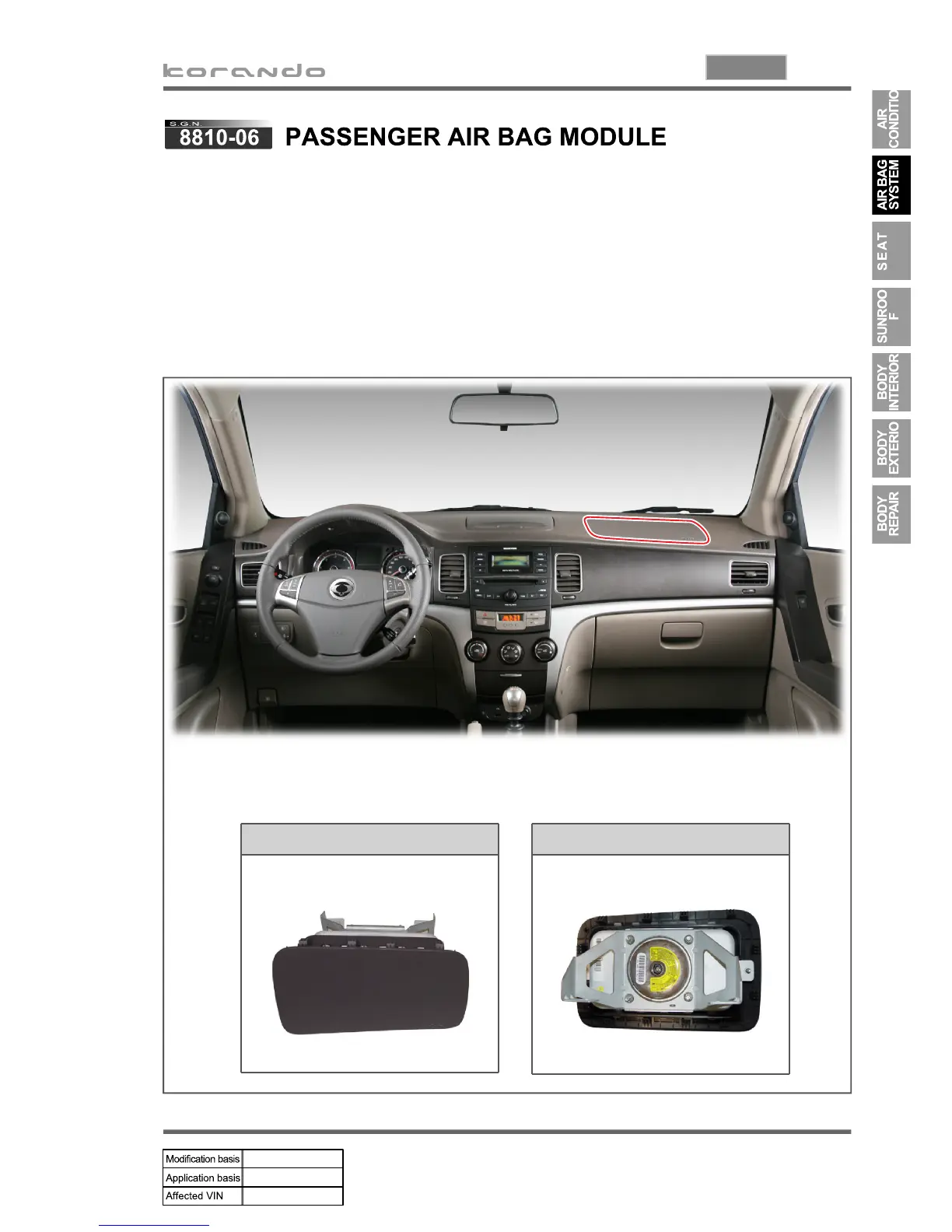

Front side of PAB module Rear side of PAB module
1) Location
