AIR BAG SYSTEM
korando 2010.10
7460-13

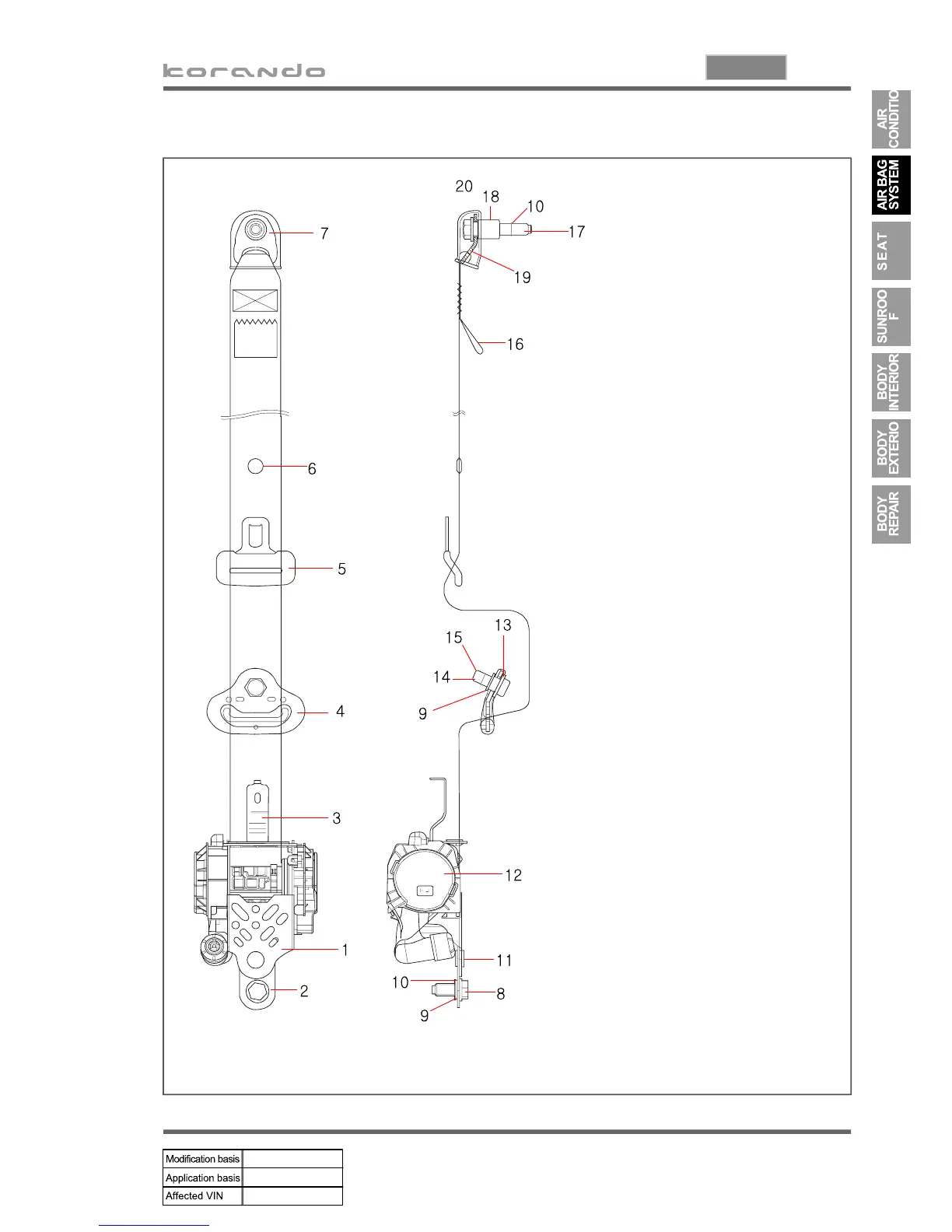

2) Components
1. Pretensioner reel assembly
2. Reel bracket
3. Upper stay for ring
4. D-ring
5. Bending tongue
6. Tongue stopper
7. Mini-anchor
8. D-bolt
9. Washer
10. Fiber washer
11. Rivet
12. D label
13. Plastic washer
14. Steel washer
15. D-bolt
16. Label
17. D-bolt
18. Spacer
19. Bush
20. Mini-anchor cover
