01-3
AIR CONDITIONER
KYRON 2007.04
6810-15

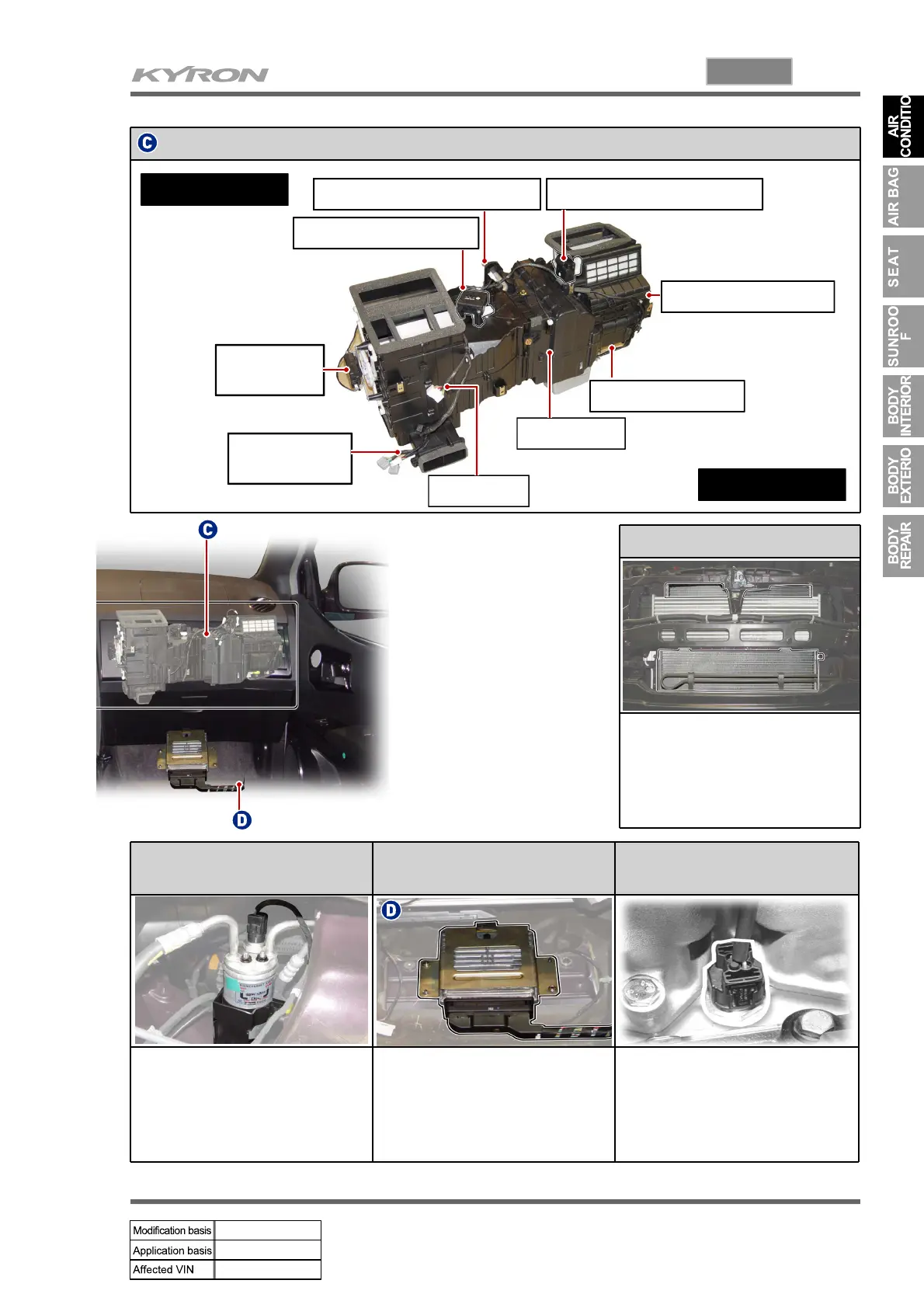

Front AirConditioner Module Assembly - Inside of Instrument Panel
Coolant temperature sensor
Air source door actuator
Air mix door actuator
Mode door
actuator
Air conditioner
controller wire
Main wire
Air conditioner filter
Thermo AMP
Power transistor
Heater Unit Side
Bloor Unit Side
Condenser
Installed in front of vehicle
and condenses vapor
refrigerant into low
temperature and high
pressure liquid refrigerant..
Receiver Drier (LH)
Engine ECU (Passenger
Footstep)
Coolant Temperature
Sensor (On Engine)
Absorbs moisture in the
refrigerant and reserves
refrigerant to supply smoothly.
Detects A/C switch position,
coolant temperature, engine
condition and driving condition
to control the air conditioner.
A sensor that detects coolant
temperature and transmits to
engine ECU.
