10-5
PROPELLER SHAFT
KYRON 2007.04
3310-00
2. COMPONENT LOCATOR

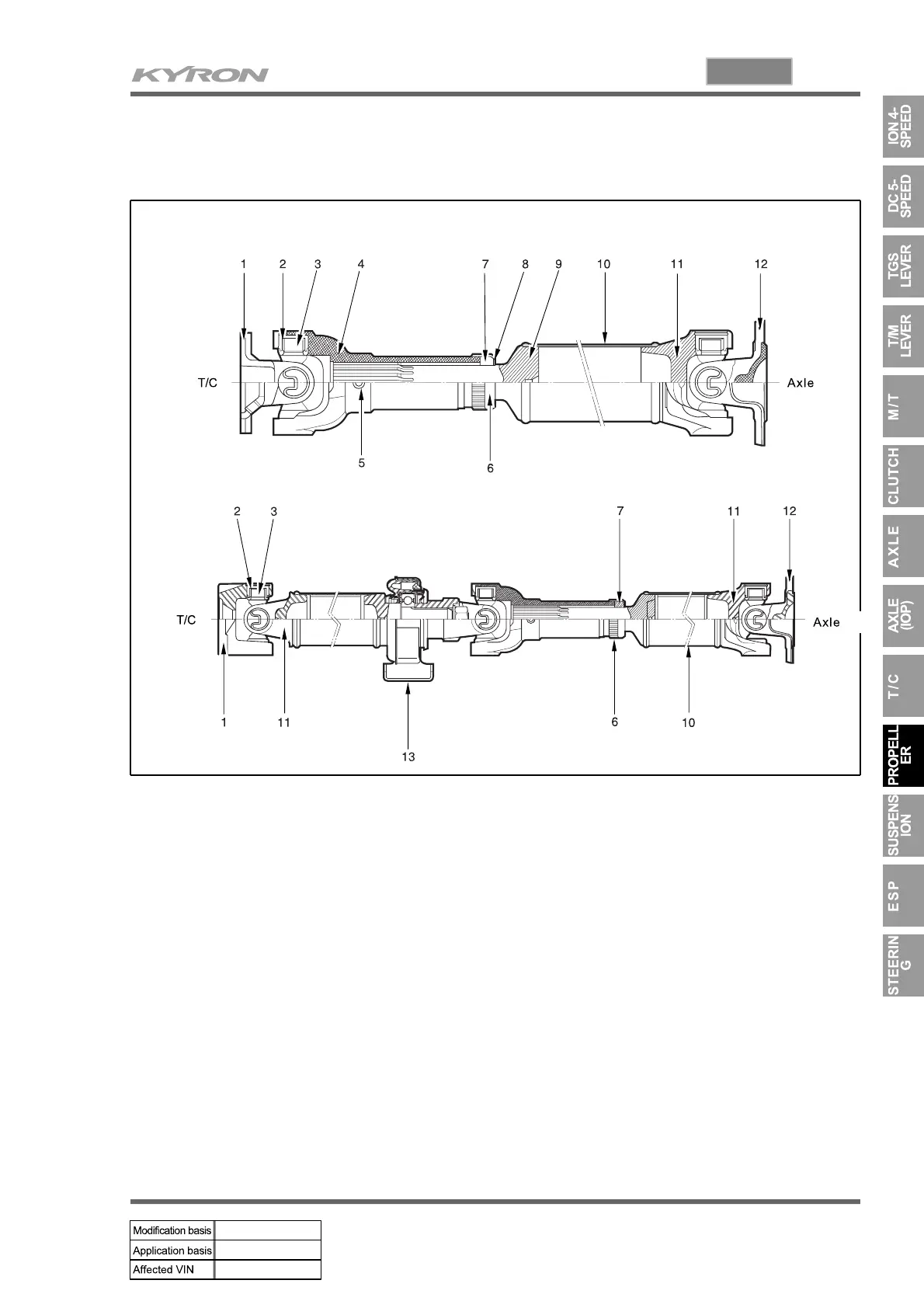

1) Cross Sectional View
1. Flange yoke
2. Journal bearing cap
3. Spider journal
4. Slip yoke assembly
5. Grease nipple
6. Dust cap
7. Oil seal
8. Split washer
9. Slip tube shaft
10. Tube
11. Tube yoke
12. Flange yoke
13. Center bearing
Front propeller shaft
Rear Propeller Shaft
