0-5
GENERAL INFORMATION
KYRON 2007.03
0000-00
7) PART LOCATION ACCORDING TO PART NUMBER
Ex.) C 1 0 2
▶
C : Symbol character for connector-
Symbol Character Description
C Connector (Connecting part that connects two wiring harness)
D Diode
G Ground
S Splice pack (Joint connector that connects various wiring harness)
1 : Part location number-
Part number according to locating section-
Part Numbe Location
□ 1□□ Engine compartment
□ 2□□ Instrument panel
□ 3□□ Passenger compartment
□ 4□□ Tailgate
□ 5□□ Underbody
In the locating section, the assignment for part number startsfrom left bottom and
proceeds clockwise.
In the fuse and relay box or the instrument panel, the partnumber is assigned from
left top to light bottom.
-
-

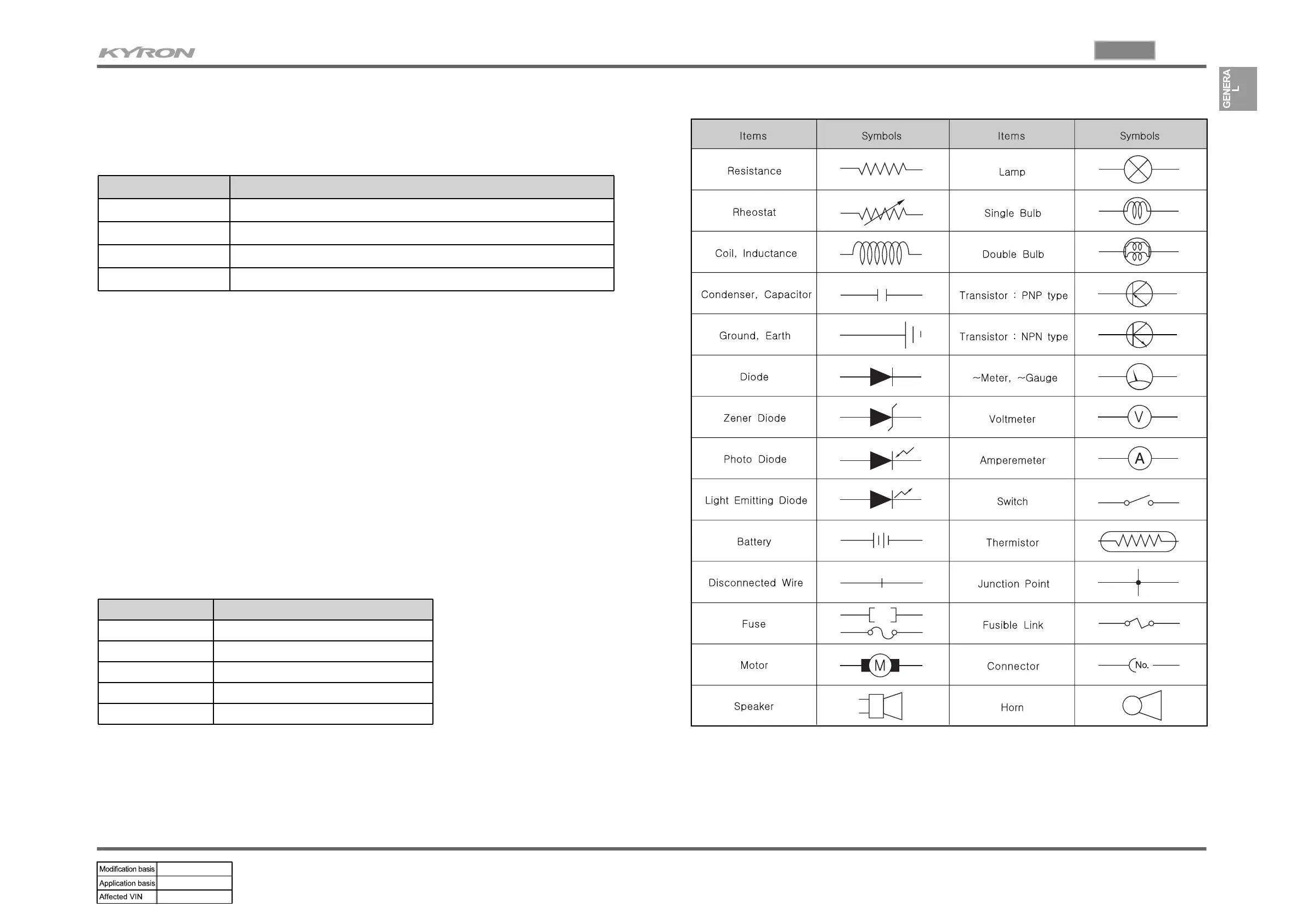

8) ELECTRIC SYMBOLS
