REXTON 2006.09
1491-01
1491-01

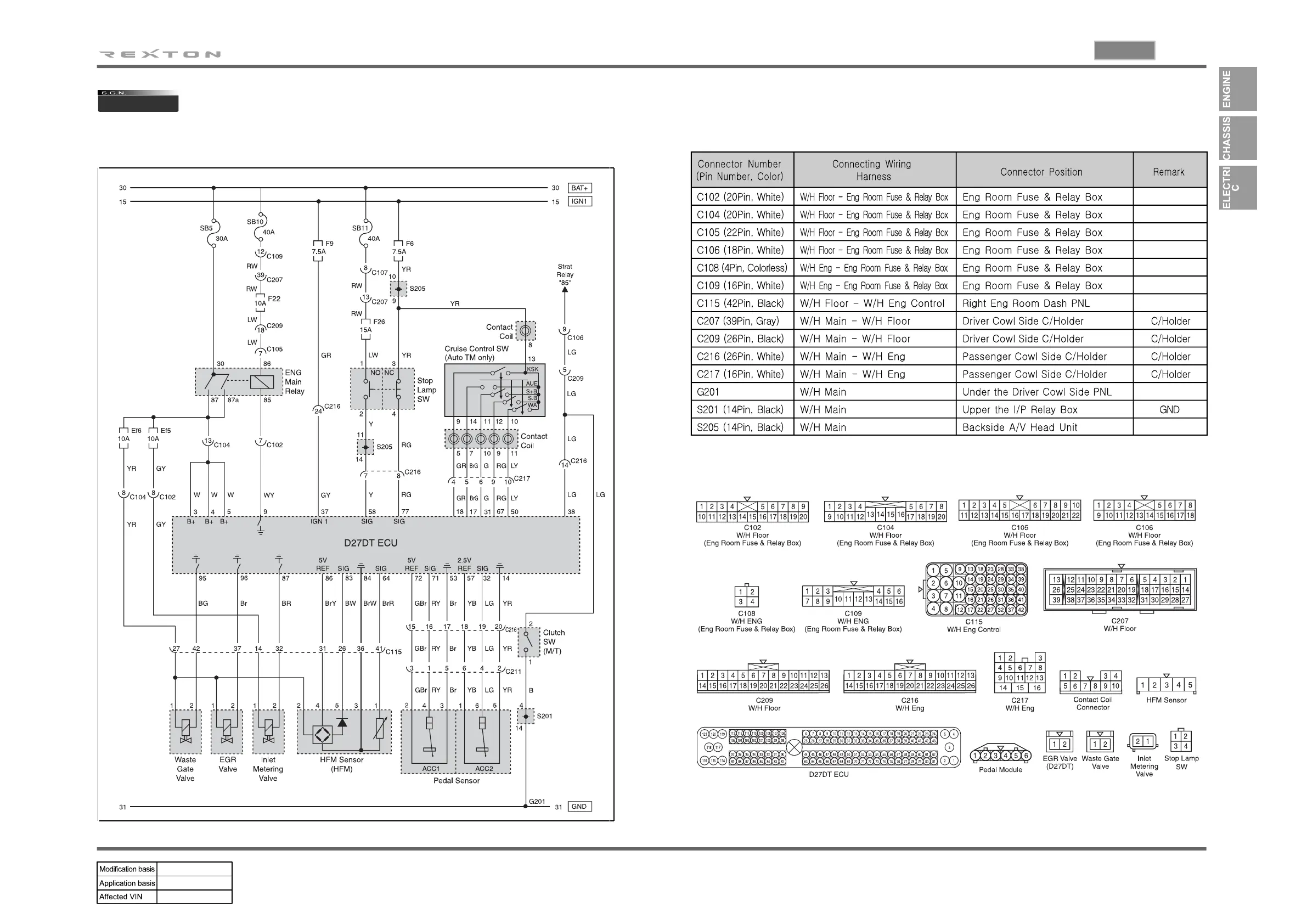

ECU (ENGINE CONTROL UNIT - D27DT)
1)
(1) CONNECTOR INFORMATION
(2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
ENG MAIN RELAY, PEDAL MODULE, HFM SENSOR,
V
ALVE,
CRUISE CONTROL SW
