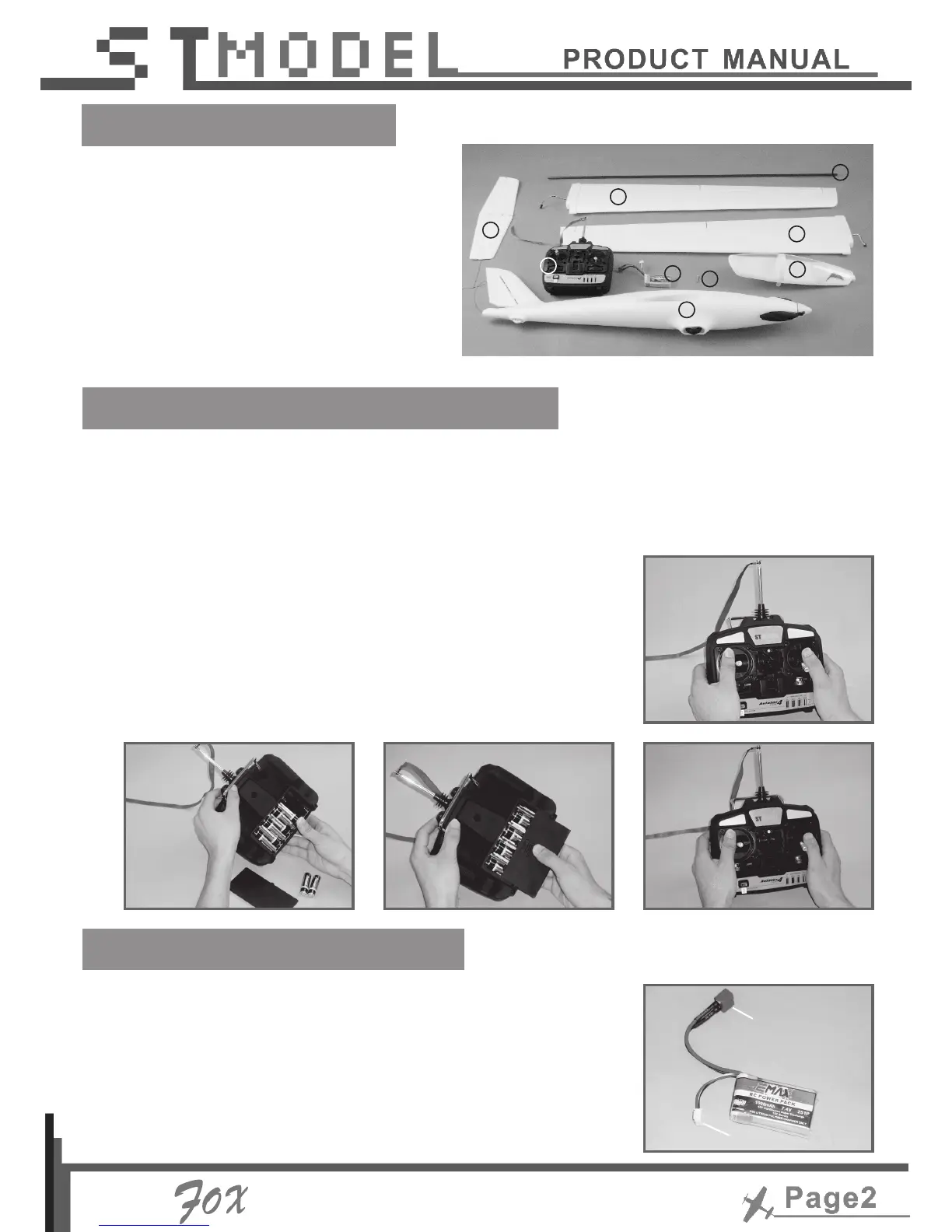

st model Fox - Contents of Kit; Prepare the Transmitter; Charge the Battery

CONTENTS OF KIT
01、Fuselage ×
02、 Hatch ................................×1
03、Left Wing ...........................×1
04、Right Wing .........................×1
05、Stabilizer ...........................×1
06、Screw ................................×1
07、Carbon Rod .......................×1
08、Transmitter ........................×1
09、Battery pack.......................×1
10、Decals ...............................×1
11、Product Manual ..................×1
........................... 1
1
2
3
4
5
7
8
6
9
PREPARE THE TRANSMITTER
1、Locate the transmitter ；
2、The transmitter requires eight alkaline “AA” batteries. To install the batteries, remove
the battery hatch by sliding it down and inserting them into place . Be sure to
follow the polarity diagram inside the battery compartment. Reinstall the battery hatch
.
CAUTION:(1)、Don't use rechargeable batteries
(NiCd&NiMh);
(2)、Don't mix old and new batteries;
(3)、Don't mix alkaline and standard (carbon-zinc)
batteries;
3、Switch the transmitter on and check the LED on the front of
the transmitter . If the green LED is on it is safe
to fly. If the red LED is flashing, install fresh batteries. Also
check to make sure that the batteries are installed correctly.
4、Switch the transmitter off and stand by for later use.
(PIC.01)
(PIC.02)
(PIC.03)
(PIC.04)
CHARGE THE BATTERY
FOX is equipped with a 2cell-7.4V Li-Po battery pack
. The Li-Po battery has two connectors. One is for
cell balance charging and the other is for discharging.
CAUTION：1、Only charge the Li-Po battery with Li-Po battery
balance charger. Or use a conforming charger
which can ensure the Li-Po battery safety
during charging.
(PIC.05)
Balance charging connector
Discharging
connector
(PIC.01)
(PIC.04)
(PIC.02) (PIC.03)
(PIC.05)
