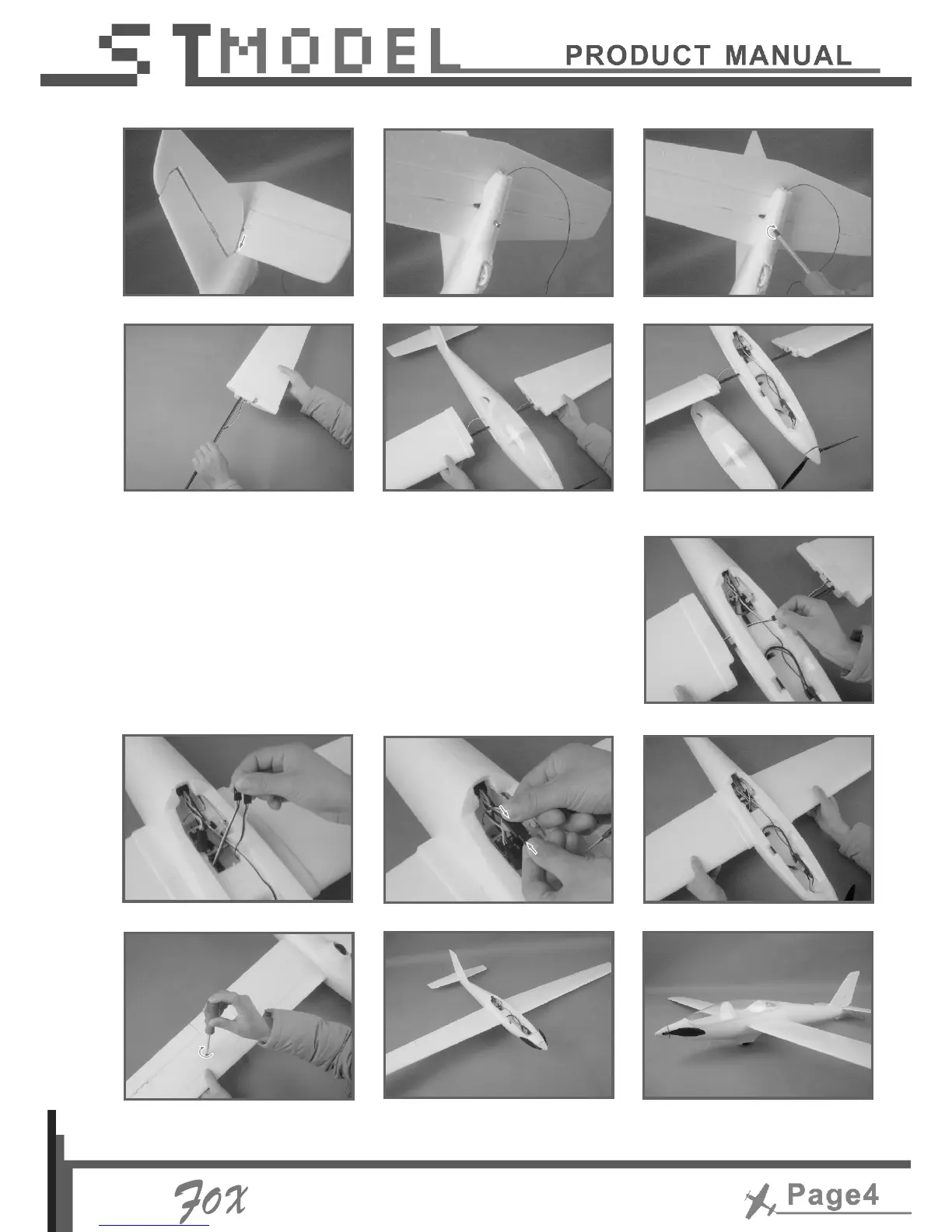

6、Before fix the wings and fuselage in place , open the canopy hatch and
push the two aileron servo wires through the fuselage
into the canopy as picture shows .Take the
aileron servo wires and connect to the servo extension
leads . Ensure the polarity should be contacted
correctly .
7、Fit the wings and the fuselage in place .Then
tighten the screws under the wings , to avoid
the wings loosening .
(PIC.17)
(PIC.18)
(PIC.19)
(PIC.20)
(PIC.21)
(PIC.22)
(PIC.23)
(PIC.12) (PIC.13) (PIC.14)
(PIC.15) (PIC.16) (PIC.17)
(PIC.18)
(PIC.21)(PIC.19) (PIC.20)
(PIC.24)(PIC.22) (PIC.23)
