STA-RITE MSG-7 - Repair Parts

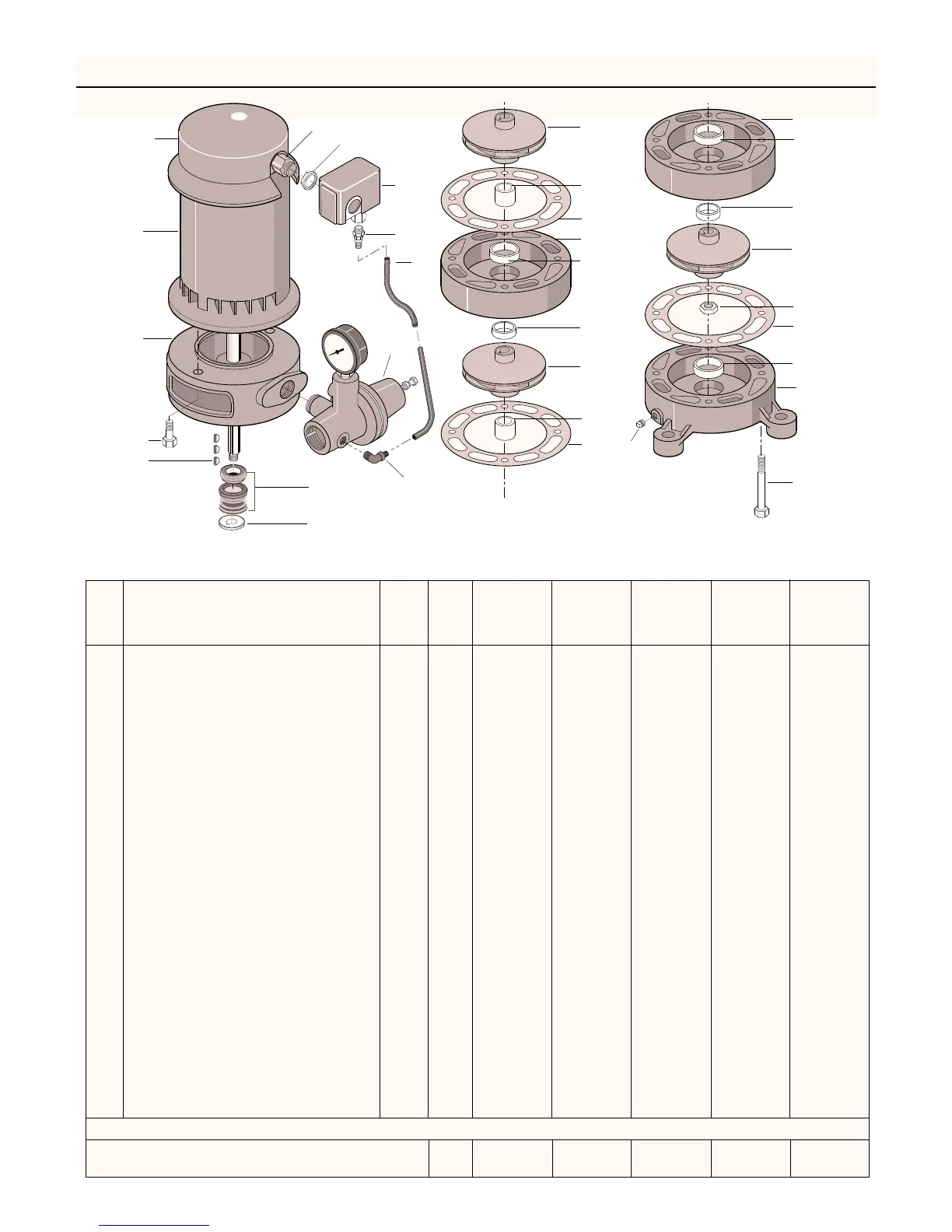

Repair Parts 15
1A
9
10
1
3
4
5
6
7
8
2
11
19
16B
16C
14
15
16A
16
16A
15
14
13
12
16B
16C
14
17
18A
18
20
18B
16
20
100
80
60
40
368 1293
Repair Parts – Multi-Stage Jet
MSC-6 MSD-6 MSE-6 MSF-6 MSG-6
Key Part With No. MSC-7 MSD-7 MSE-7 MSF-7 MSG-7
No. Description Kit Used 1/2 HP 3/4 HP 1 HP 1-1/2 HP 2 HP
1 Motor-115/230V Single Phase 1 A300CH A300DH A300EH
1 Motor-230V Single Phase 1 A300FH AE300GH
1A Motor Canopy 1 U18-1300 U18-1300 U18-1300 U18-1355 U18-1355
2 Connector 1 J43-13C J43-13C J43-13C J43-13C J43-13C
3 Locknut - 1/2” 1 U36-112ZP U36-112ZP U36-112ZP U36-112ZP U36-112ZP
4 Pressure Switch 1 U217-1216 U217-1216 U217-1216 U217-204E U217-204E
5 Barbed Fitting - Straight 1 U111-211T U111-211T U111-211T U111-211T U111-211T
6 Switch Tube - 14-1/2” 1 U37-672P U37-672P U37-672P U37-672P U37-672P
7 Pressure Regulator Assembly 1 J212-24E J212-24E J212-24E J212-24E J212-24E
8 Barbed Fitting - Elbow 1 U111-212T U111-212T U111-212T U111-212T U111-212T
9 Adapter (-6 Series) 1 L2-16 L2-16 L2-16 L2-16 L2-16
9 Adapter (-7 Series) 1 L2-16A L2-16A L2-16A L2-16A L2-16A
10 Capscrew - 3/8”-16x1-1/4” Lg. 2 U30-75ZP U30-75ZP U30-75ZP U30-75ZP U30-75ZP
11 Shaft Key OH/SG 2 U65-15SS U65-15SS U65-15SS U65-15SS(3) U65-15SS(3)
12 Shaft Seal (-6 Series) OH/SG 1 U109-99 U109-99 U109-99 U109-99 U109-99
12 Shaft Seal (-7 Series) OH/SG 1 17351-0101A 17351-0101A 17351-0101A 17351-0101A 17351-0101A
13 Spring Holder OH/SG 1 J24-11 J24-11 J24-11 J24-11 J24-11
14 Impeller OH 2 J105-75PA J105-75P J105-76P J105-74PA(3) J105-74P(3)
15 Spacer - Impeller (1 or 2 required) – J43-23 J43-23 J43-23 J43-23 J43-23
16 Intermediate Volute w/Wear Rings & Gasket (1) J101-26 J101-26 J101-26 J101-26(2) J101-26(2)
16A Gasket OH/SG (1) J20-11 J20-11 J20-11 J20-11 J20-11
16B Wear Ring OH (1) J23-10 J23-10 J23-10 J23-10 J23-10
16C Wear Ring OH (1) J23-11 J23-11 J23-11 J23-11 J23-11
17 Impeller Stop Nut 1 U36-175D U36-175D U36-175D U36-175D U36-175D
18 Base Volute Complete 1 J101-33 J101-33 J101-33 J101-33A J101-33A
18A Gasket OH/SG (1) J20-11 J20-11 J20-11 J20-11 J20-11
18B Wear Ring OH (1) J23-10 J23-10 J23-10 J23-10 J23-10
19 Pipe Plug - 1/4” NPT (1) U78-941ZPV U78-941ZPV U78-941ZPV U78-941ZPV U78-941ZPV
20 Capscrew - 3/8”-16x4-1/4” Lg. (4) U30-82ZP U30-82ZP U30-82ZP – –
20 Capscrew - 3/8”-16x6” Lg. (4) – – – U30-81ZP U30-81ZP
SERVICE KITS
Seal and Gasket Kit (SG) 1 PP1650 PP1650 PP1650 PP1650 PP1650
Overhaul Kit (OH) 1 PP1655 PP1656 PP1657 PP1658 PP1659
