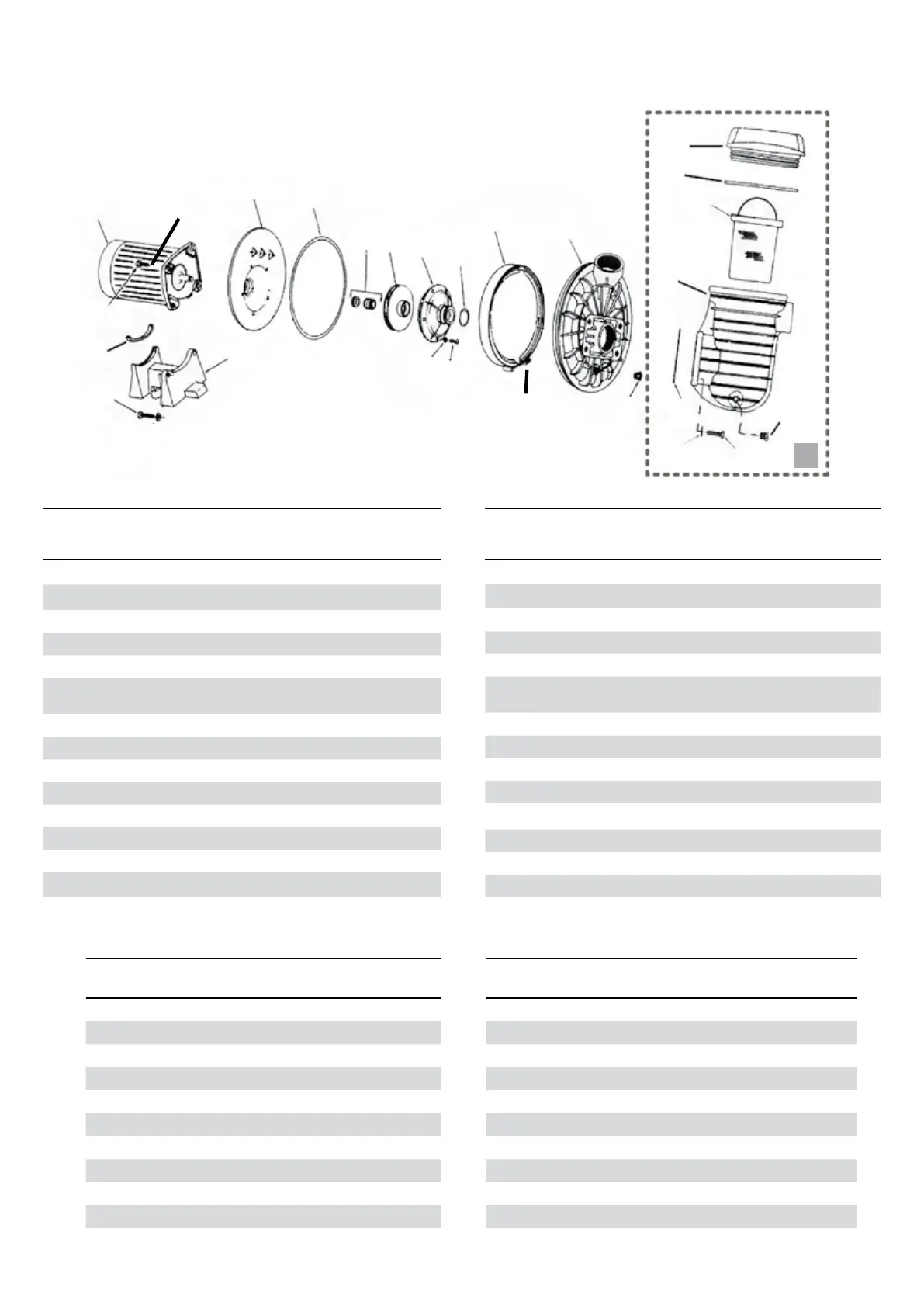

TECHNICAL DATA – TECHNISCHE DATEN - TECHNISCHE GEGEVENS
DONNÉES TECHNIQUES – DATOS TÉCNICOS – DATI TECNICI – Технические характеристики
1
2
3
4
5
6
7
8a
9
24
22
21
20
19
18
8b
15
10
11
12
13
17
16
15
14
25
23
No. Qty.
Ref. 5P2R / S5P2R Description
1
1 see table below Motor IP55
2
1 C103-193P / C103-193PBG Seal Plate
3
1 P-39006000 O-Ring
4
1 17304-0100S Mechanical seal
5a
1 see table below Impeller
5b
1 C30-12 / C30-17SS Impeller screw ONLY for
3-phase
6
1 see table below Diffuser
7
1 U9-226 O-Ring Diffuser
8a
1 C19-37A Clamp
8b
1 WC36-22 Clamp Knob
9
1 C176-47P1W Pump Body
10
1 C3-139P Trap Cover
11
1 U9-229 O-Ring Cover
12
1 C108-33P Trap Basket
13
1 C253-53P1W Trap Body
Model
No.
Motor
(1)
Impeller
(5a)
Diffusor
(6)
Model
No.
Motor
(1)
Impeller
(5a)
Diffusor
(6)
5P2RB-1 B0-37KW-1P2 C105-92B1 C1-216P S5P2RB-1 S0-25KW-1 C105-92SB1 C1-216PB
5P2RB-3 B0-37KW-3P2 C105-92B3 C1-216P S5P2RB-3 S0-25KW-3 C105-92SB3 C1-216PB
5P2RC-1 B0-37KW-1P2 C105-92C1 C1-216P S5P2RC-1 S0-55KW-1 C105-92SC1 C1-216PB
5P2RC-3 B0-37KW-3P2 C105-92C3 C1-216P S5P2RC-3 S0-55KW-3 C105-92SC3 C1-216PB
5P2RD-1 B0-55KW-1P4 C105-138D1 C1-200PA S5P2RD-1 S0-55KW-1 C105-92SD1 C1-216PB
5P2RD-3 B0-55KW-3P4 C105-138D3 C1-200PA S5P2RD-3 S0-55KW-3 C105-92SD3 C1-216PB
5P2RE-1 B0-75KW-1P4 C105-137E1 C1-200PA S5P2RE-1 S0-75KW-1 C105-137SE1 C1-200PAB
5P2RE-3 B0-75KW-3P4 C105-137E3 C1-200PA S5P2RE-3 S0-75KW-3 C105-137SE3 C1-200PAB
5P2RF-1 B1-10KW-1P4 C105-137F1 C1-200PA S5P2RF-1 S1-10KW-1 C105-137SF1 C1-200PAB
5P2RF-3 B1-10KW-3P4 C105-137F3 C1-200PA S5P2RF-3 S1-10KW-3 C105-137SF3 C1-200PAB
No. Qty.
Ref. 5P2R / S5P2R Description
14
2 U178-920P Drain Plug with O-Ring
15
4 U30-64SS Capscrew
16
4 U43-41SS Washer
17
1 C20-123 Gasket
18
5 U30-542SS Capscrew
19
5 U43-21SS Lockwasher
20
1 C4-42P Pump Base 0.25kW -> 0.55kW
20
1 C4-41P Pump Base 0.75kW - 1.10kW
21
2 U30-77SS Screw
22
1 C35-11 Motor Pad 0.25kW -> 0.55kW
22
1 C35-12D Motor Pad 0.75kW - 1.10kW
23
2 U43-42SS Washer
24
2 U30-74SS Capscrew
25
1 PKG115 Prelter - 5” Trap Assembly
(S)5P2R
