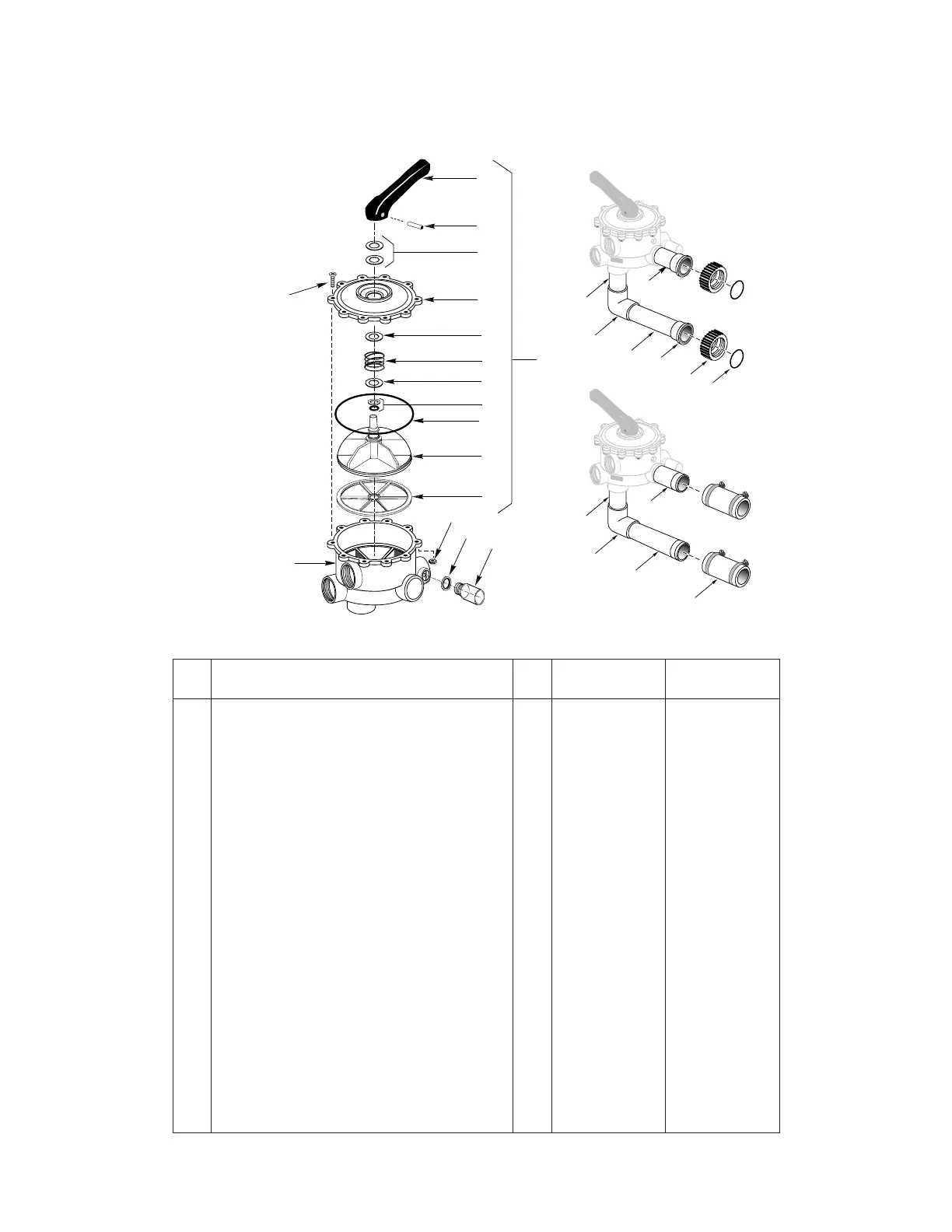

Sidemount Multiport Valve Assembly – 2"
WC212-150PN – Valve with 2" Union Connection
WC212-150PA – Valve with 2" Hose Connection
1
2
3
4
5
6
8
9
10
Valve body not
available separately.
11
12
13
13
14
6
7
2826b 0597
16
15
16
15
17
21
18
19
20
23
24
22
Key Model Model
No. Part Description Qty WC212-150PN WC212-150PA
1 Handle (SP-715-F) 1 WC54-15 WC54-15
2 Pin (SP-710X-Z-7) 1 WC30-58 WC30-58
3 Bearings and Washer (SP-710-Z-14) 1 WC23-10 WC23-10
4 Valve Cover (SP-715-B) 1 WC3-40S WC3-40S
5 Cover O-Ring (SP-715-Z-1) 1 U9-243 U9-243
6 Spring Bearing with Washer (SP-715-Z-2[A]) 2 WC23-9 WC23-9
7 Spring (SP-603-S) 1 WC24-4 WC24-4
8 O-Ring and Teflon Seal (SP-735-GA) 1 U9-244 U9-244
9 Key and Stem Assembly (SP-715-C) 1 WC62-2 WC62-2
10 Gasket (SP-715-D) 1 WC20-22 WC20-22
11 Sight Glass w/O-Ring (SP-710-17-MA) 1 WC170-4 WC170-4
12 O-Ring (SP-710-N) 1 WC9-2 WC9-2
13 Screw and Nut (SP-710-Z-1) 10 WC30-55 WC30-55
14 Cover and Handle Assembly (SP-715-BA) 1 WC154-15 WC154-15
15 Nipple, 2"x4.25" PE 1 80971-0421 80971-0421
16 Elbow, 90 degree 1 24761-0091 24761-0091
17 Nipple, 2”x7.25" PE 1 80971-0721 –
18 Adapter, Union 2" Slip 2 U11-196P –
19 Collar, Union 2" 2 U11-200P –
20 Union O-Ring 2 U9-362 –
21 Nipple, 2"x3.38" PE 1 80971-0331 –
22 Nipple, 2"x3.38" TOE 1 – 80981-0336
23 Nipple, 2"x7.25" TOE 1 – 80981-0726
24 2"x2" Hoses with Clamps (Set of 2)* – 24750-0341
25 1
1
⁄2"x2" Hoses with Clamps (Set of 2)* – 24750-0624
REPAIR PARTS LIST
* Kit includes 2 hoses, 4 clamps.
