4100PT Unpacking and Assembling
21. Hold Console [#25773] between the handle and the neck
covers. Plug in the main power cables and the contact heart rate
cables.
22. Install Console [#25773] by aligning the four threaded holes
with the four slots in the top of the Neck Covers. Loosely install
(qty 4) ¼”-20 x 1” screws [#25777] and (qty 4) ¼” internal star lock
washers [#22138]. Once all four screws are in place, tighten the
four ¼”-20 screws using a 5/32” allen wrench. (See Figure 7)

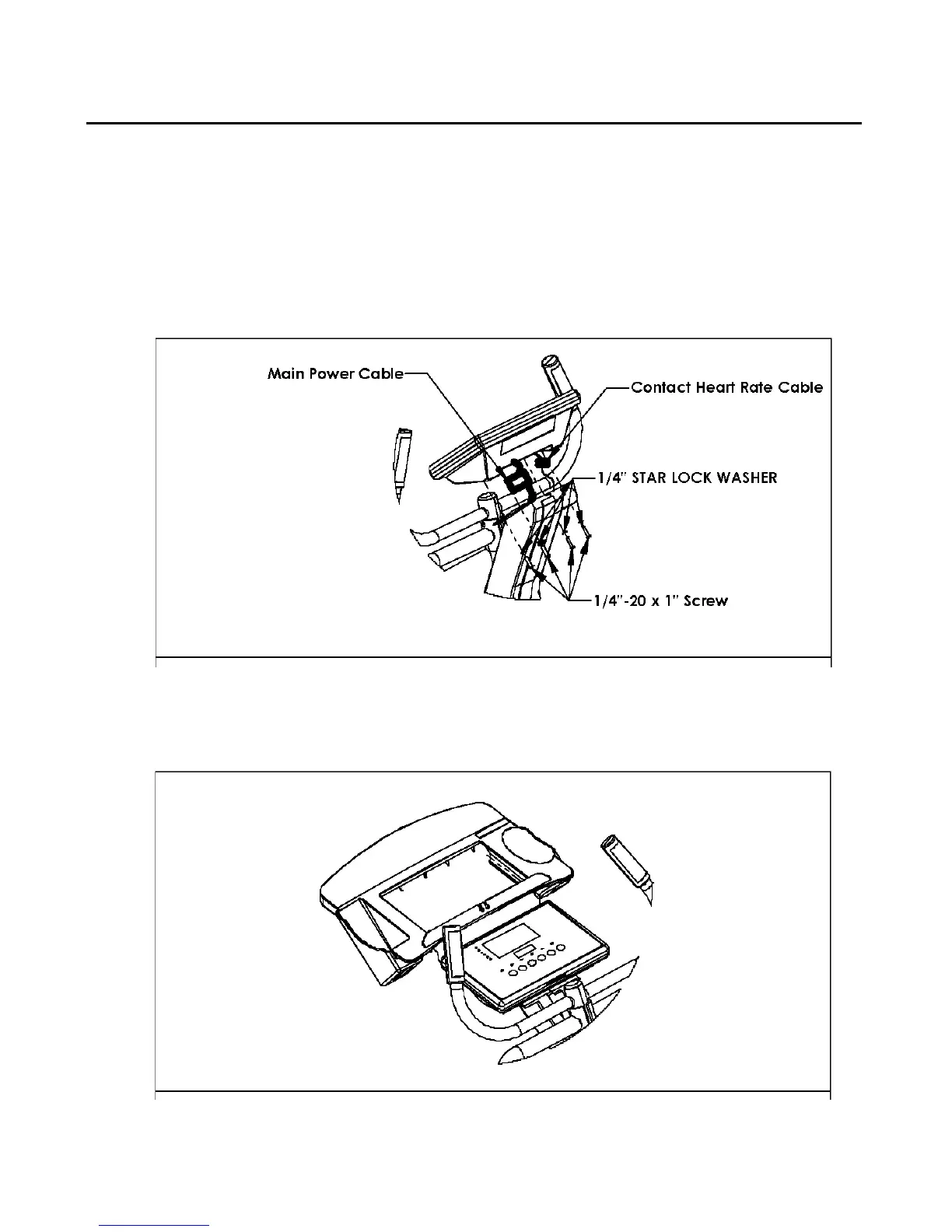

Figure 7
23. Install Reading Rack [#22775] by aligning the edges of the
reading rack with the console and sliding it down onto the console.
(See Figure 8)
Figure 8
