Stairmaster 4100PT - Page 19

- 19 -
4100PT Unpacking and Assembling
24. Install Left and Right Pedal Pads [#18054] by positioning the
front edge of the pedal pad over the Front edge of the pedal and
snapping it out the front edge. Pull the pedal pad back and down
over the back edge of the pedal. The will require a slight amount of
force to stretch the pad over the pedal.
25. Plug Power Supply [#25726] into the bottom left side of the
stepper. See figure 9.

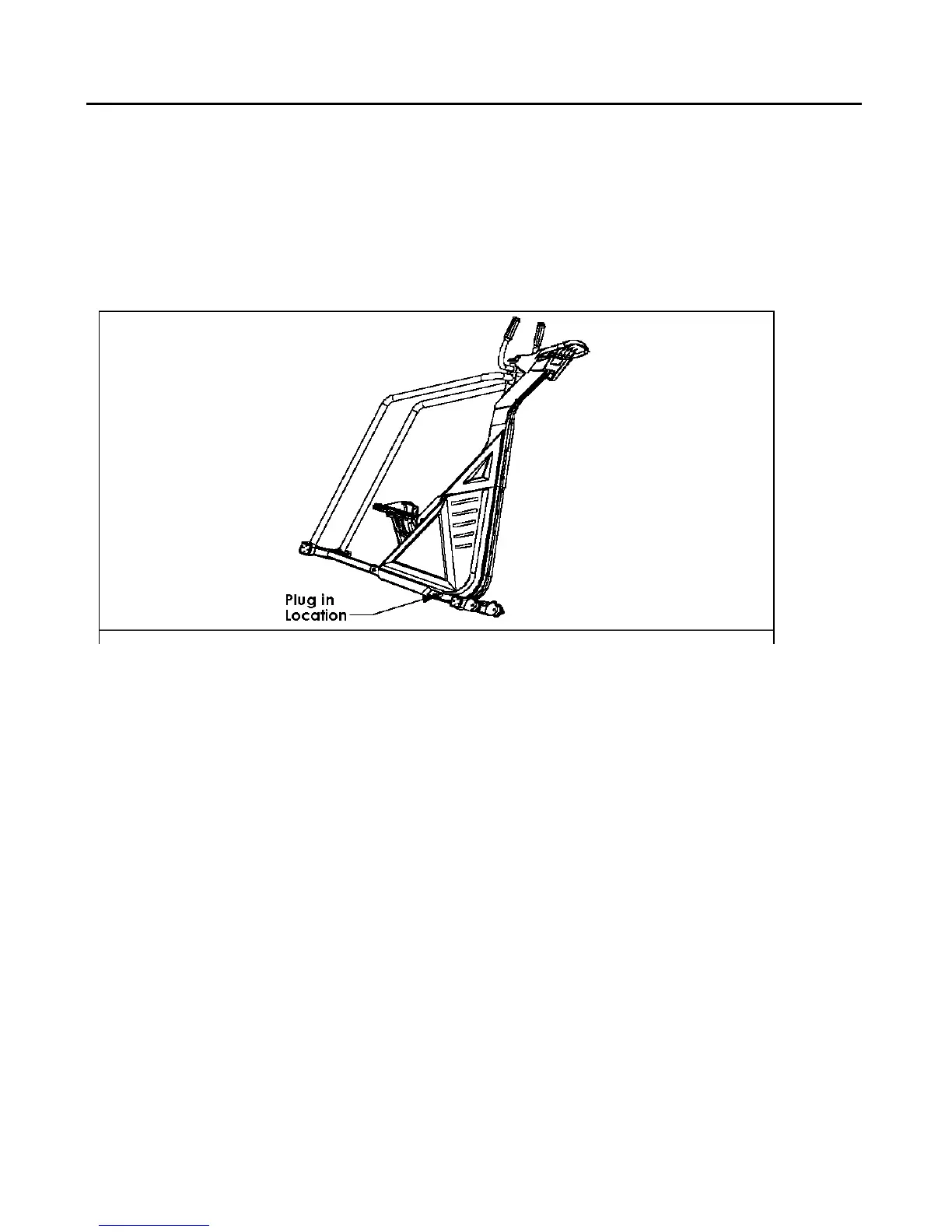

Figure 9
