STAMINA WAVE 1450 - OPERATIONAL INSTRUCTIONS; HEART RATE TRANSMITTER; USING THE HEART RATE TRANSMITTER CHEST STRAP

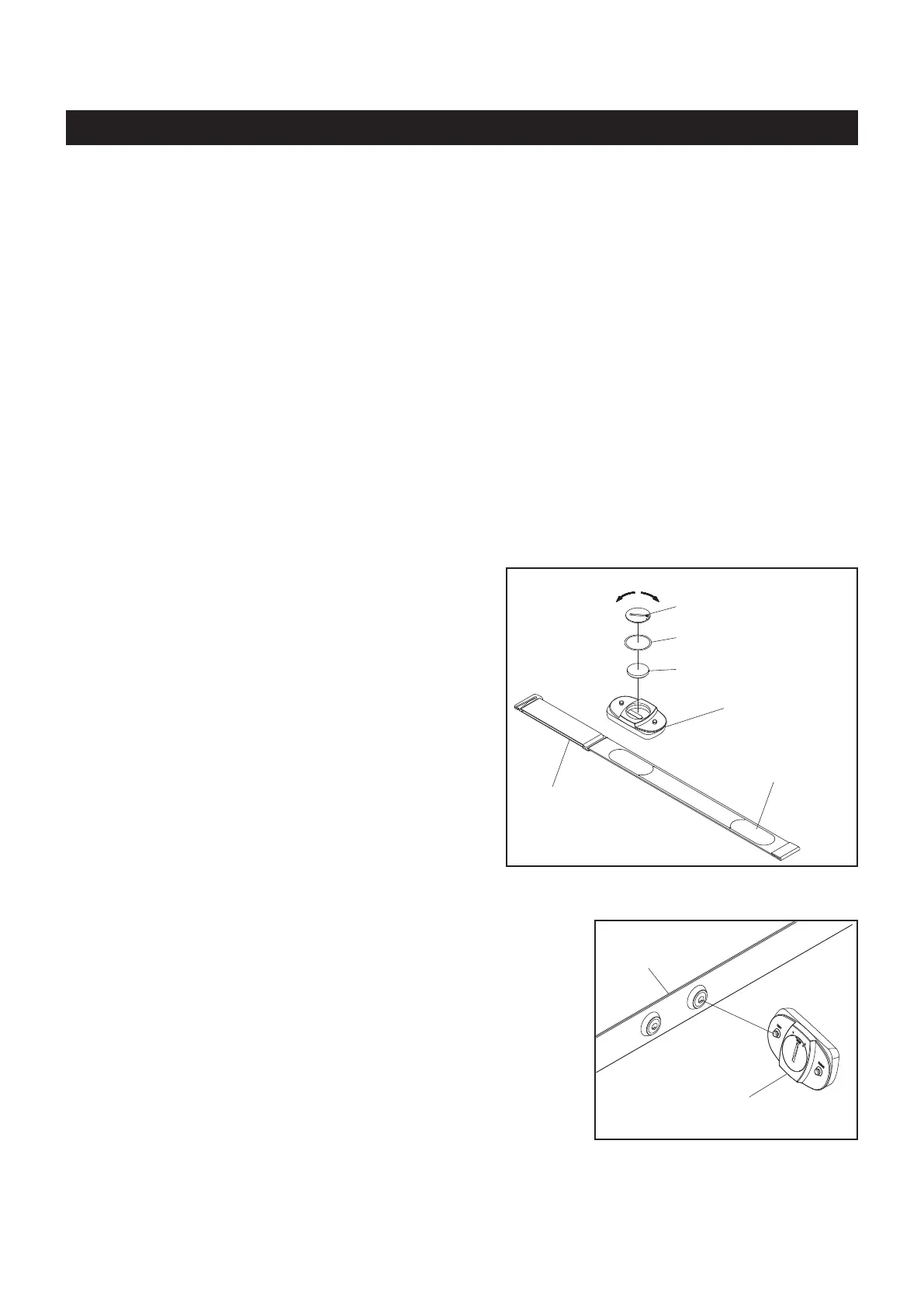

To assemble the HEART RATE TRANSMITTER(102),
insert the BUTTON BATTERY(CR2032)(106) as shown
in the illustration. Place the BATTERY RUBBER
RING(104) on the edge of the opening and place
the BATTERY COVER(105) over the BUTTON
BATTERY(CR2032)(106). Using a coin or similar object,
press down on the BATTERY COVER(105) and turn
to securely close the cover.
NOTE:
10
Using the Heart Rate Transmitter Chest Strap
The HEART RATE TRANSMITTER(102) worn around the chest is powered by a BUTTON BATTERY
(CR2032)(106) located in the back of the HEART RATE TRANSMITTER(102). Two electrodes on ELASTIC
SENSOR STRAP(103) monitor your heartbeat, and the adjustable ELASTIC SENSOR STRAP(103) holds
the transmitter in place. The receiver built into the Wave Water Rowing Machine 1450 picks up your heart
rate from the HEART RATE TRANSMITTER(102) and displays it on the monitor during your workout.
(102) Heart Rate Transmitter
(106) Button Battery
(105) Battery Cover
(104) Battery Rubber Ring
(103) Elastic
Sensor Strap
close
open
OPERATIONAL INSTRUCTIONS
The Wave Water Rowing Machine 1450 can measure how hard you are exercising by monitoring your
heart rate with the HEART RATE TRANSMITTER(102). Your heart rate reading gives you a snapshot of how
hard your heart is working at that point in your workout by measuring the number of heart beats per minute.
The HEART RATE TRANSMITTER(102) worn around your chest sends your heart rate information to a
receiver inside the METER(52) so your heart rate is tracked while you exercise. This is the most reliable
way to measure your heart rate to make sure you are exercising within your target heart rate zone so you
get the most out of your workout time.
HEART RATE TRANSMITTER
Heart Rate
Sensor Electrode
1. Make sure to close the BATTERY COVER
(105) very tightly as illustrated to prevent
sweat and moisture from damaging the
battery.
2. The HEART RATE TRANSMITTER(102) is
latex free and its material is appropriate for
human contact.
(103) Elastic
Sensor Strap
(102) Heart Rate Transmitter
Refer to the illustration. Press the HEART RATE TRANSMITTER(102)
onto the buttons on the ELASTIC SENSOR STRAP(103).
