STAMINA WAVE 1450 - Page 20

TROUBLE SHOOTING GUIDE
Bungee Cord
9.
8.7.
Sensor Wires
Allen Wrench
Wrench
Wrench
Screw

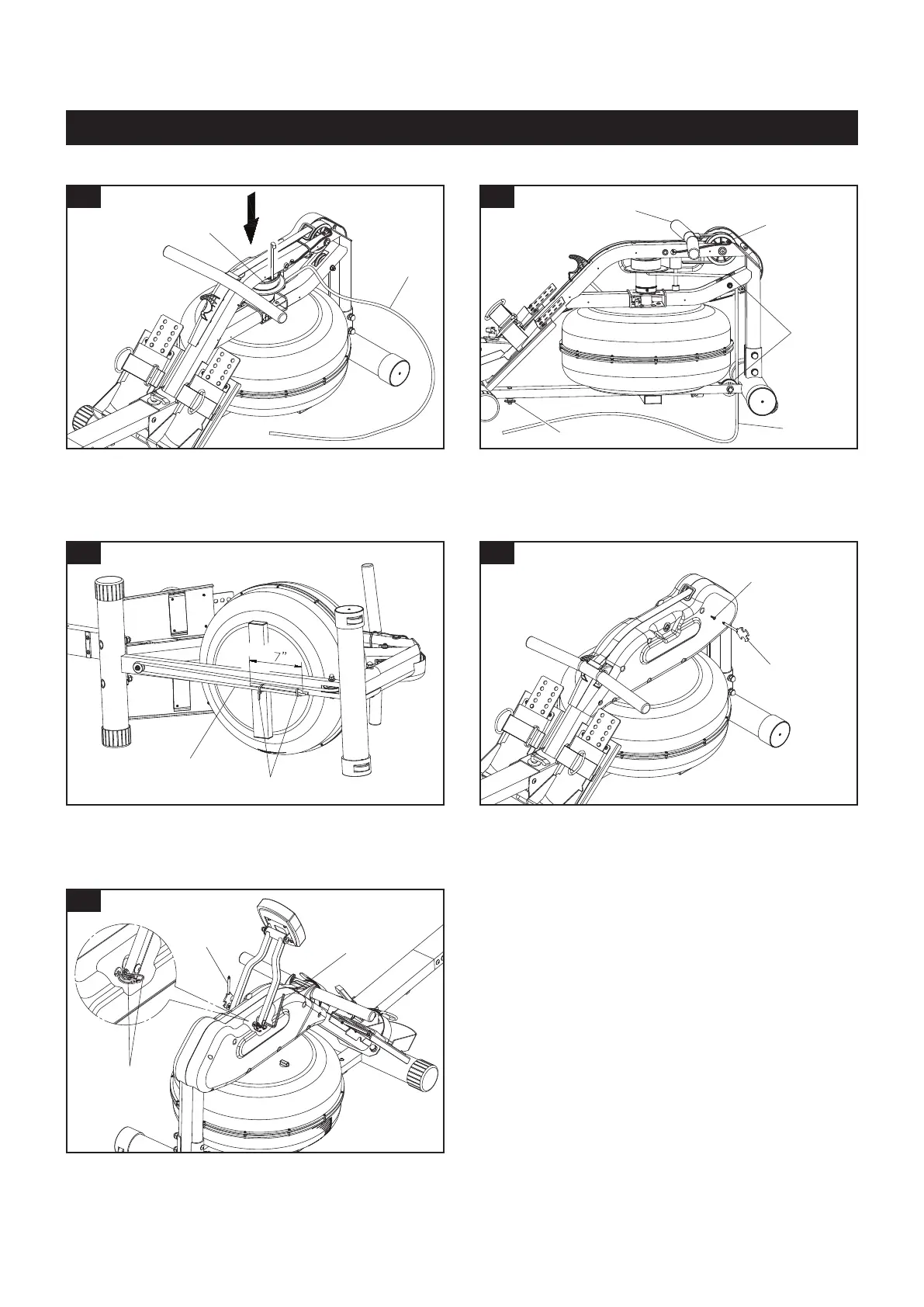

Attach the Meter Post Assembly back to the
frame. Connect the Sensor Wires.
Attach the Right Cover back to the frame. Place
the Handlebar on the Handlebar Holder.
Secure the Bungee Cord to the frame with the
Cable Ties as illustrated.
Cable Ties
Bungee
Cord
5.
Run the new Bungee Cord through the Strap/
Bungee Pulley, and pull the Bungee Cord to the
end.
Strap/
Bungee Pulley
Bungee
Cord
6.
Bungee
Pulleys
Rotate the Strap/Bungee Pulley enough to place
the Handlebar up against the Strap Pulley. Run
the Bungee Cord through the Bungee Pulleys.
Bungee Pulley
Strap Pulley
Place the Handlebar
at this position.
20
