Stamina 1300 - Handlebar & Meter Assembly (Steps 7-8)

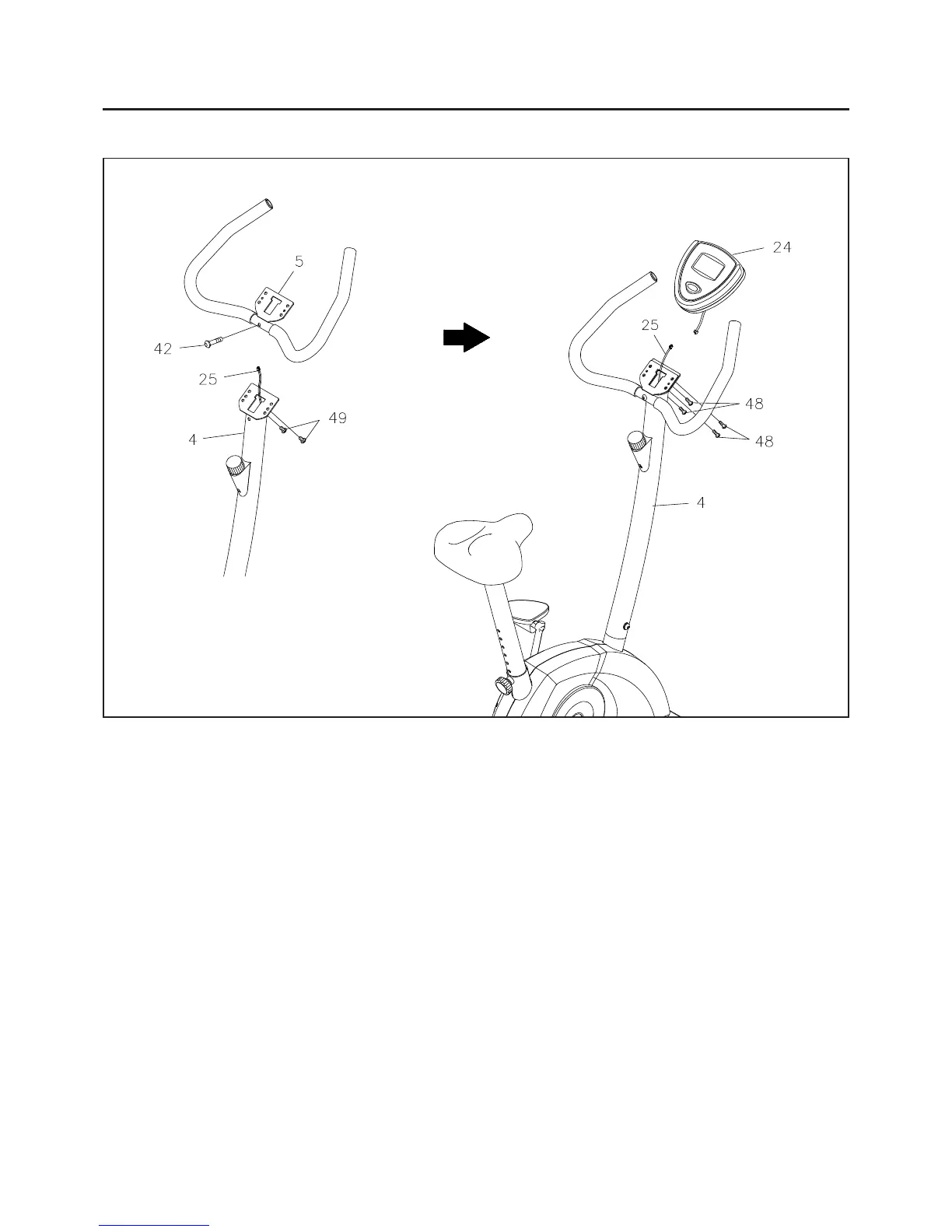

STEP 7
Run the CONNECTION WIRE(25) through the hole in the plate on the HANDLEBAR(5). Attach the
HANDLEBAR(5) to the UPRIGHT(4) with BUTTON HEAD BOLT(M8x1.25x30mm)(42) and ROUND HEAD
SCREWS(M6x1x8mm)(49).
STEP 8
Install two AA batteries into the METER(24), two batteries included. See page 13 for detailed battery installation
instructions. Plug the CONNECTION WIRE(25) to the METER(24), and push the excess wires back into the
UPRIGHT(4). Place the METER(24) onto the plate on the HANDLEBAR(5) and secure with ROUND HEAD
SCREWS(M5x0.8x15mm)(48).
NOTE: Be careful not to damage the wires when attaching the METER(24).
