ASSEMBLY INSTRUCTIONS
8
STEP 3
NOTE:
The RIGHT PEDAL(32) has R stamped on the end of the pedal shaft. The RIGHT PEDAL(32) has
right hand threads and is tightened by turning clockwise. The LEFT PEDAL(31) has L stamped on
the end of the pedal shaft. The LEFT PEDAL(31) has left hand threads and is tightened by turning
counterclockwise.
STEP 4

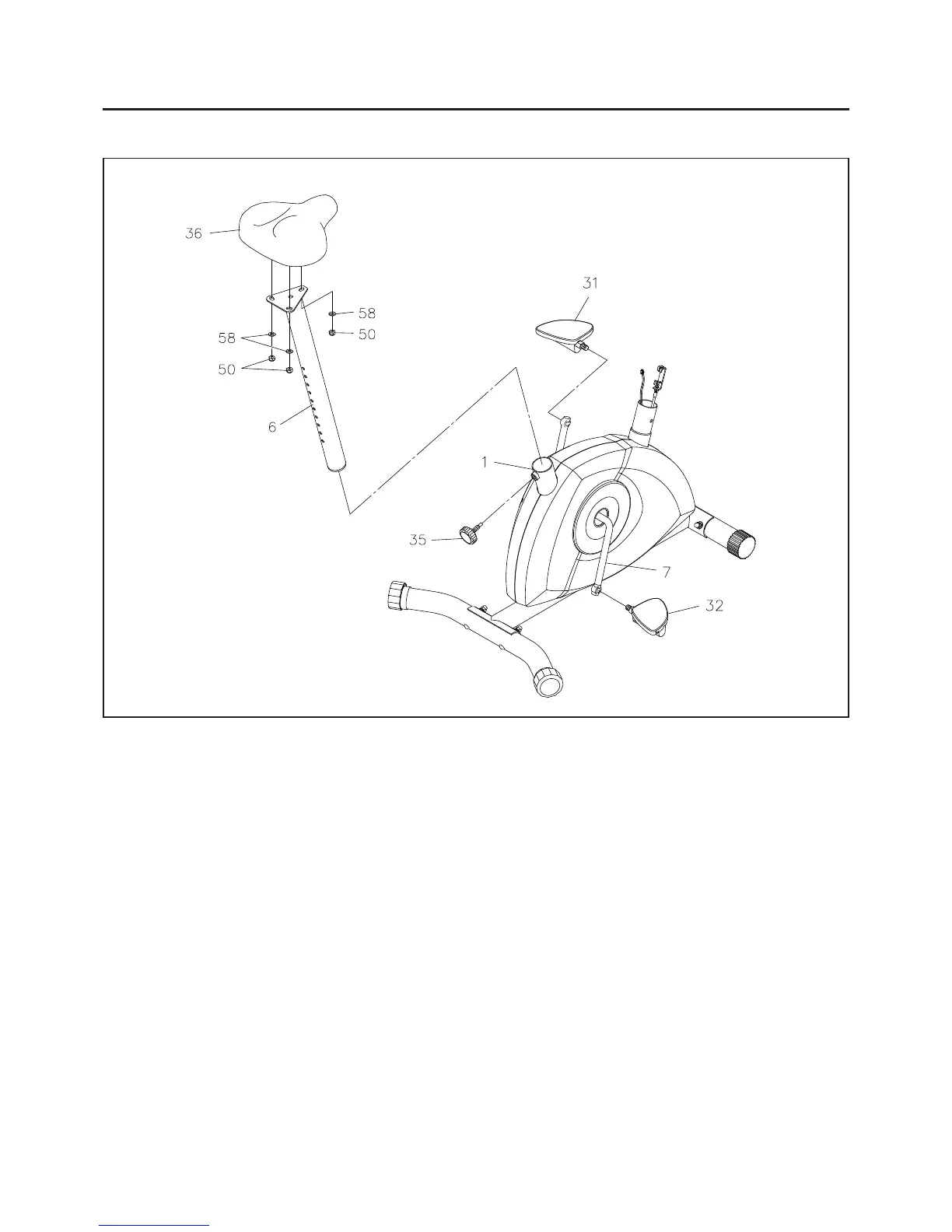

Attach the SEAT(36) to the SEAT POST(6) with NYLOCK NUTS(M8x1.25)(50) and WASHERS(M8)(58).
Insert the SEAT POST(6) into the MAIN FRAME(1) and secure with the ADJUSTMENT KNOB(35).
NOTE:
The ADJUSTMENT KNOB(35) should be screwed in tight to make the SEAT POST(6) fit securely
in the MAIN FRAME(1).
Thread the RIGHT PEDAL(32) to the right side of the CRANK(7) as shown. Tighten the pedal securely. Do
the same to attach the LEFT PEDAL(31) to the left side of the CRANK(7).
