Stamina 345 - Page 9

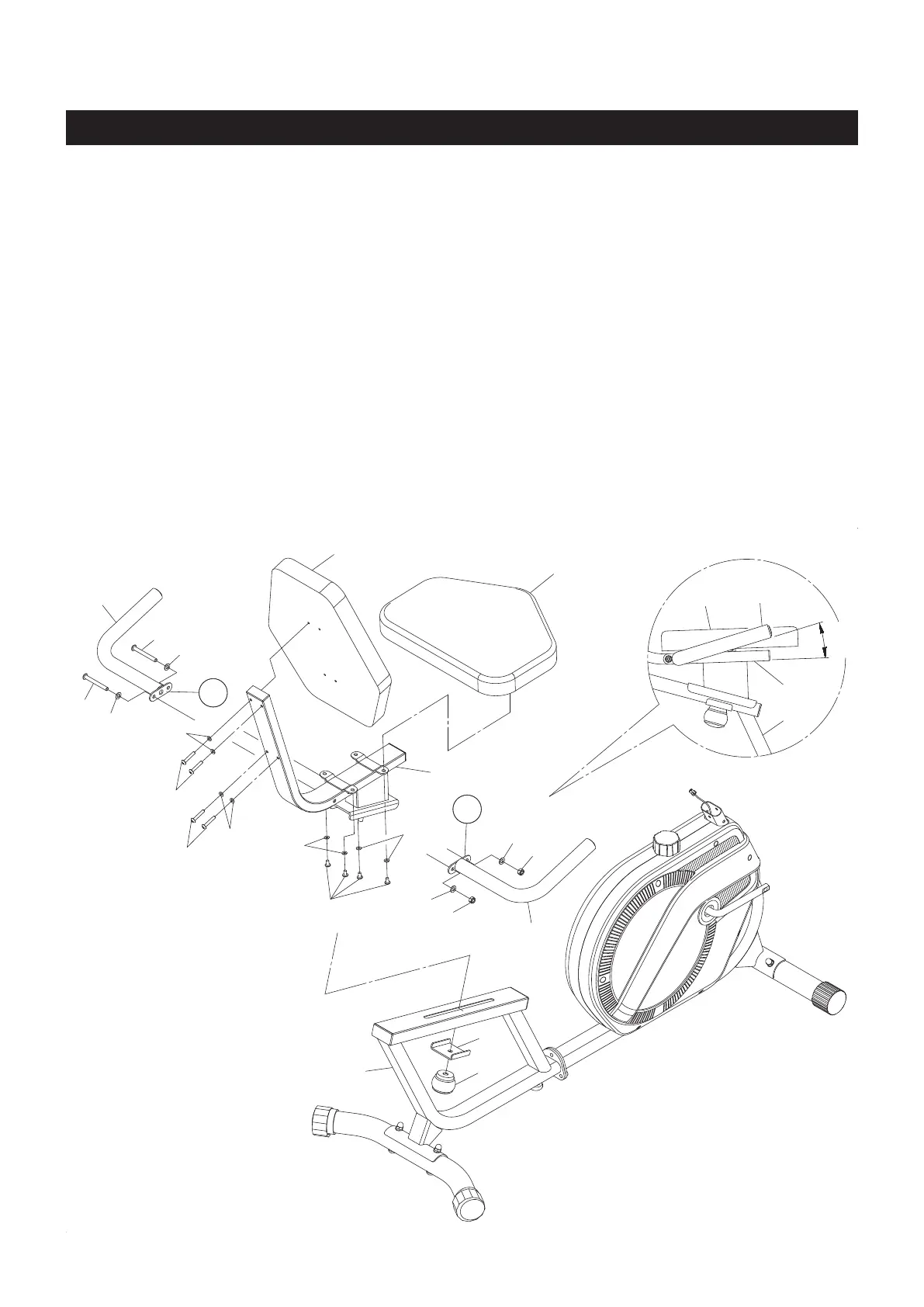

ASSEMBLY INSTRUCTIONS
STEP 4
Attach the SEAT(37) to the SEAT FRAME(65) with ROUND HEAD BOLTS(M6x1x15mm)(48) and
WASHERS(M6)(68).
STEP 5
There is an “R” decal on the RIGHT HANDRAIL(5), and an “L” decal on the LEFT HANDRAIL(4).
Refer to the detail view A. Note the correct position of the HANDRAILS(4, 5), the HANDRAILS(4, 5)
should be assembled with a angle upward. Attach the LEFT and RIGHT HANDRAILS(4, 5) to the SEAT
FRAME(65) with BUTTON HEAD BOLTS(M8x1.25x75mm)(70), WASHERS(M8)(59), and NYLOCK
NUTS(M8x1.25)(60).
STEP 6
Attach the SEAT FRAME(65) to the REAR FRAME(64) with the SUPPORT BRACKET(73) and
LOCKING KNOB(74). Attach the BACK CUSHION(32) to the SEAT FRAME(65) with ROUND HEAD
BOLTS(M6x1x35mm)(67) and WASHERS(M6)(68).
