Assembly The AeroPilates® Pull-Up Bar
Part # Part Name Qty
P1 Pull-Up Bar 1
P2 Post 2
P3 Long Foam Grip 1
P4 Foam Grip 2
P5 Round Plug (25mm) 2
P6 Arc Washer (M8) 2
P7 Bolt, Button Head (M8x1.25x42mm) 2
LIMITED WARRANTY
Products shipped to the manufacturer must be in the original shipping carton with freight prepaid. All expenses for
repairing or replacing the product, including the cost of shipping it back to the original purchaser, will be covered by the
manufacturer. This warranty gives you specic legal rights, and you may have other rights which vary from state to state.
If the product should, for any reason, become defective within 90 days of purchase, the manufacturer will replace
the product once it is returned to the manufacturer. This warranty does not apply to any damage caused by accident,
return transit, alteration, abuse, or misuse. There are no other warranties other than those expressly set forth herein.
This product is warranted to be free from defects in material and workmanship and to be in perfect working order at
the time of purchase. This warranty applies to personal, family or household use. This warranty does not apply to
use in athletic clubs, health clubs, spas, gymnasiums, exercise facilities, and other public or semipublic facilities.
Locking Knob
Pulley Riser
Locking Knob
Left Pulley Hook
Pulley Riser
Rear Frame
Right Pulley Hook
Locking Knob
Locking Knob
Left Pulley Hook
Rear Frame
Right
Pulley Hook

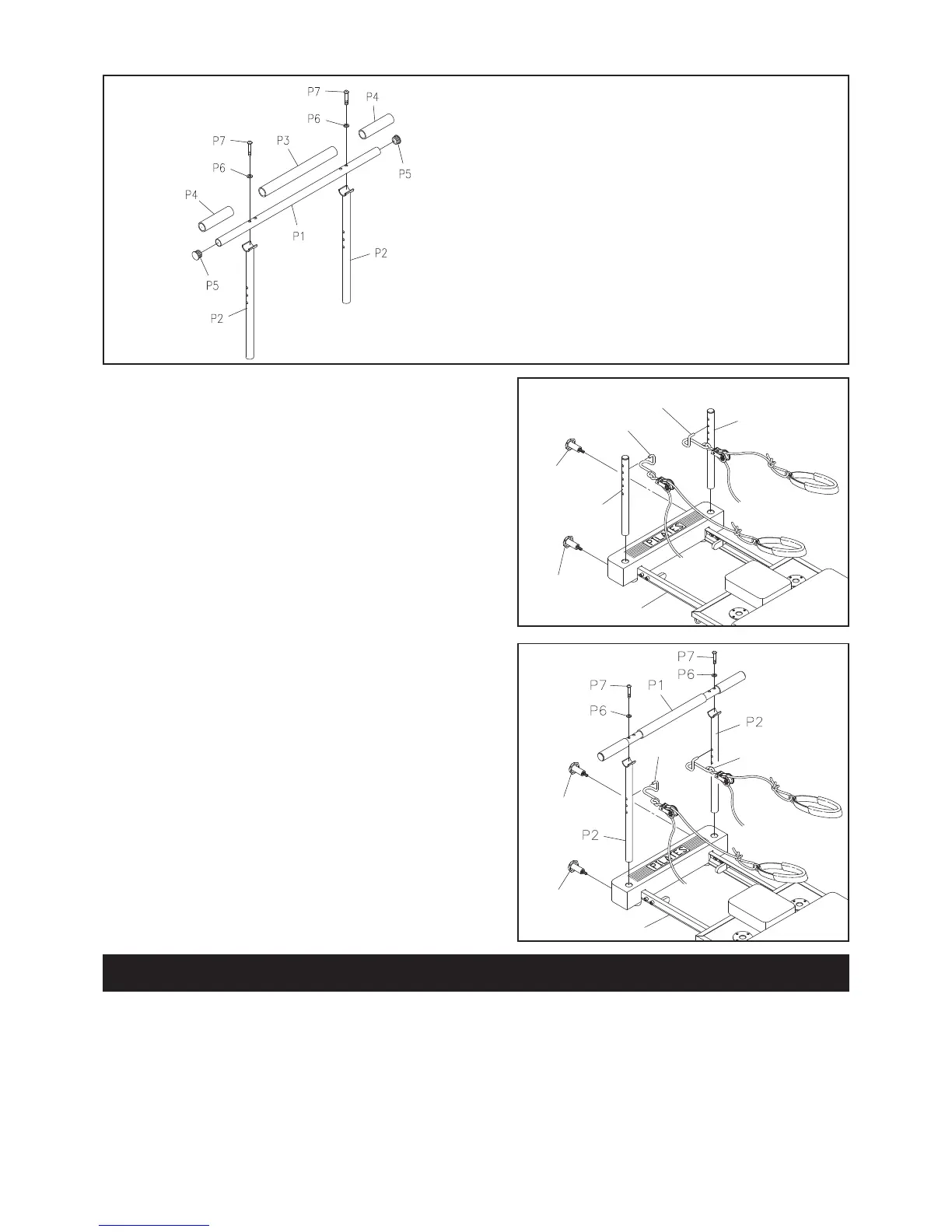

STEP 1
To remove the PULLEY RISERS on your AeroPilates®
reformer, unhook the LEFT and RIGHT PULLEY HOOKS
from the PULLEY RISERS on both sides. Unscrew the
LOCKING KNOBS and remove the PULLEY RISERS.
STEP 2
Fully insert the POSTS(P2) into the mounting holes in the
REAR FRAME. Align the threaded holes in the POSTS(P2)
with the holes in the REAR FRAME and secure with the
LOCKING KNOBS, but don’t tighten the knobs. Attach the
PULL-UP BAR(P1) to the POSTS(P2) with BUTTON HEAD
BOLTS(M8x1.25x42mm)(P7) and ARC WASHERS(M8)
(P6). Tighten the LOCKING KNOBS. Hook the LEFT and
RIGHT PULLEY HOOKS onto the POSTS(P2) on both sides.
NOTE: The PULL-UP BAR(P1) has two sets of mounting
holes. Select the holes that t your AeroPilates®
reformer. For 3-cord reformers, use the set of holes
closest to the center of the PULL-UP BAR(P1). For
4 and 5-cord reformers, use the holes closest to
ends of the PULL-UP BAR(P1).
