Stamina CT2.0 - Step 12: Install Meter

ASSEMBLY INSTRUCTIONS
10

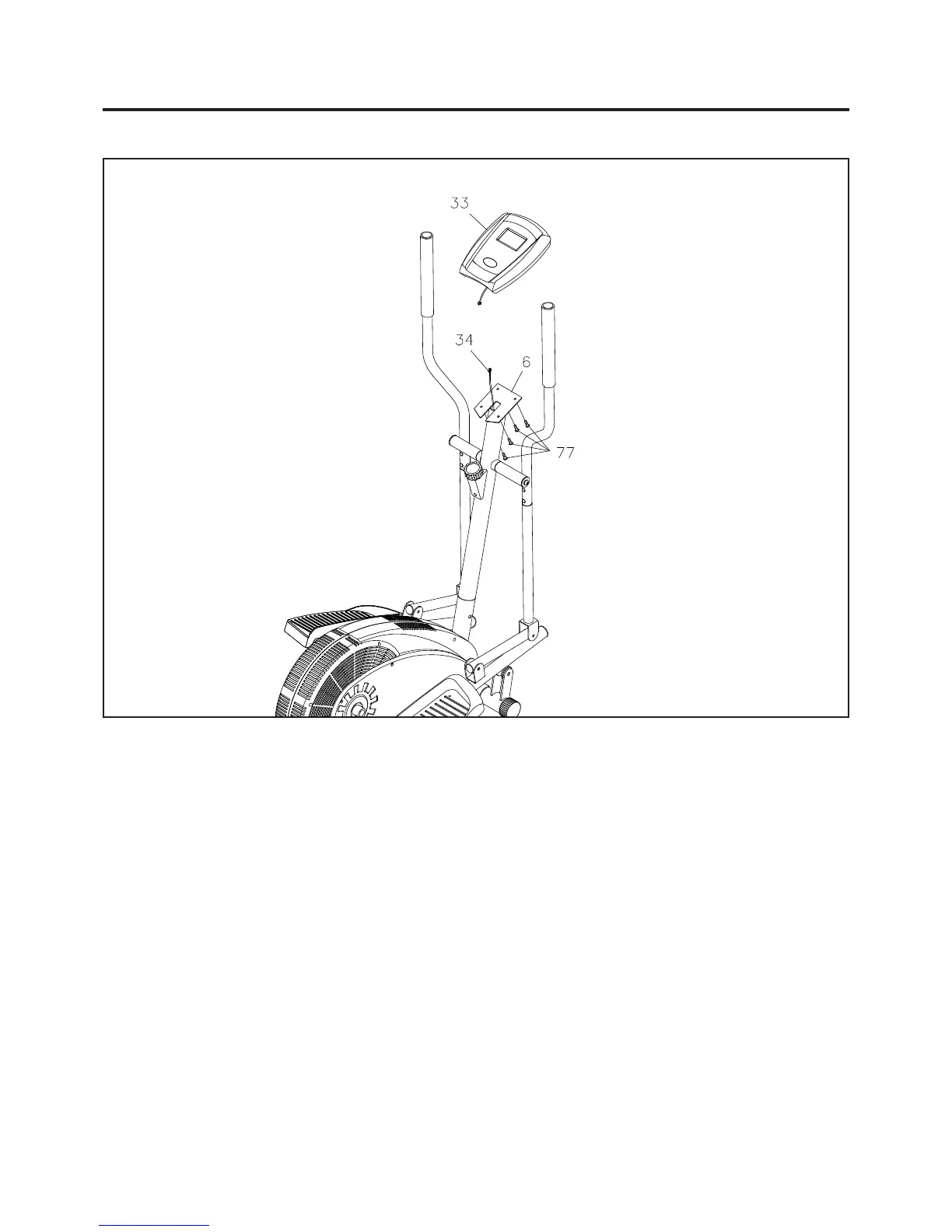

STEP 12
Install two AA batteries into the METER(33). See page 12 for detailed battery installation instructions.
Connect the CONNECTION WIRE(34) to the METER(33). Attach the METER(33) onto the bracket on the
UPRIGHT(6) with ROUND HEAD SCREWS(M5x0.8x15mm)(77).
CAUTION: Be careful not to damage the CONNECTION WIRE(34) when attaching the METER(33).
