ASSEMBLY INSTRUCTIONS
8

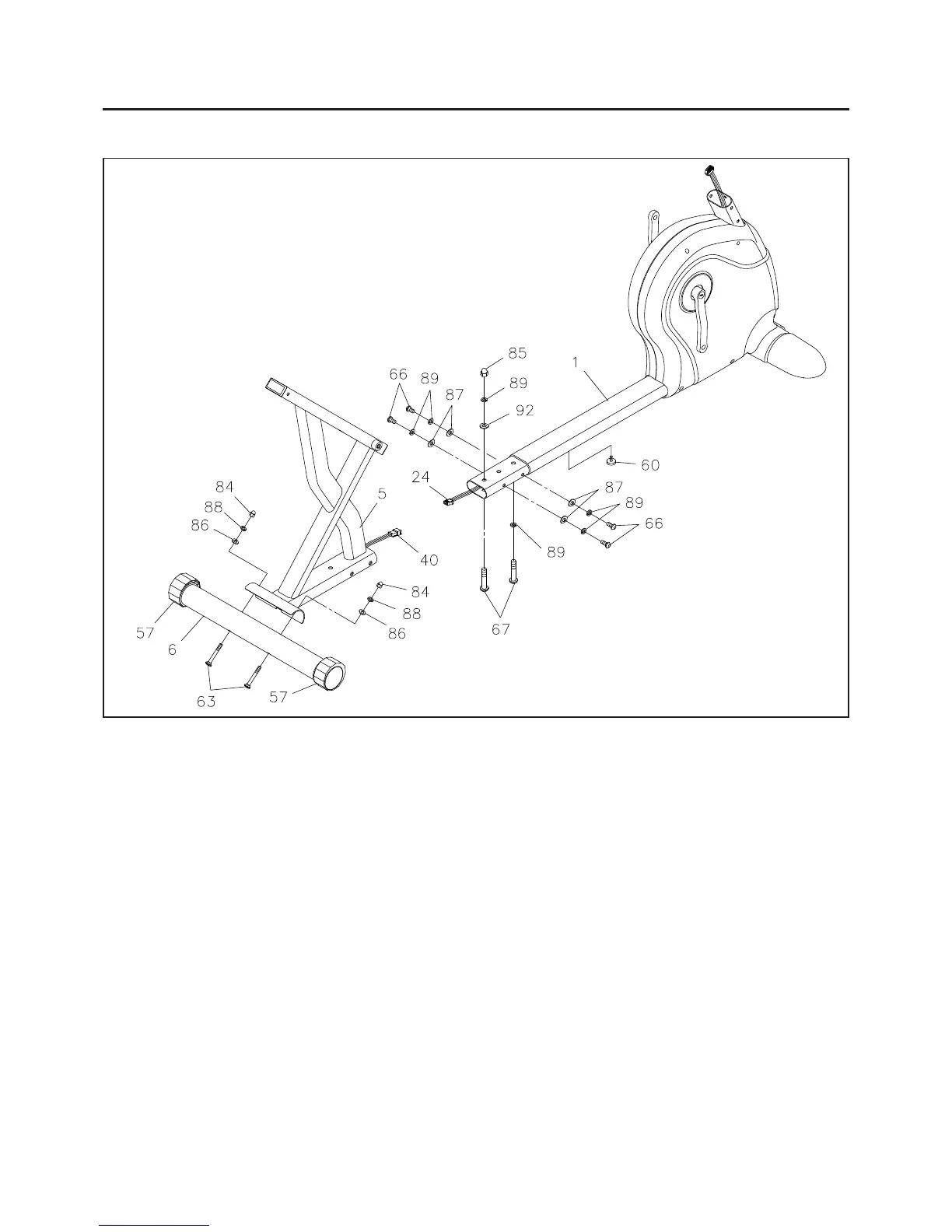

STEP 3
Attach the REAR STABILIZER(6) to the REAR FRAME(5) with CARRIAGE BOLTS(M8x1.25x75mm)(63),
ARC WASHERS(M8)(86), LOCK WASHERS(M8)(88), and ACORN NUTS(M8x1.25)(84).
STEP 4
Screw the STAND(60) all the way up into the bottom of the FRONT FRAME(1). Connect the PULSE
EXTENSION WIRE(40) to the CONTROL WIRE(24). Insert the REAR FRAME(5) onto the FRONT FRAME(1)
and secure with BUTTON HEAD BOLTS(M10x1.5x20mm)(66), BUTTON HEAD BOLTS(M10x1.5x53mm)
(67), ARC WASHERS(M10)(87), LOCK WASHERS(M10)(89), WASHER(M10)(92), and ACORN NUT
(M10x1.5)(85).
NOTE: See page 13 for detailed leveling instructions to prevent rocking.
To Next Page
