ASSEMBLY INSTRUCTIONS
9
A.B.
(Assembled
at the factory)
STEP 5

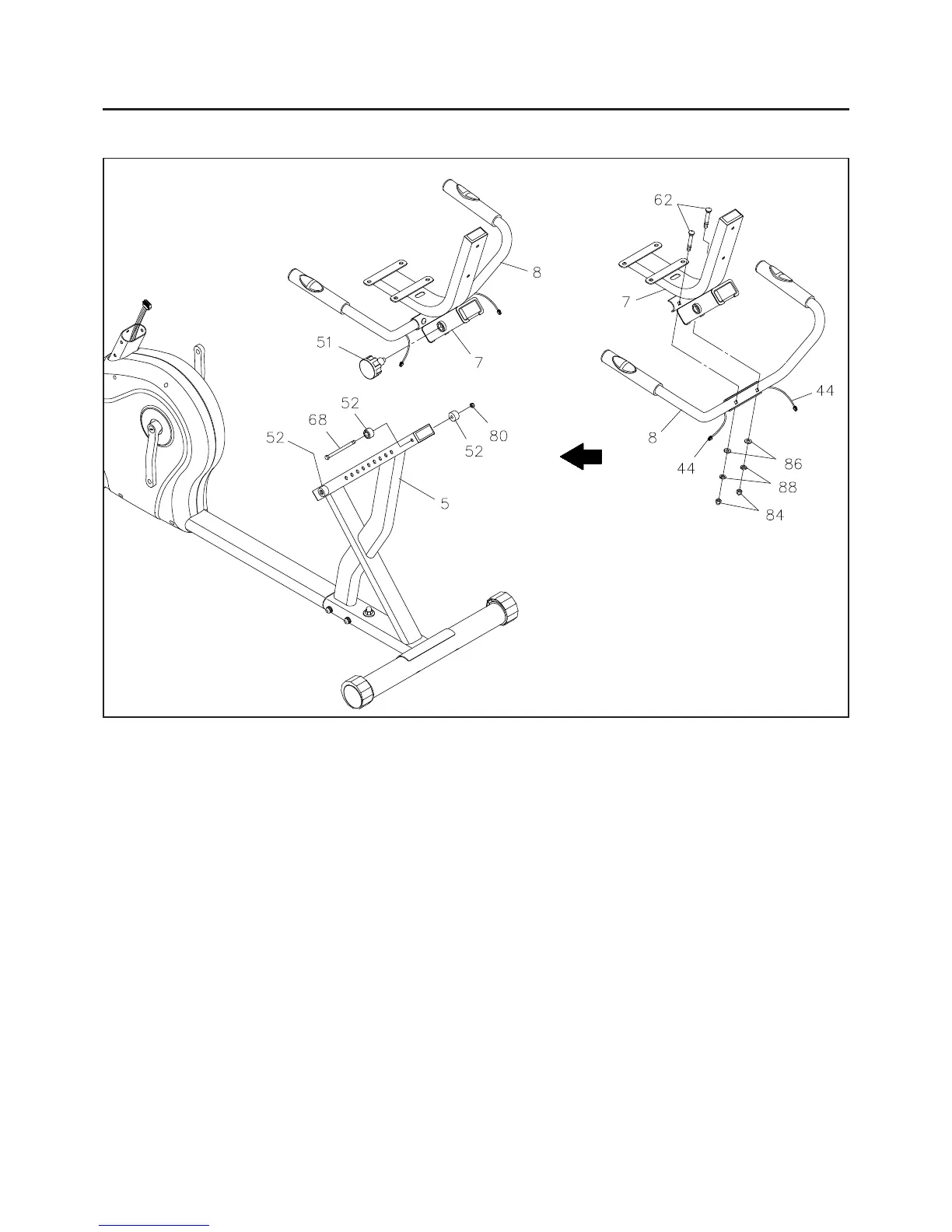

Refer to illustration A. Attach the HANDRAIL(8) to the SEAT FRAME(7) with CARRIAGE BOLTS
(M8x1.25x45mm)(62), ARC WASHERS(M8)(86), LOCK WASHERS(M8)(88), and ACORN NUTS(M8x1.25)
(84).
STEP 6
Refer to illustration B. Slide the SEAT FRAME(7) onto the REAR FRAME(5) and lock in position with the
ADJUSTMENT KNOB(51). Attach the STOPPERS(52) to the top end of the REAR FRAME(5) with HEX
BOLT(M8x1.25x80mm)(68) and NUT(M8x1.25)(80). Also, please verify that the other STOPPERS(52) are
assembled at the factory.
NOTE: Be careful not to damage the PULSE SENSOR WIRES(44) when attaching the HANDRAIL(8) and
the SEAT FRAME(7).
To Next Page
