ASSEMBLY INSTRUCTIONS

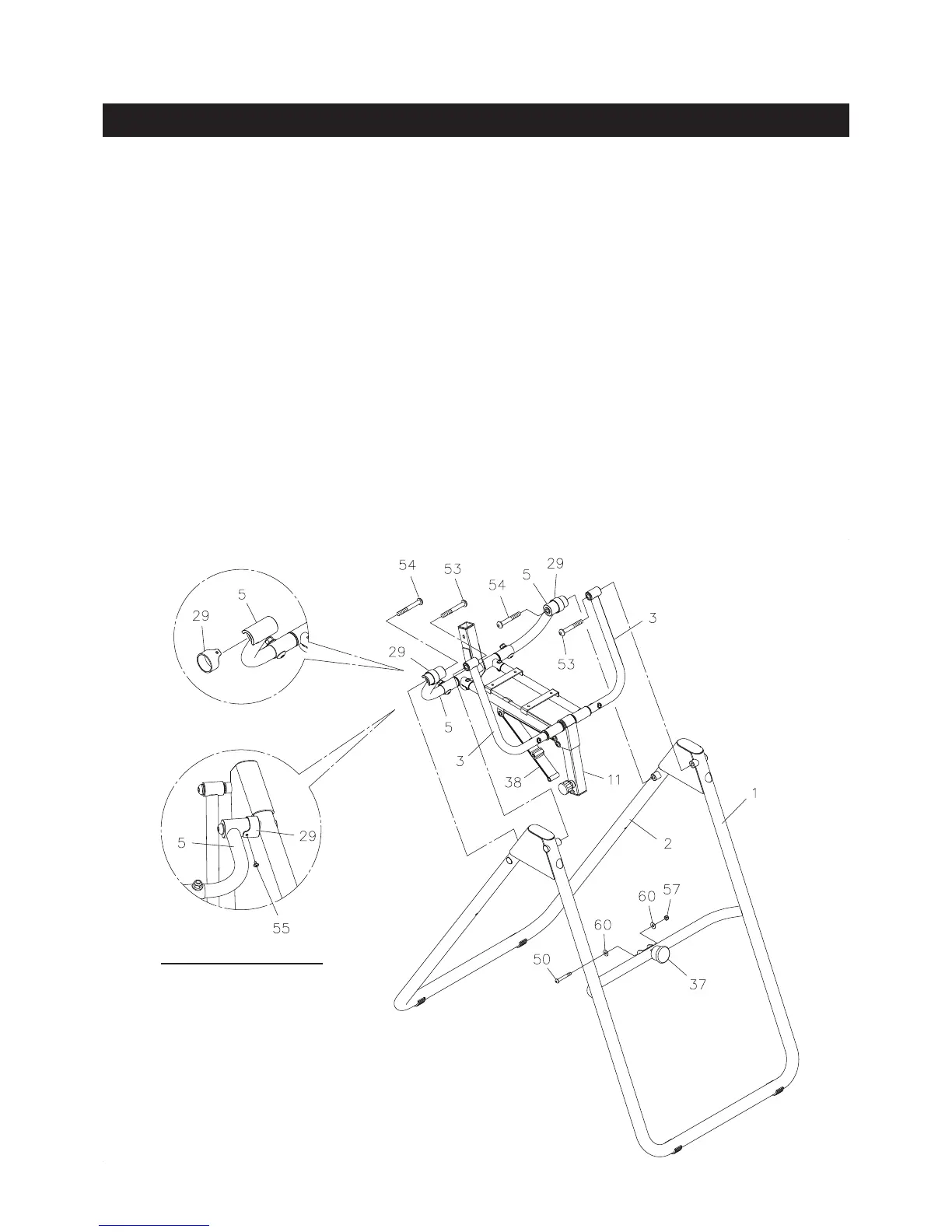

STEP 2
Position the SWING BAR(11) at the front of the BUMPER(37). Attach the FRONT PIVOT ARMS(3) to
the FRONT FRAME(1) with BUTTON HEAD BOLTS(M12x1.75x85mm)(53) on both sides.
STEP 3
Refer to detail drawing A. Slide the RING COVERS(29) over the REAR PIVOT ARMS(5). Then attach
the REAR PIVOT ARMS(5) to the REAR FRAME(2) with BUTTON HEAD BOLTS(M12x1.75x95mm)(54)
on both sides.
STEP 4
Refer to detail drawing B. Align the holes on the RING COVER(29) and the REAR PIVOT ARM(5), then
secure with ROUND HEAD SCREW(M4x6mm)(55). Repeat on other side.
STEP 5
Attach the bottom end of the SECURITY BELT(38) to the bracket on the FRONT FRAME(1) with
BUTTON HEAD BOLT(M8x1.25x55mm)(50), WASHERS(M8)(60), and NYLOCK NUT(M8x1.25)(57).
8
A.
B.
Back-Bottom View
FRONT
NOTE: Do not over tighten BUTTON HEAD BOLTS(53, 54) as the FRONT and REAR PIVOT ARMS(3, 5)
must be able to pivot freely after BUTTON HEAD BOLTS(53, 54) are tightened.
