Installation
Table 1. Installation – General recommendations

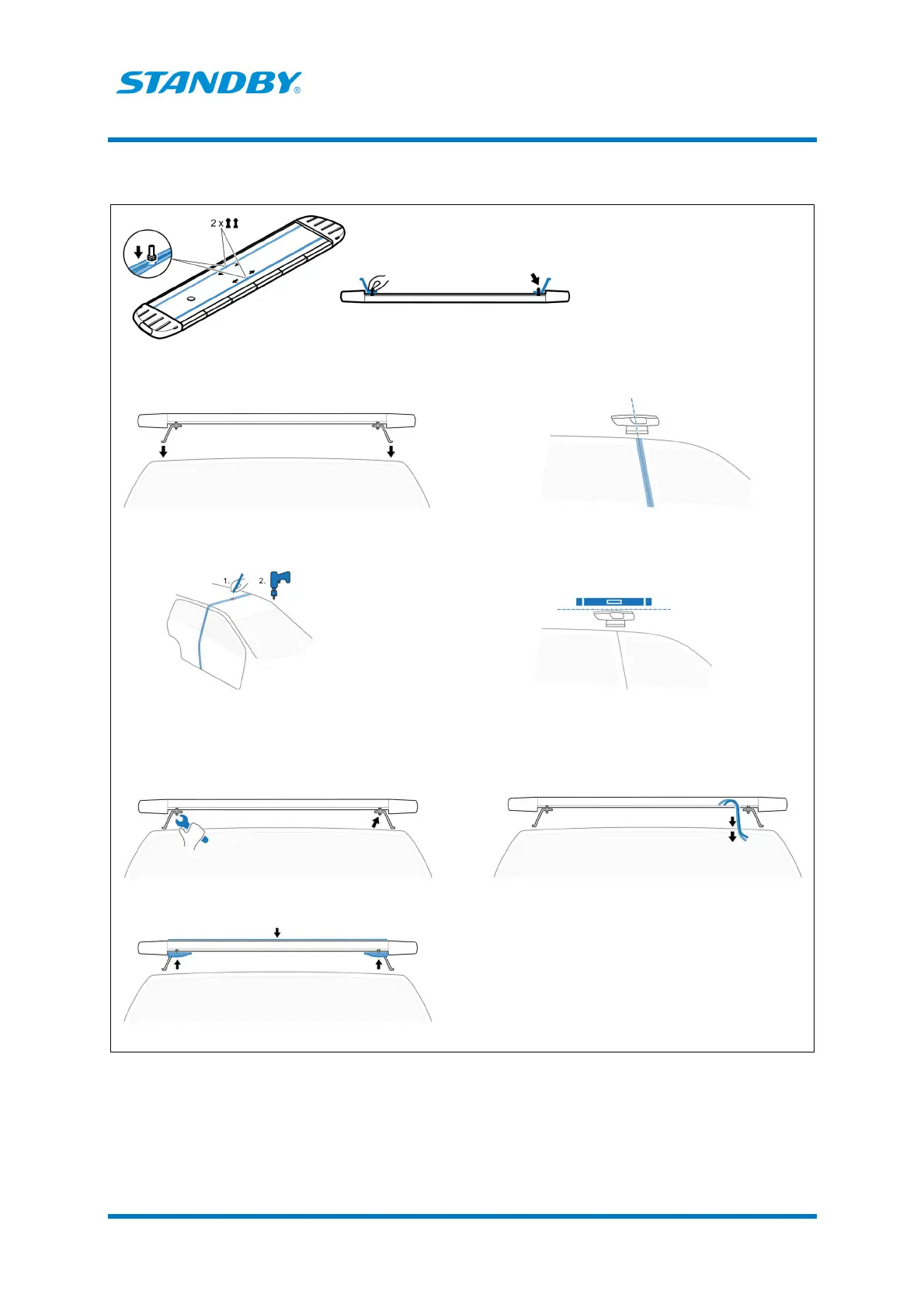

1. Use fixing screws, by hand, to attach the roof brackets on the t
rails of the lightbar bottom. Do not tighten.
2. Pre install lightbar with the brackets on the vehicle roof rails.
The Standby label is placed on the lightbar FRONT part.
3. Aline the lightbar with the B
1. Mark a suitable location for the lightbar cables access
hole.
2. Pre drill its center.
5. Pre install the lightbar and brackets on the
rails. Make sure that the lightbar top line is horizontal.
6. Adjust and tighten the fixing screws (brackets and lightbar).
7. Feed the lightbar cables through the vehicle roof.
8. Fasten the lightbar top and mount the
