CS05/CS06 User Manual ◄ 11
HOSE RECOMMENDATIONS
Oil Flow Hose Lengths Inside Diameter
USE
(Press/Return)
Min. Working Pressure
GPM LPM FEET METERS INCH MM PSI BAR
Certied Non-Conductive Hose - Fiber Braid - for Utility Bucket Trucks
4-9 15-34 up to 10 up to 3 3/8 10 Both 2250 155
Conductive Hose - Wire Braid or Fiber Braid -DO NOT USE NEAR ELECTRICAL CONDUCTORS
4-6 15-23 up to 25 up to 7.5 3/8 10 Both 2500 175
4-6 15-23 26-100 7.5-30 1/2 13 Both 2500 175
5-10.5 19-40 up to 50 up to 15 1/2 13 Both 2500 175
5-10.5 19-40 51-100 15-30 5/8 16 Both 2500 175
5-10.5 19-40 100-300 30-90
5/8 16 Pressure 2500 175
3/4 19 Return 2500 175
10-13 38-49 up to 50 up to 15 5/8 16 Both 2500 175
10-13 38-49 51-100 15-30
5/8 16 Pressure 2500 175
3/4 19 Return 2500 175
10-13 38-49 100-200 30-60
3/4 19 Pressure 2500 175
1 25.4 Return 2500 175
13-16 49-60 up to 25 up to 8
5/8 16 Pressure 2500 175
3/4 19 Return 2500 175
13-16 49-60 26-100 8-30
3/4 19 Pressure 2500 175
1 25.4 Return 2500 175

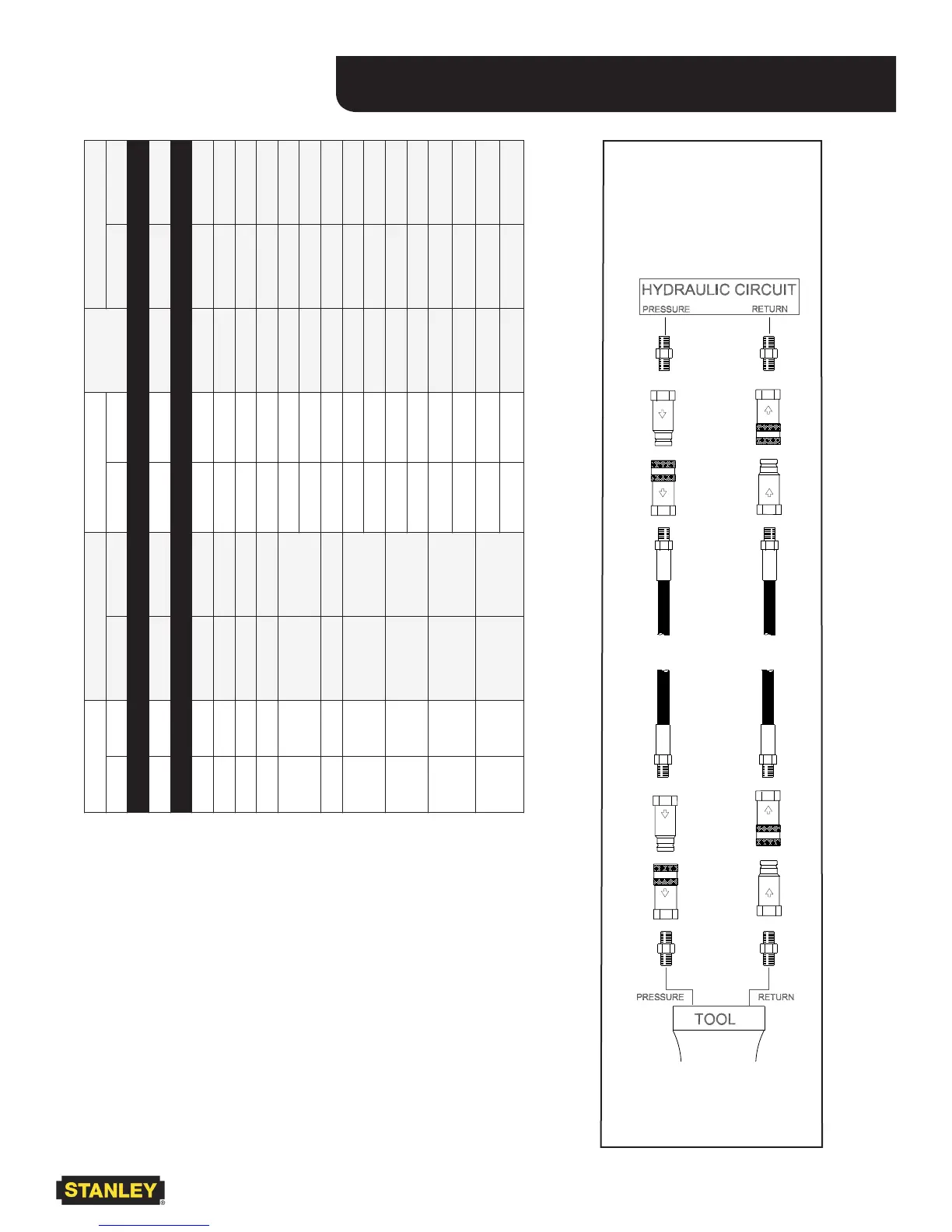

Figure 1. Typical Hose Connections
Tool to Hydraulic Circuit Hose
Recommendations
The chart to the right shows recommended
minimum hose diameters for various hose
lengths based on gallons per minute (gpm)/
liters per minute (lpm). These recommenda-
tions are intended to keep return line pressure
(back pressure) to a minimum acceptable lev-
el to ensure maximum tool performance.
This chart is intended to be used for hydraulic
tool applications only based on Stanley Hy-
draulic Tools tool operating requirements and
should not be used for any other applications.
All hydraulic hose must have at least a rated
minimum working pressure equal to the maxi-
mum hydraulic system relief valve setting.
All hydraulic hose must meet or exceed
specications as set forth by SAE J517.
PRESSURE
RETURN
<<< FLOW
FLOW >>>
