7. Motor and Module Assembly and SA Planetary Carrier
BOM for Motor and Module Assembly and SA Planetary Carrier
MOTOR AND MODULE ASSEMBLY
TRM00127
1
SA MOTOR AND MODULE, PB3400
TP152-519
1
RING GEAR
N112877
1
O RING
TP124-511
1
SA PLANETARY CARRIER
TP143-625
1

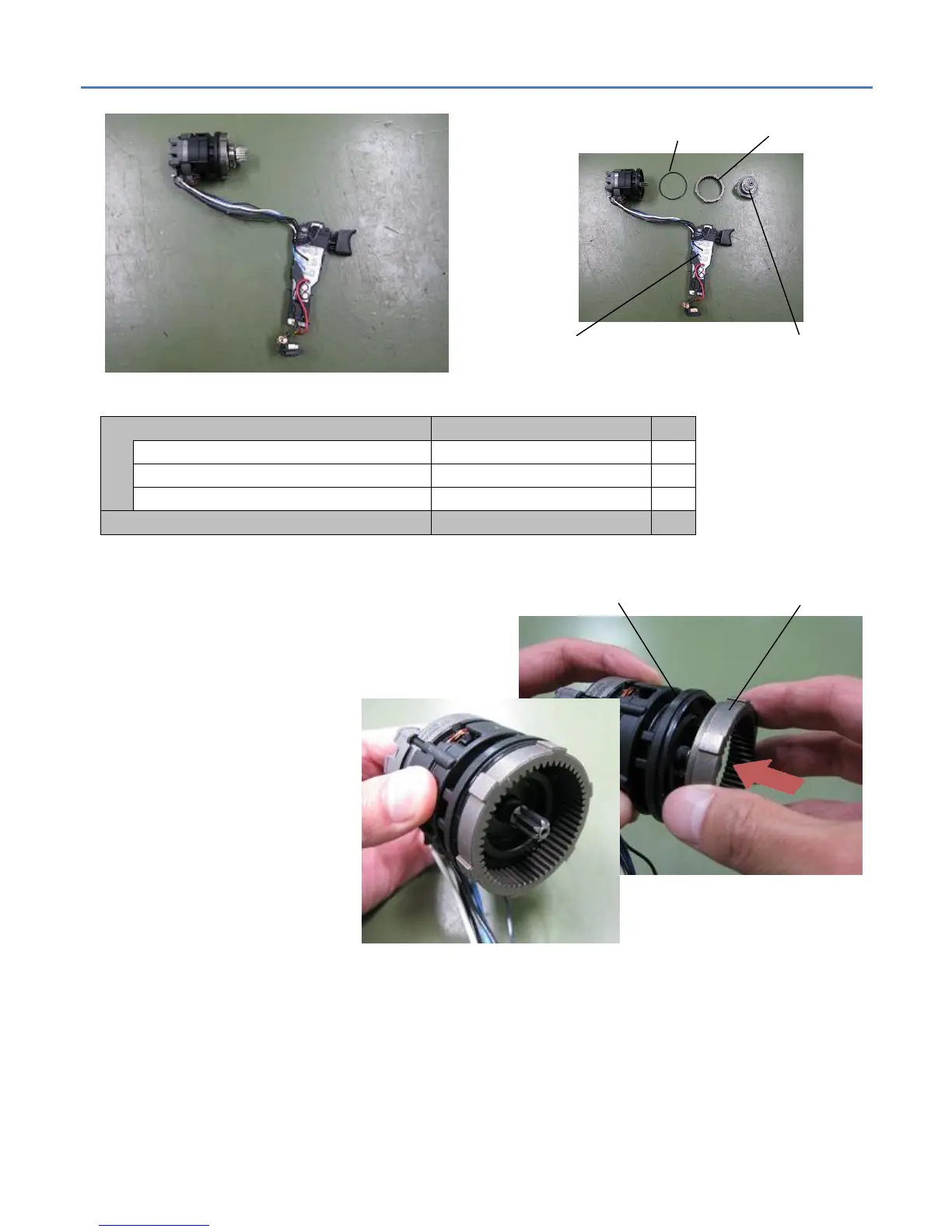

Fit the Ring Gear on to the Motor housing in
the SA Motor and Module assembly
O-ring
SA Motor and Module
Ring Gear
SA Planetary Carrier
Ring Gear
Motor housing
