22

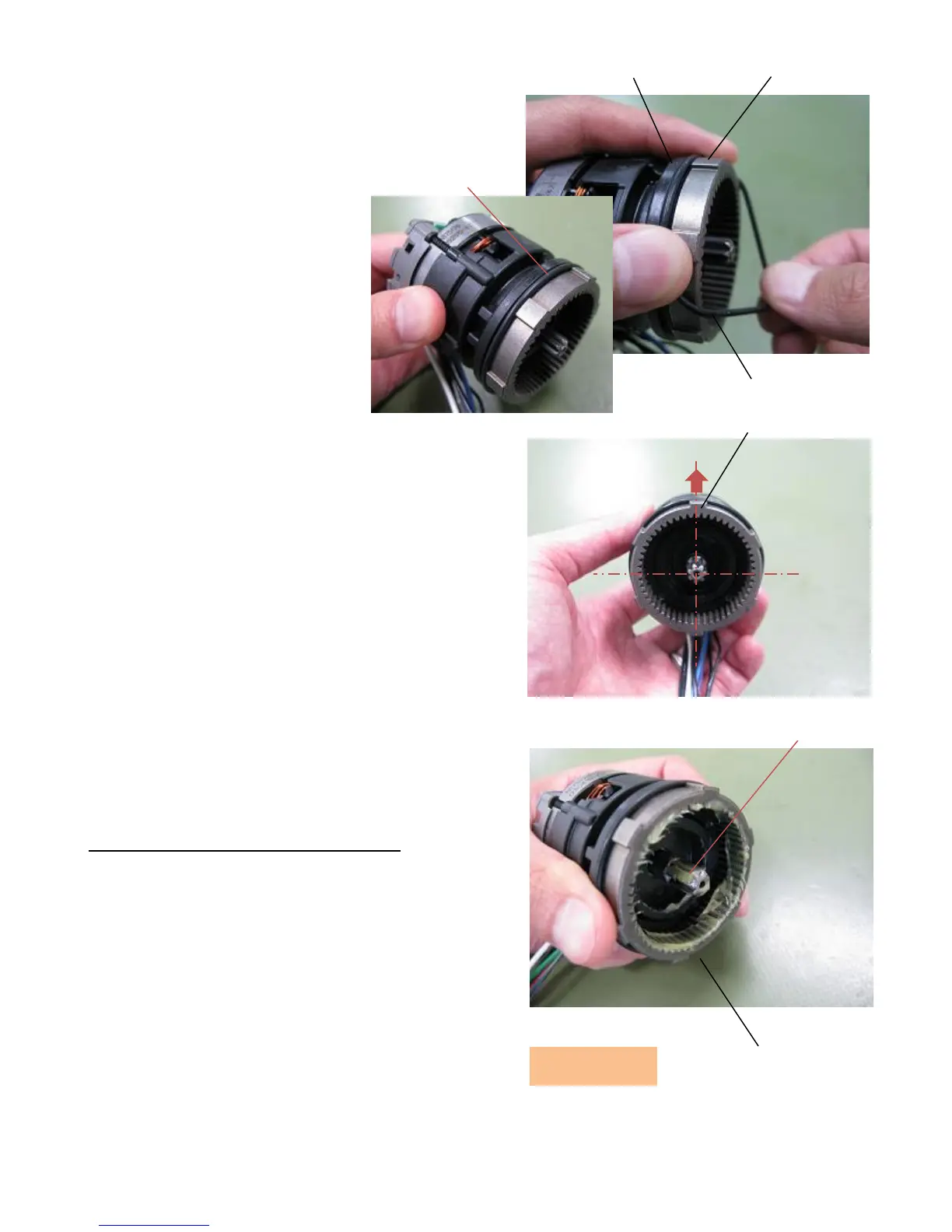

Set the O-ring onto the groove between the
Motor housing and Ring Gear
Align the middle boss on the Ring Gear to the
top side of the Motor Housing
Apply grease to the Ring Gear and Motor
Pinion.
Grease recommended: HIWIN G01
Ring Gear
Motor housing
O-ring
O-ring
Apply grease
Ring Gear
Motor Pinion
Boss on Ring gear
Top side
