9. Main Unit Assembly
BOM for Main Unit Assembly
MAIN UNIT ASSEMBLY
NA
1
MOTOR AND MODULE ASSEMBLY AND SA
PLANETARY CARRIER
NA
1
SA HOUSINGS
TP142-628
1
FRONT UNIT ASSEMBLY
TP143-683
1
SA SECOND SHAFT
TP143-620
1
MANDREL PLATE
TP144-681
1
SHUTTER GUIDE SLEEVE
TP114-676
1
COLLECTOR SHUTTER LOCK SPRING
TP114-677
1
COLLECTOR LOCK
TP124-532
1
COLLECTOR SHUTTER
TP143-627
1
CROSS RECESSED PAN HEAD TAPPING SCREW
TP124-513
14
3x16L
CROSS RECESSED PAN HEAD TAPPING SCREW
TP124-514
2
3x20L

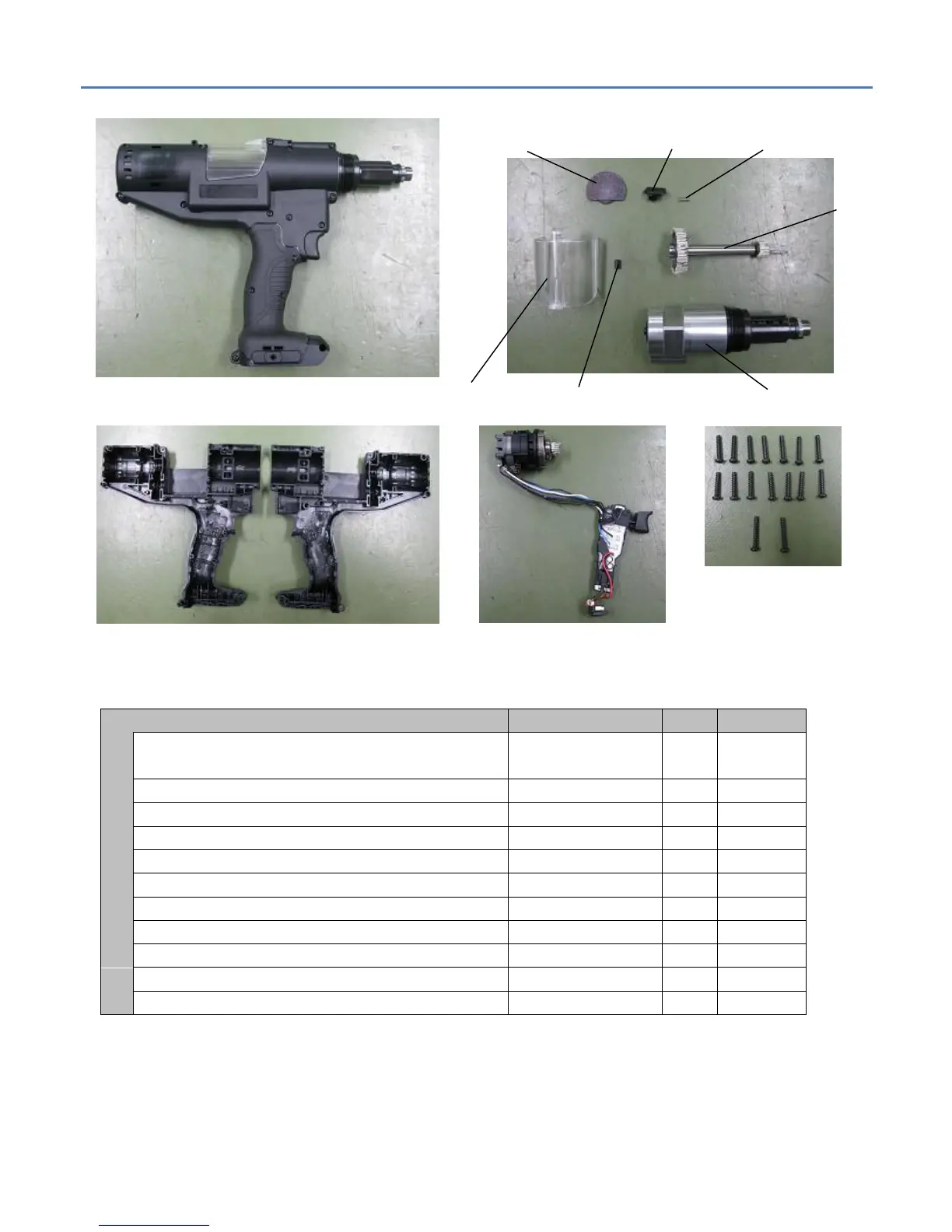

Collector Lock
Shutter Guide Sleeve
Collector Shutter
Lock Spring
Front Unit Assembly
Mandrel Plate
SA Second
Shaft
Collector Shutter
Cross Recessed Pan
Head Tapping Screw
SA Housings
Motor and Module Assembly
SA Planetary Carrier
