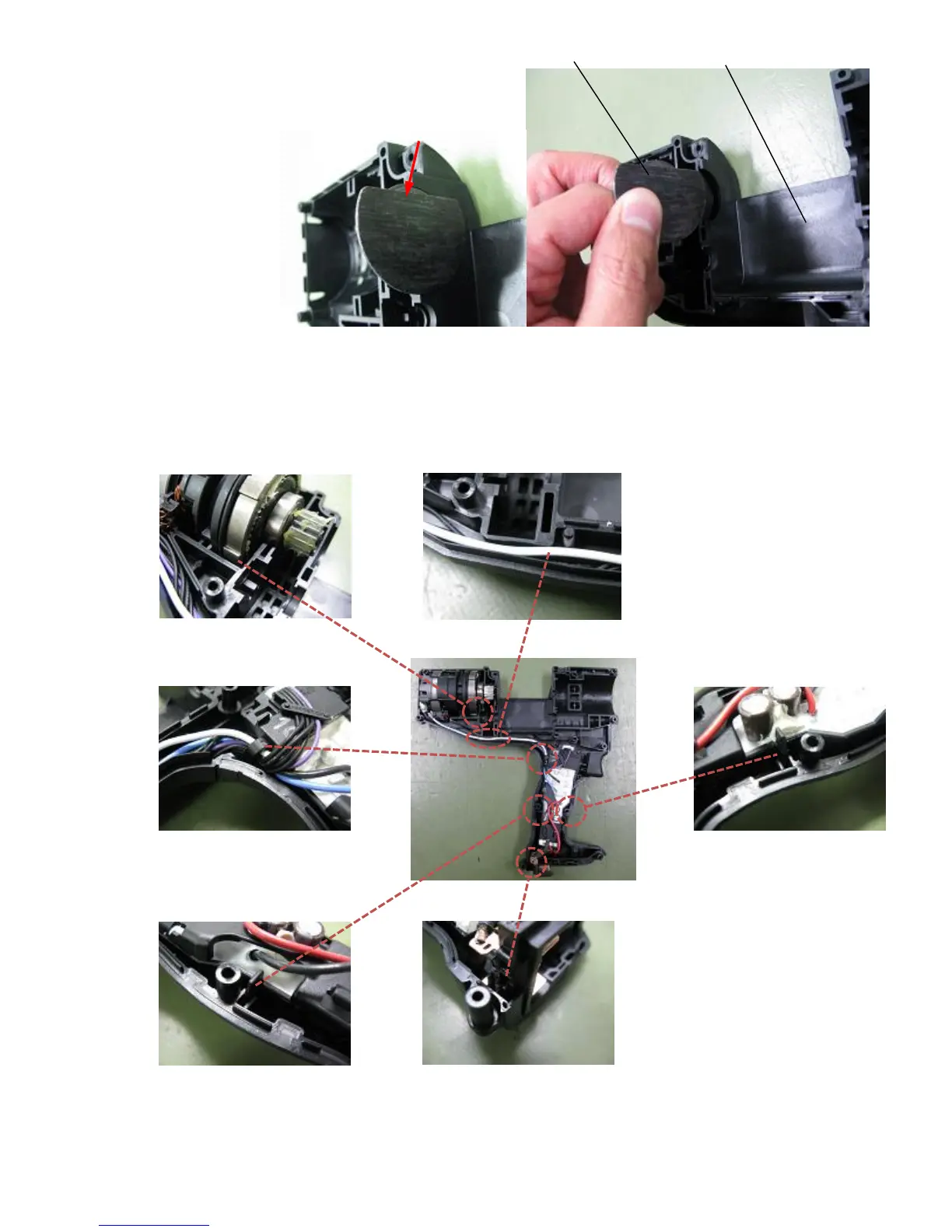

Set the Mandrel Plate into the groove of the
SA Housing (left side).
Set the Motor and Module Assembly, with the SA Planetary Carrier, in to the SA
Housing (left side).
Check the following pictures to ensure a clean fit inside the SA Housing.
Mandrel Plate
Upper side
Ring Gear is
fitted correctly
Housing (Left side)
Wires are fitted inside
this harness
Wire harnesses
are set correctly
Boss is set in this slit
Boss is set in this slit
Battery terminal is set correctly
