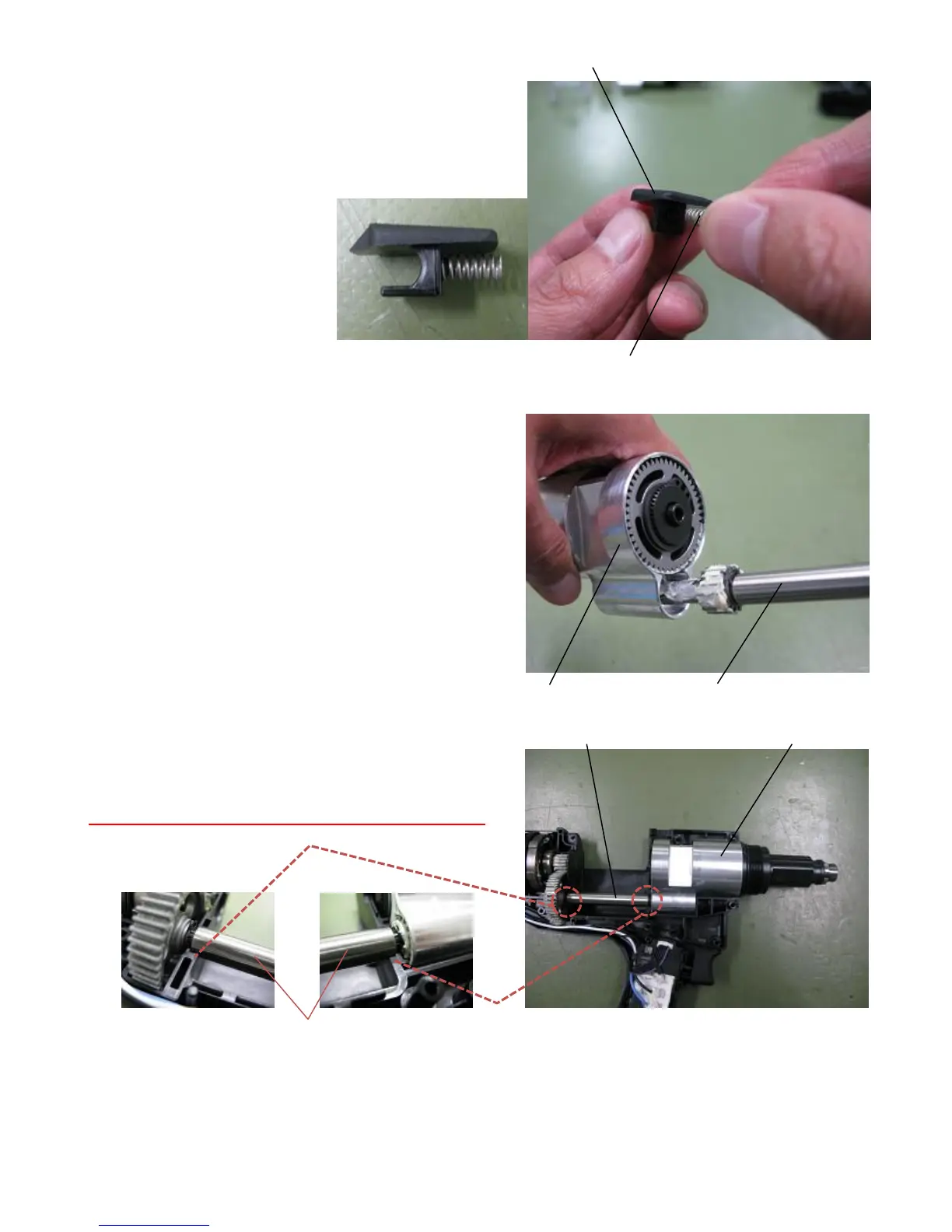

Set the Collector Shutter Lock Spring on the
Boss of the Collector Lock.
Insert the SA Second Shaft into the hole on the
Gear Housing for the Front Unit Assembly.
Fit the Front Unit Assembly with the SA Second
Shaft in to the SA Housing (left side).
Be careful on the position of the Pipe Bridge.
Collector Lock
Collector Shutter Lock Spring
SA Second Shaft
Gear Housing
SA Second shaft
Front Unit Assembly
Pipe Bridge
