Stanley PB3400 - Page 28

27

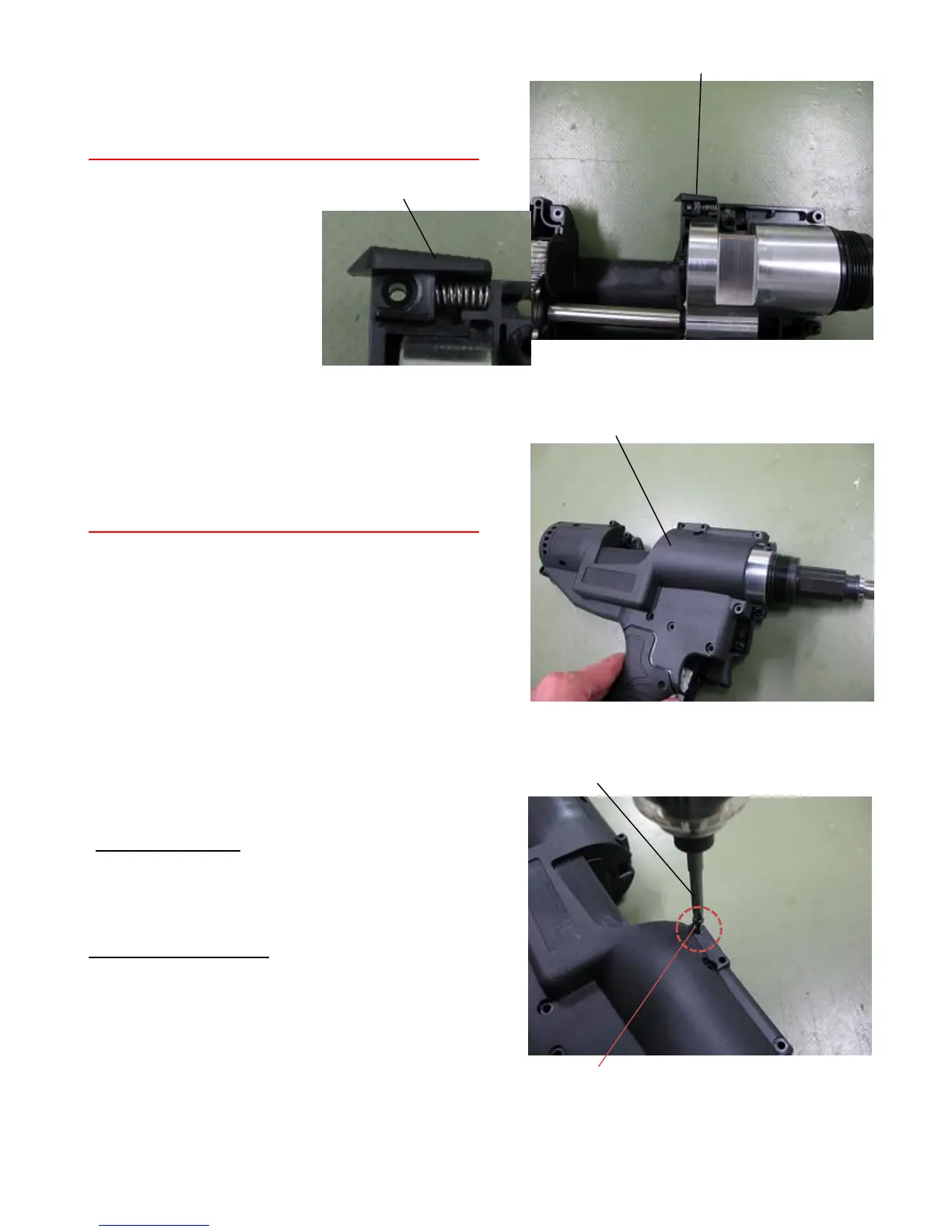

Fit the Collector Lock, with spring, on to the SA
Housing (left side).
Be careful that the Spring does not drop off.
Place the SA Housing (right side) over the SA
Housing (left side).
Be careful that the Spring does not drop off.
Tighten the Cross Recessed Tapping Screw
(TP124-514, 3-20) in to the position of the
Collector Lock by using a screw driver (electric
recommended).
Set Torque: 0.95Nm
Collector Lock with spring
Collector Lock with spring
SA Housing (right side)
Electric Screw Driver etc.
Tapping Screw (TP124-514, 3-20)
For Collector Lock
