28

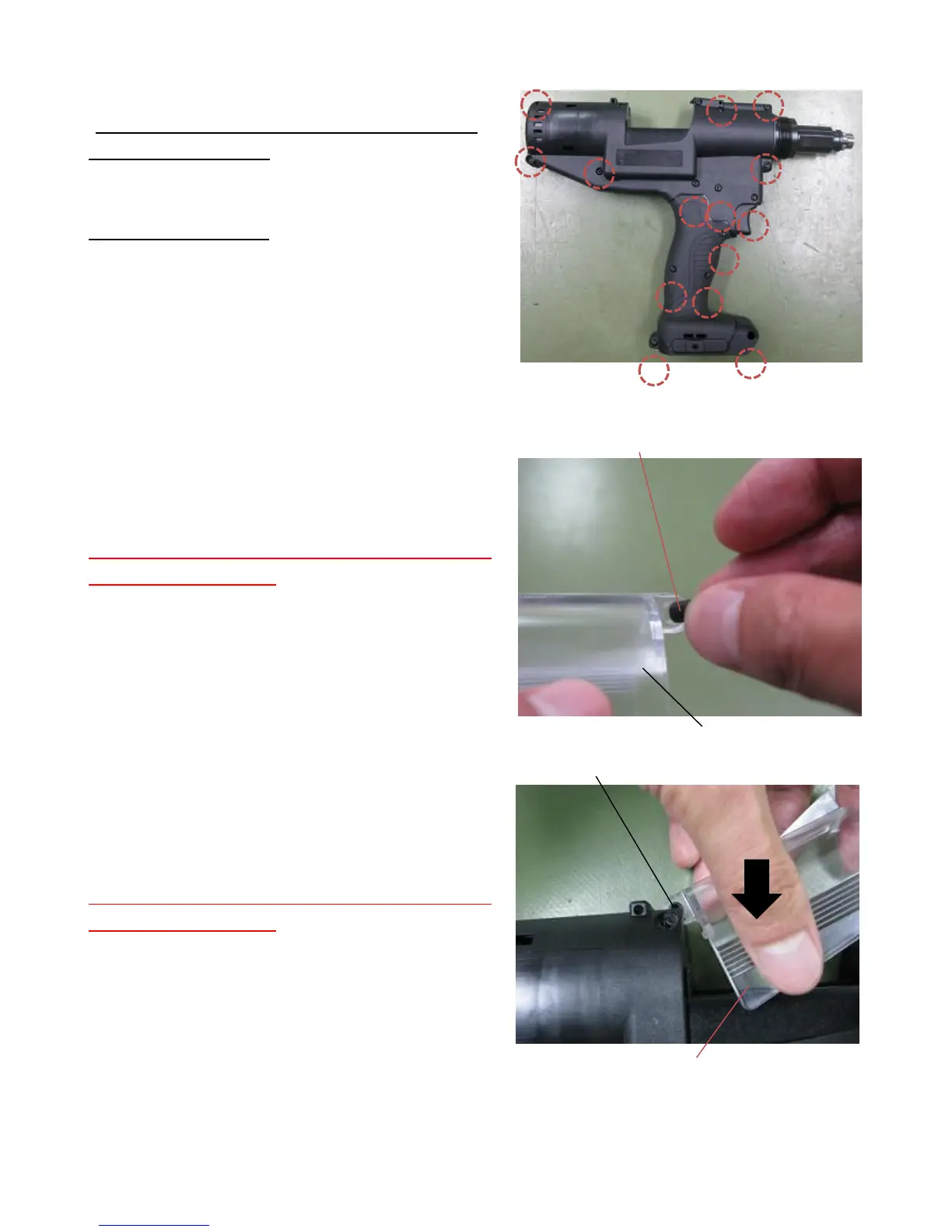

Tighten the Cross Recessed Tapping Screws
(TP124-513 3-16) to the 14 places shown in
the adjacent picture by using a screw driver
(electric recommended).
Set Torque: 0.95Nm
Insert Shutter Guide Sleeve into the hole of the
Collector Shutter.
Be careful that the Shutter Guide Sleeve does
not take off the hole.
Set the Collector Shutter, with the Shutter
Guide Sleeve, on to the SA Housing.
Be careful that the Shutter Guide Sleeve does
not take off the hole.
Places for Tapping Screw (TP124-513, 3-16)
To Next Page
