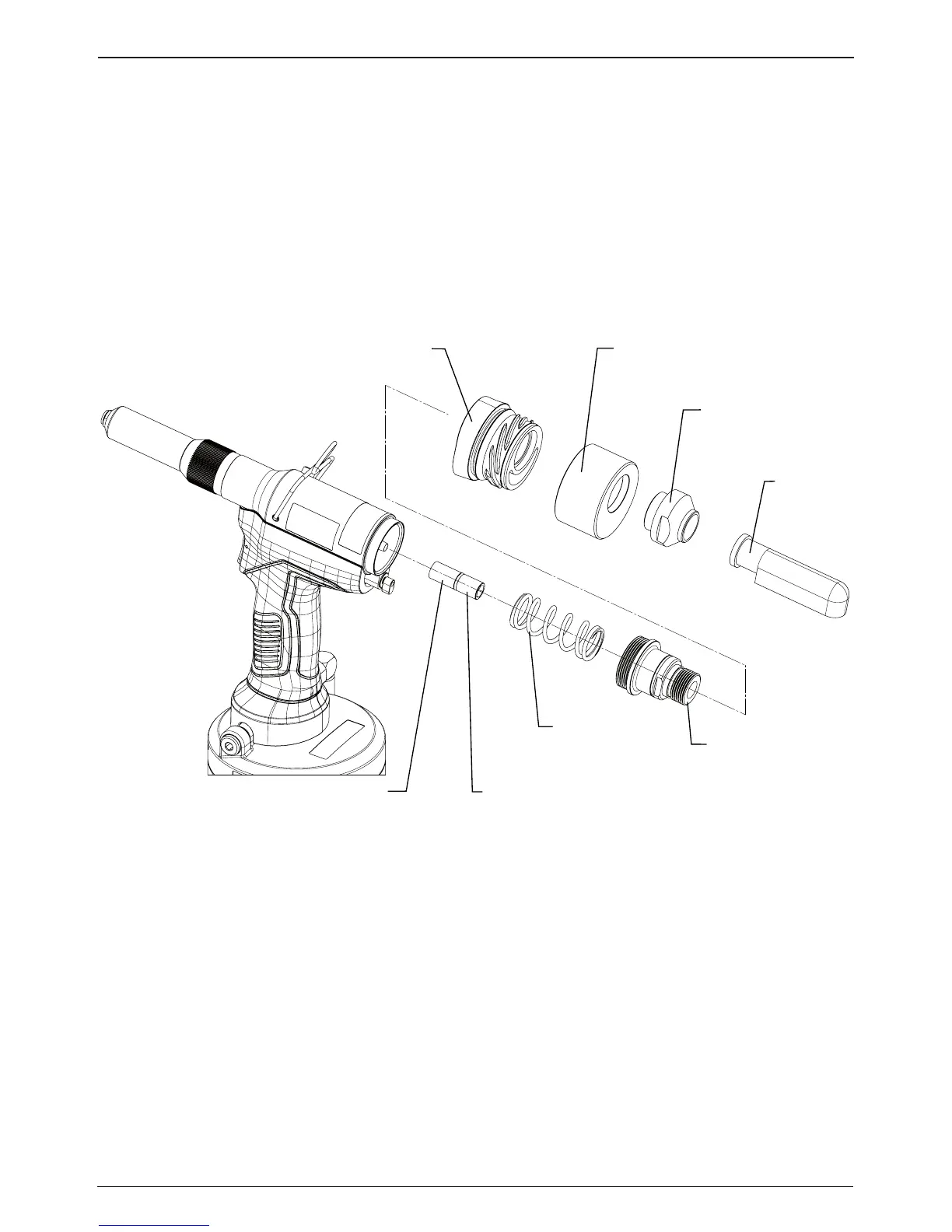

• The air supply must be disconnected.
• If vacuum extraction is not required when using the Pin Tail Deector, attach the Vacuum Shut-o Nozzle
(4) to the Piston (76003-02120 or 76004-02120).
• Install the Spring (76003-02030).
• Attach the End Cap Assembly (76003-05110), including ORing (07003-00508).
• Assemble the Collector Adapter (76003-05104), including ORing (07003-00530).
• Place the Collector Adapter Cover (3) over the Collector Adapter (76003-05104).
• Insert the Pin Tail Deector (1) into the Deector Retaining Nut (2) so that the ange on the PinTail De-
ector (1) sits within the internal groove of the Deector Retaining Nut (2).
• Install Deector Retaining Nut (2), together with the Pin Tail Deector (1), on the End Cap Assembly
(76003-05110). Ensure the end face of the Collector Adapter Cover (3) is secure against the mating face of
the Collector Adapter (76003-05104).
6
D
C
B
A
E
F
G
H
E
A
B
C
D
F
5
4
3
2
1
7
8
9
10
11
12
1
2
3
4
5
6
7
8
G
WEIGHT
PART
NUMBER
PART
DESCRIPTION
EN 20286/BS 1916-H11
SURFACE
TEXTURE
DRILL
ANGULAR
1/2 DEGREE
N8
DECIMAL
0.13mm
INCH DIMENSIONS IN PARENTHESES
REMOVE ALL BURRS AND SHARP EDGES
DIMENSIONS IN mm UNLESS STATED
LUBRICATION
This document is the property of Avdel UK Limited
and is issued on the express terms that it is to be
treated as private and confidential and is not to
be communicated to any other person.
All patents, manufacturing and design rights are
reserved by Avdel UK Limited.
Avdel UK Limited
Pacific House, 2 Swiftfields,
Watchmead Industrial Estate,
Welwyn Garden City,
Hertfordshire, AL7 1LY
Registered in England: No. 315076
C.N.
ISSUE
DRAWING
DESCRIPTION
SURFACE TREATMENT
DRAWN
DATE
HEAT TREATMENT
LIMITS
UNLESS
STATED
MATERIAL
Sheet:
Tool Assy - stem deflector
A2
1 of 1
1:1
DRAWING
NUMBER
Scale:
Revision:
Size:
DO NOT SCALE
