PREPARING THE BASE TOOL TO ACCEPT SWIVEL HEAD EQUIPMENT
IMPORTANT - READ THE SAFETY WARNINGS LISTED IN THE PROSET XT3 AND PROSET XT4 INSTRUCTION
MANUAL CAREFULLY BEFORE PUTTING INTO SERVICE.
IMPORTANT - THE AIR SUPPLY MUST BE TURNED OFF OR DISCONNECTED BEFORE FITTING OR
REMOVING THE SWIVEL HEAD NOSE ASSEMBLIES.

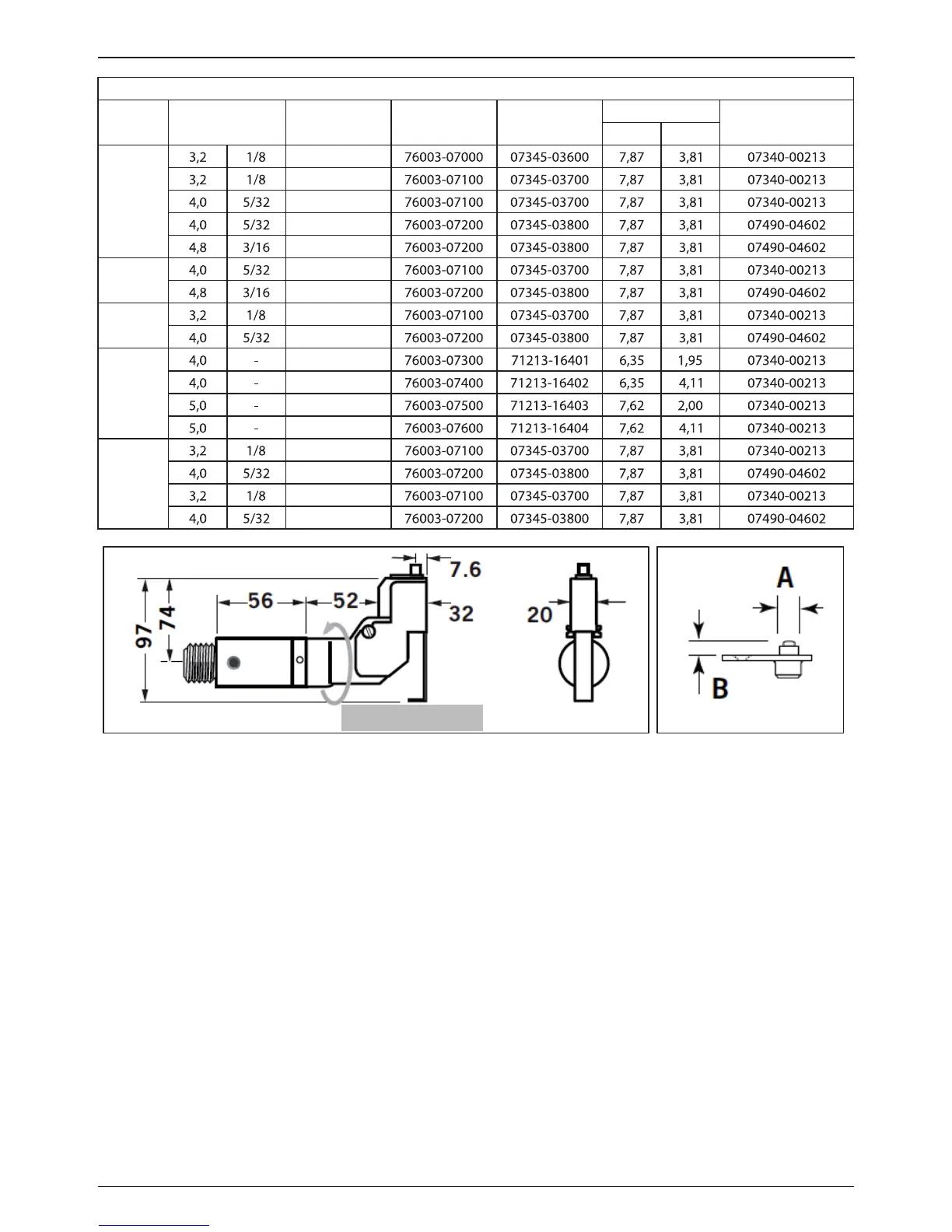

Refer to g. 5 and g. 6 and the table on page 10.
• The air supply must be disconnected.
• Rotate the Stem Collector (76003-05200) anti-clockwise and remove from the Collector Adapter (76003-
05104).
• Unscrew and remove the Deector Retaining Nut (76003-05102) together with the Stem Deector (76003-
05101).
• Place the Collector Adapter Cover (27) over the Collector Adapter (76003-05104) and then install Safety
Cap (26) until the end face of the Collector Adapter Cover (27) is secure against the mating face of the
Collector Adapter (76003-05104).
• If necessary, remove the complete Nose Assembly (76003-15000) as described on page 9 of the Proset
XT3 and Proset XT4 instruction manual.
To Next Page
