Wireless Tag Reader Installation Guide
Wireless Tag Reader Notes
Wireless Tag Reader Specifications
Part Number 804A5901
Operating Temperature 32° F to 131° F (0° C to 55° C)
Relative Humidity 0-90% RH non-condensing
Dimensions (W x H x D) 9.0 in. x 1.7 in. x 4.1 in. (22.8 cm x 4.3 cm x 10.4 cm)
including mounting plate
Weight 17.6 oz (500 g), including mounting plate
Power Requirement 300 mA @ 12 VDC
Detection Zone 1 ft. to 6 ft. (0.3 m to 1.8 m)
Inputs 1 dry contact input
Operating Frequencies Input: 433
.92 MHz
Output: 125 kHz (detection field)
433.92 MHz (link to network)
Network Connection Uses an RF link at 433.92 MHz to send to RFID
Sub-Ne
twork. Network wires are NOT required.
CE Compliant Yes
Address DIP Switch Settings

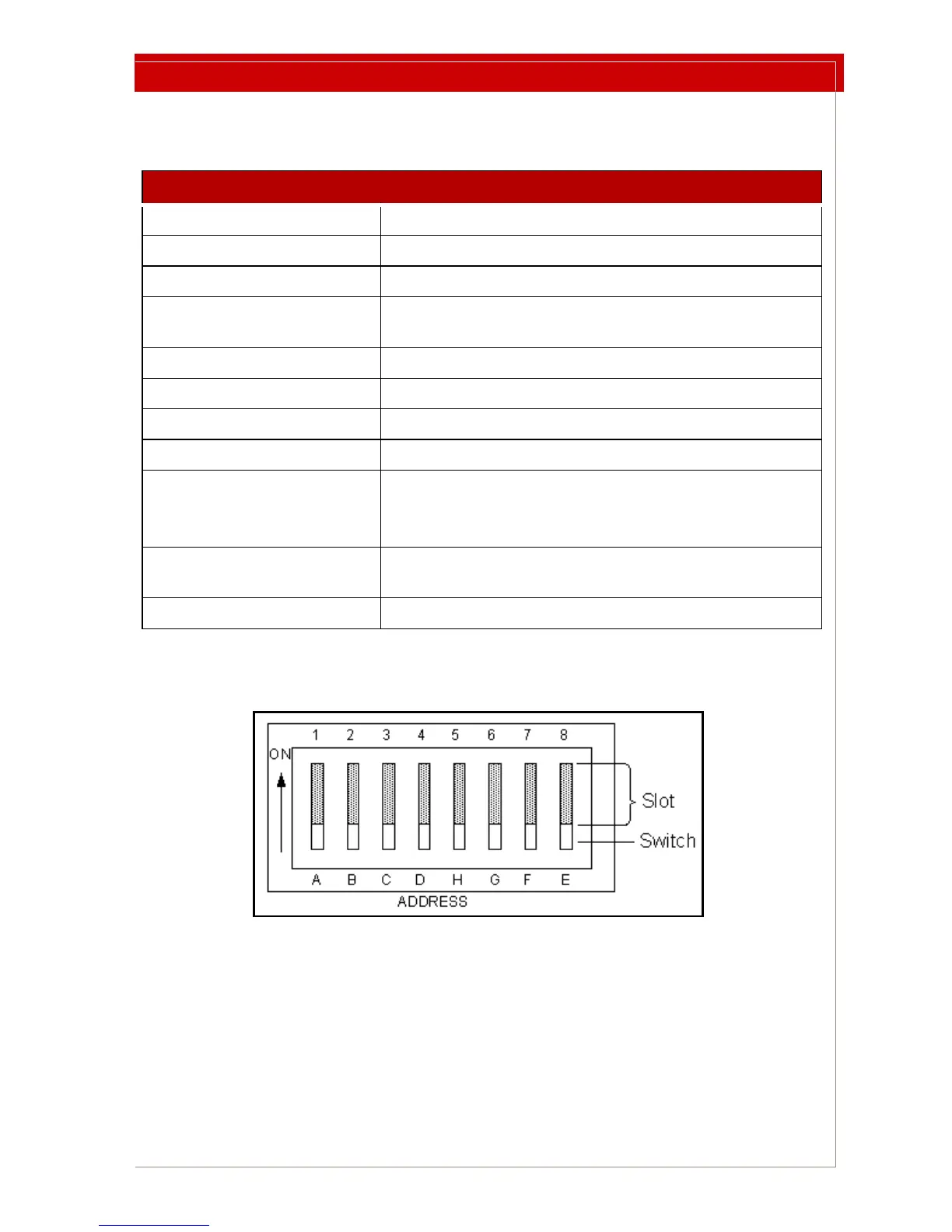

Figure 8: Address DIP Switch
In the switch settings table, starting on the next pag
e, the left hand column contains the
address. The remaining columns, 1 2 3 4 5 6 7 8, show the switch positions: A black
square represents the
ON position.
