9

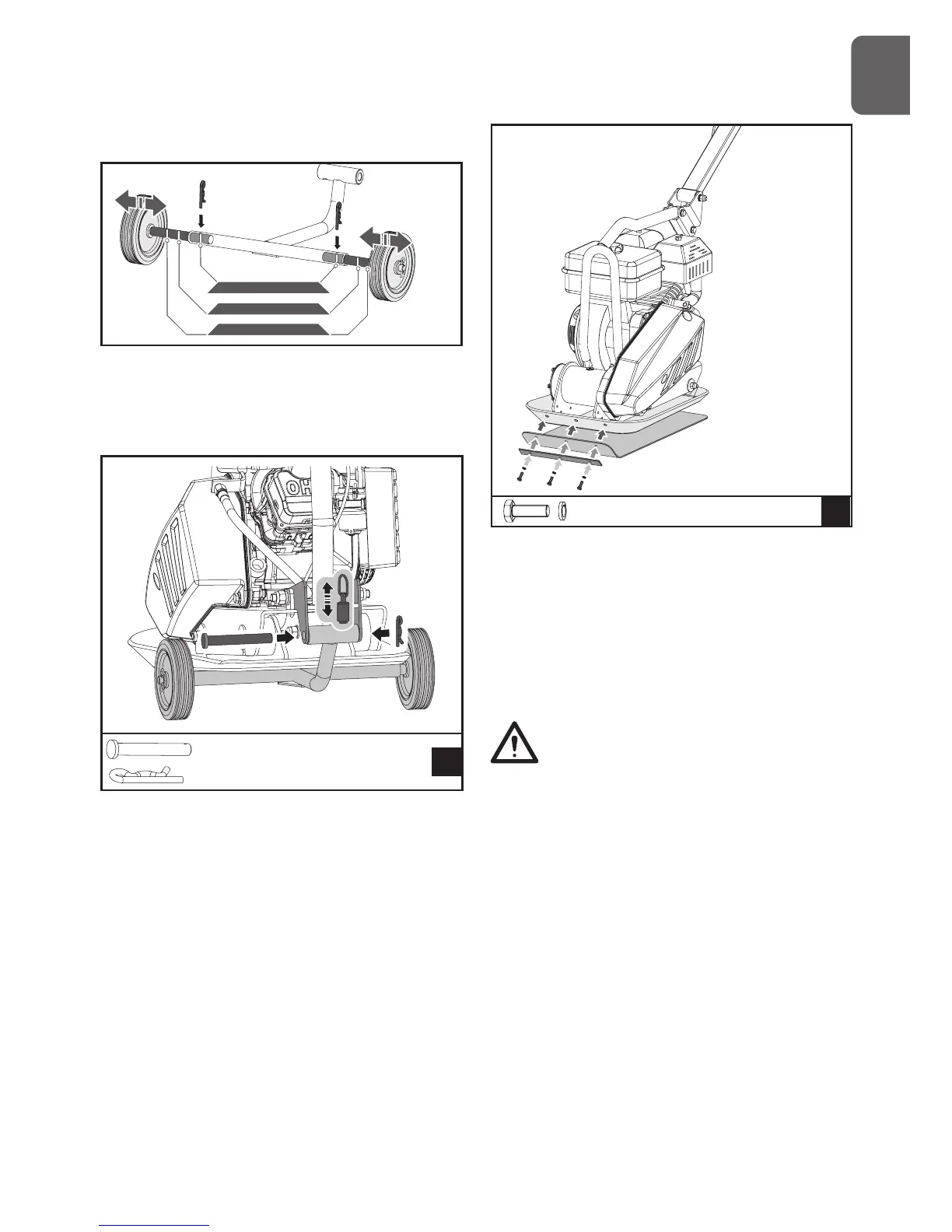

1. Slide the wheels over the stub axles. Secure with
hairpin retainers and flat washers.
2. Three holes on the stub axle allow to adjust
the distance between the wheels, pull
out the pin first, adjust the wheels to the
suitable distance, then tighten with the pin.
C
X1
X1
Ø14 X 100
3. Pull up the spring bolt and put the upper pipe
of the wheels bracket into the mounting bracket.
Align two ends of the pipe with the holes. Slide the
bolt in and secure with the clips.
Paving Pad Kit
The transparent rubber Paving Pad allows to
compact concrete paving slabs, stones, bricks
and blocks silently and gently.
For #29660, #29665
For #29642, #29655
For #29640
EM10 X 30 X 3
Attach the Paving Pad onto the Base Plate
as shown. Align the holes in the Base Plate,
Paving Pad and Clamp Plates, and secure it
with 3 bolts M10x30 and lock washers. (Only 2
bolts and lock washers for #29640.)
Engine Oil
OIL HAS BEEN DRAINED FOR SHIPPING.
Failure to fill engine sump with oil before starting
engine will result in permanent damage and void
engine warranty.
Add oil according to Engine Manual packed
separately with your tiller.
G
B
