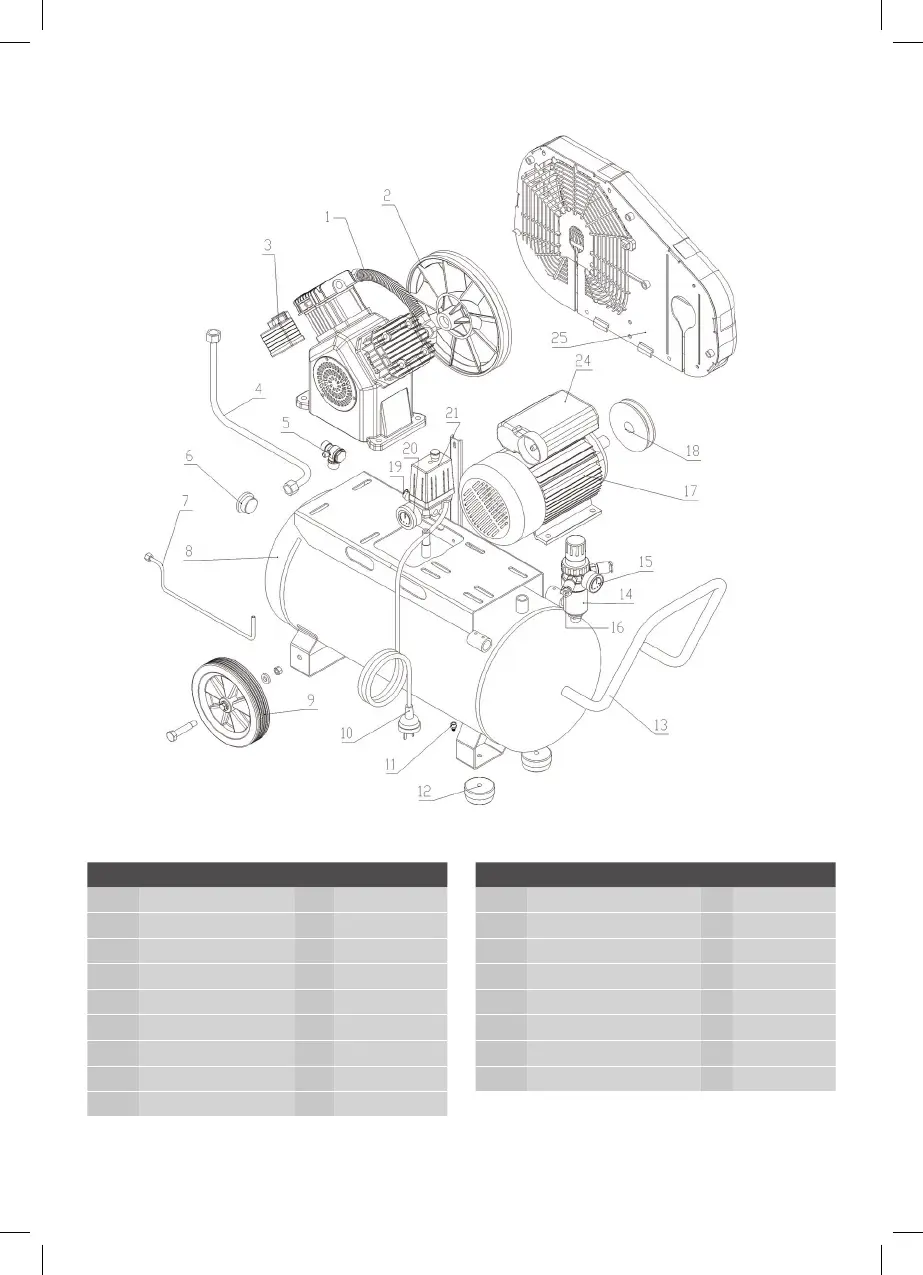

PARTS DIAGRAM
Part Description Qty SMG Part No.
1 Pump Tube Set 1 95 STVTPT
3 Air Filter 1 95 STOFV2AF
Exhaust Elbow 1 95 BRC185EE
4 Exhaust Tube Set 1 95 STBDET
5 One Way Valve 1 95 BRC155OWV
7 Unloading Tube Set 1 95 STBDUT
9 Wheel Set 2 95 STWH
11 Drain Tap 1 95 BRC95DT
12 Cushion Foot Set 2 95 BRC95RS
Part Description Qty SMG Part No.
13 Handle 1 95 STDDH
14 Filter Regulator 1 95 STREGWT
15 Pressure Gauge Outlet 1 95 STOPG
16 Outlet Nitto Style Socket (Female) 1 95 STNSF
19 Safety Valve 1 95 ST10SPV
20 Pressure Gauge Tank 1 95 STTPG
21 Pressure Switch (10 Bar) 1 95 ST10PS
25 Belt Guard Set 1 95 STBDMC
