WHEEL INSTALLATION LIGHT BULB REPLACEMENT
44 45
Read all of SAFETY and this section before attempting any procedure.
Pay particular attention to Notices, Cautions, Warnings and Dangers
Todecreasetheriskofprematurebulbfailure,donotallowyourngersto
contact new bulbs. Use clean, dry paper or paper towels to touch the glass
part of the bulb.

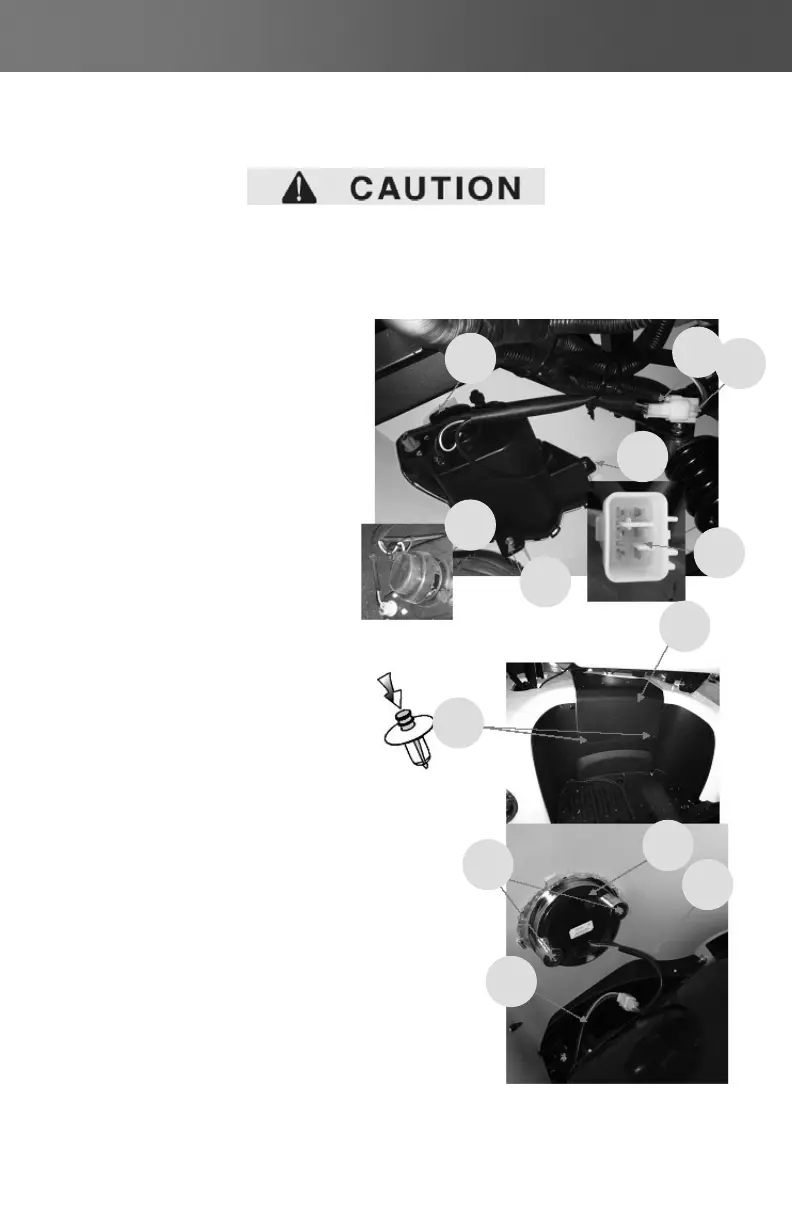

HEADLIGHT (if equipped)
Make sure that the vehicle
key switch is in the OFF position
and the key has been removed.
For vehicles equipped with lights
mounted in the cowl locate the
headlight bulb socket on the
backside of the light assembly.
Changing the bulb:
• Disconnect wiring
harness (3) and (8)
(Figure 17 - Headlight)
• Pull out (4) and take out
the bulb.
(Figure 17 - Headlight)
• Remove the wiring harness
connected with the bulb at
(9) by wire.
(Figure 17 - Headlight)
• Replace the bulb and
connect the wiring harness
to (9) position.
• Connect wiring harness
(3) to (8) (Figure 17 - Headlight)
Change the whole headlight:
• Disconnect wiring harness (3)
and (8)
(Figure 17 - Headlight)
• Use cross screwdriver to
remove bolts at (5) (6) (7)
and take out headlamp
assembly.
(Figure 17 - Headlight)
• Replace the headlights
andxtheboltsat(5) (6) (7)
(Figure 17 - Headlight)
• Connect wiring harness (3)
and (8) (Figure 17 - Headlight)
(Figure 17 - Headlight)
3.
8.
7.
5.
4.
6.
9.
11.
10.
13.
14.
12.
15.
(Figure 18 - Taillight
& Brake on page 46)
