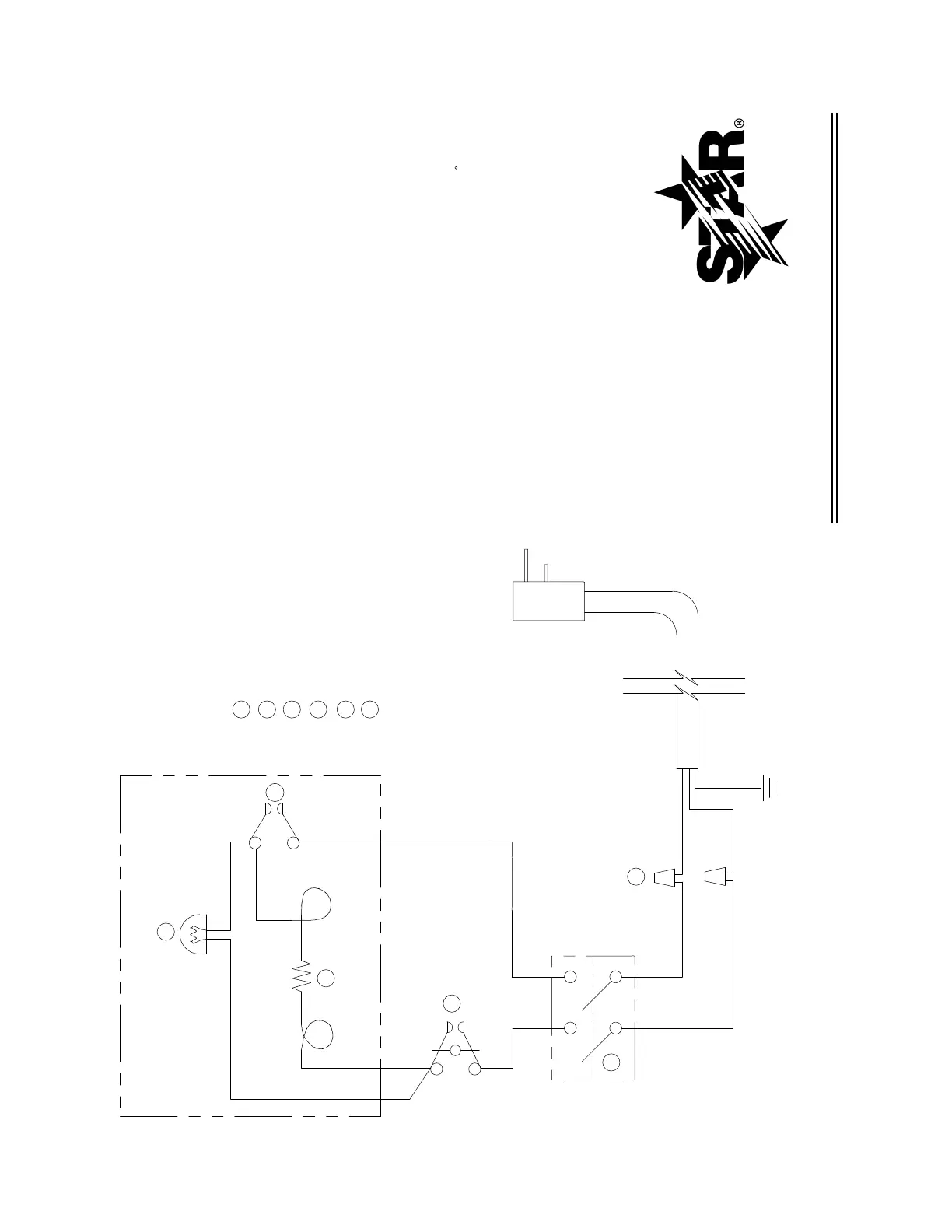

2M-Z15996 Star-Max Electric 15lb Fryer
STAR MANUFACTURING INTERNATIONAL INC.
SK1724 Rev C
3/13/2008
MODEL:
301HLD / 301HLF
THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC.
NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED.
NOTES:
1. LOOKING TOWARDS REAR
OF ELEMENT CONTROL ASSEMBLY.
2. LOOKING TOWARDS REAR
OF THE SWITCH.
NOTE 1
THERMOSTAT
PILOT LIGHT
HEATING ELEMENT
WIRE NUT (2)
HIGH LIMIT THERMOSTAT
ON-OFF SWITCH (2 POLE)
A
A
E
F
D
C
B
NOTE 2
NOTE: ALL POWER WIRES ARE #12 GAUGE
BLK
WHT
GRN
RATED
WATTAGE
4130
5500 240V
208V
PHASE
SINGLE
22.9
19.9
AMPS
NOMINAL
NEMA PLUG NUMBER 6-30P
CORD:12AWG/3,SJTO 105 C,250V
CORDSET ASSY# E3-301044
ELEMENT HOUSING ASSEMBLY
B
C
D
E
F
1 BLACK
2 WHITE
4 BLACK
3 WHITE
5 BLACK
6 BLACK
