PLATE COMPACTOR
7

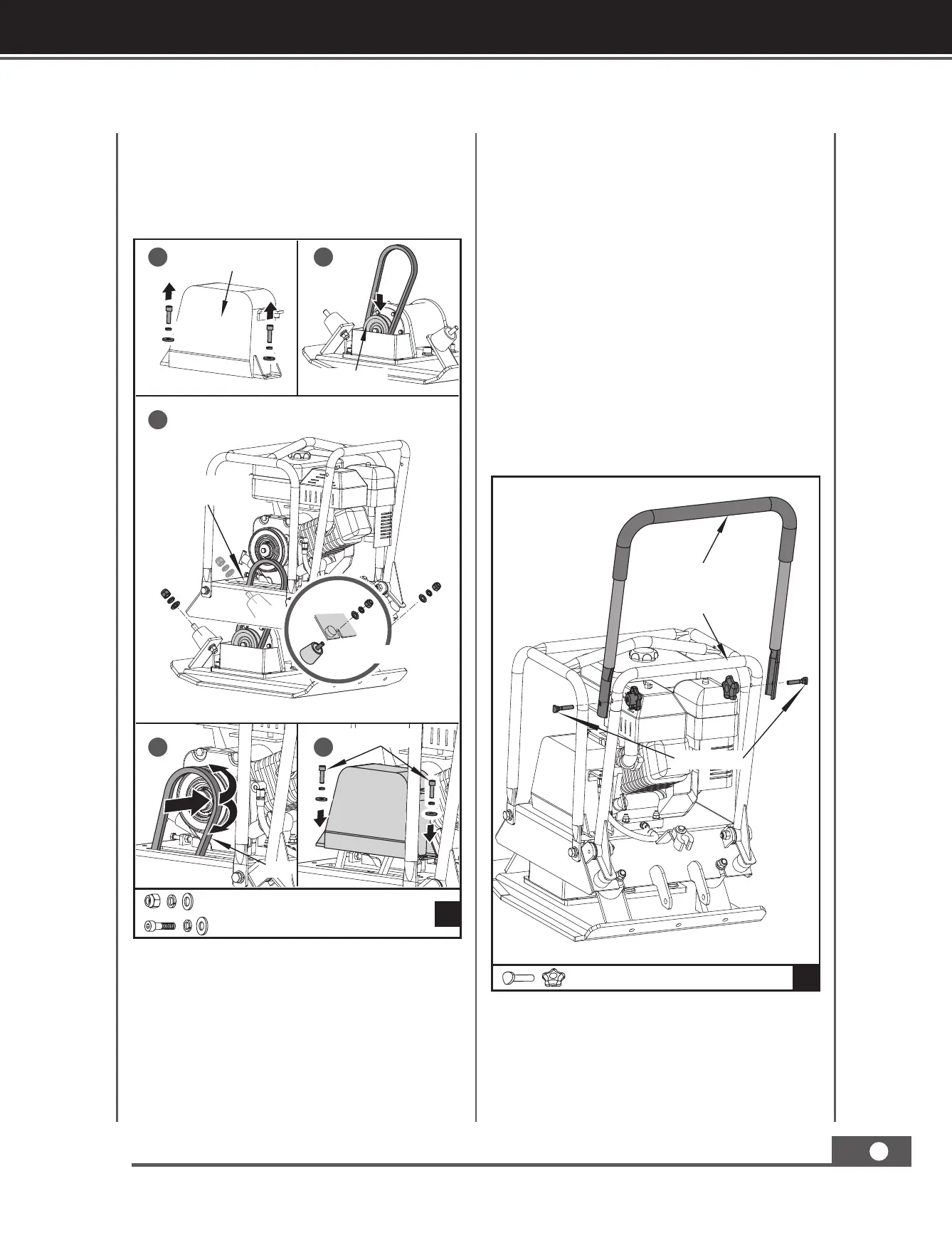

Following the assembly directions below, you
will assemble the plate compactor in a few
minutes.
Handle
Mount the handle to the chassis with the
button-headed bolt and knob-handle.
Upper Handle
Lower Handle
M8
×
45 (
×
2)
M8 x 45 X 2
B
Body
Remove the two M8x25 Socket head cap
screw from the installed belt cover, set the
screws with washers and the belt cover
aside for later.
Slide the belt on the exciter pulley.
1.
2.
4.
3.
5.
M8
×
25 (
×
2)
Belt
Belt Cover
Exciter Pulley
1
3
2
4 5
M12 (
×
4)
The slot on
the Engine base
X 2
A
Ø12 X 4
With the belt inserted out from the slot
on the engine base, place the engine with
frame assembly on the exciter chassis.
Make sure the front and rear slots on the
engine base seat firmly on the shaft of
the shock absorbing supports. Secure the
assembly with the M12 nut, lock washer
and flat washer in four places.
Slide the belt on the clutch pulley.
Reinstall the belt cover in place with the
removed flat washer, lock washer and
socket head cap screw and tighten.
ASSEMBLY
