Sivu 13 / 23
7.3. Adjusting the side brushes
Side brushes are available as an accessory for both sides of the collecting sweeper. For the best possible operating
efficiency, adjust the side brush so that it will tilt to the front and to the outer side. (Picture 5)
Adjusting the side brush:
1. Adjusting the height and wear of the side brush: rotate the push arm
2. Tilting the brush to the side: Loosen the bolts, tilt the brush to the desired position, tighten the bolts
3. Tilting the brush to the front / back: Loosen the bolts, tilt the brush to the desired position, tighten the bolts

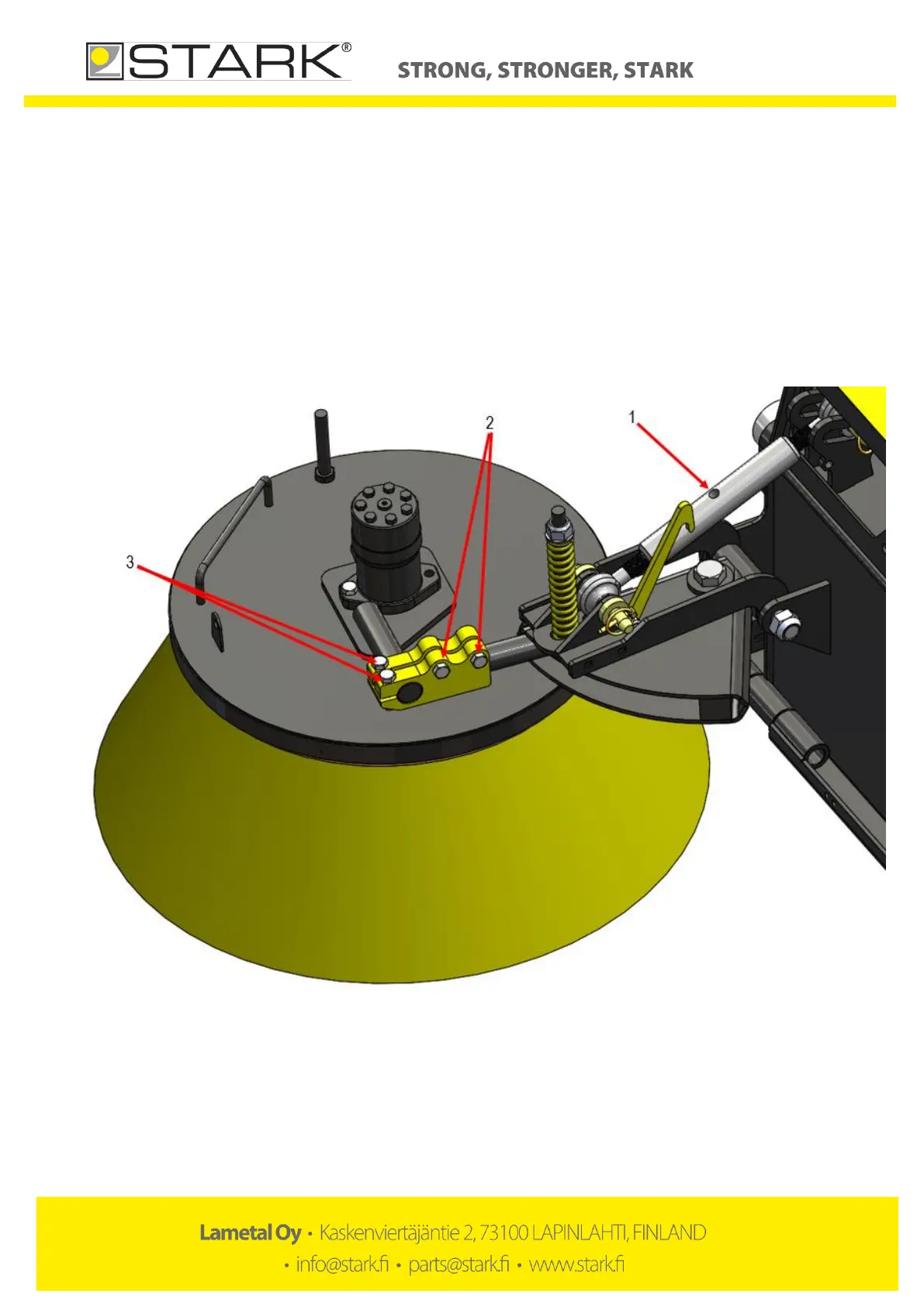

Picture 5. Adjusting the sidebrush
