Sivu 8
/
23
5.
MAIN PARTS OF THE COLLE
CTING
SWEEPER
1)
Frame of the collecting
sweeper
2)
Bottom plate
3)
Broom roller
4)
Floating beam
5)
Protective case
6)
Hydraulic cylinder
7)
Fr
ont support wheel
8)
Back support wheel
9)
Brush lamellas

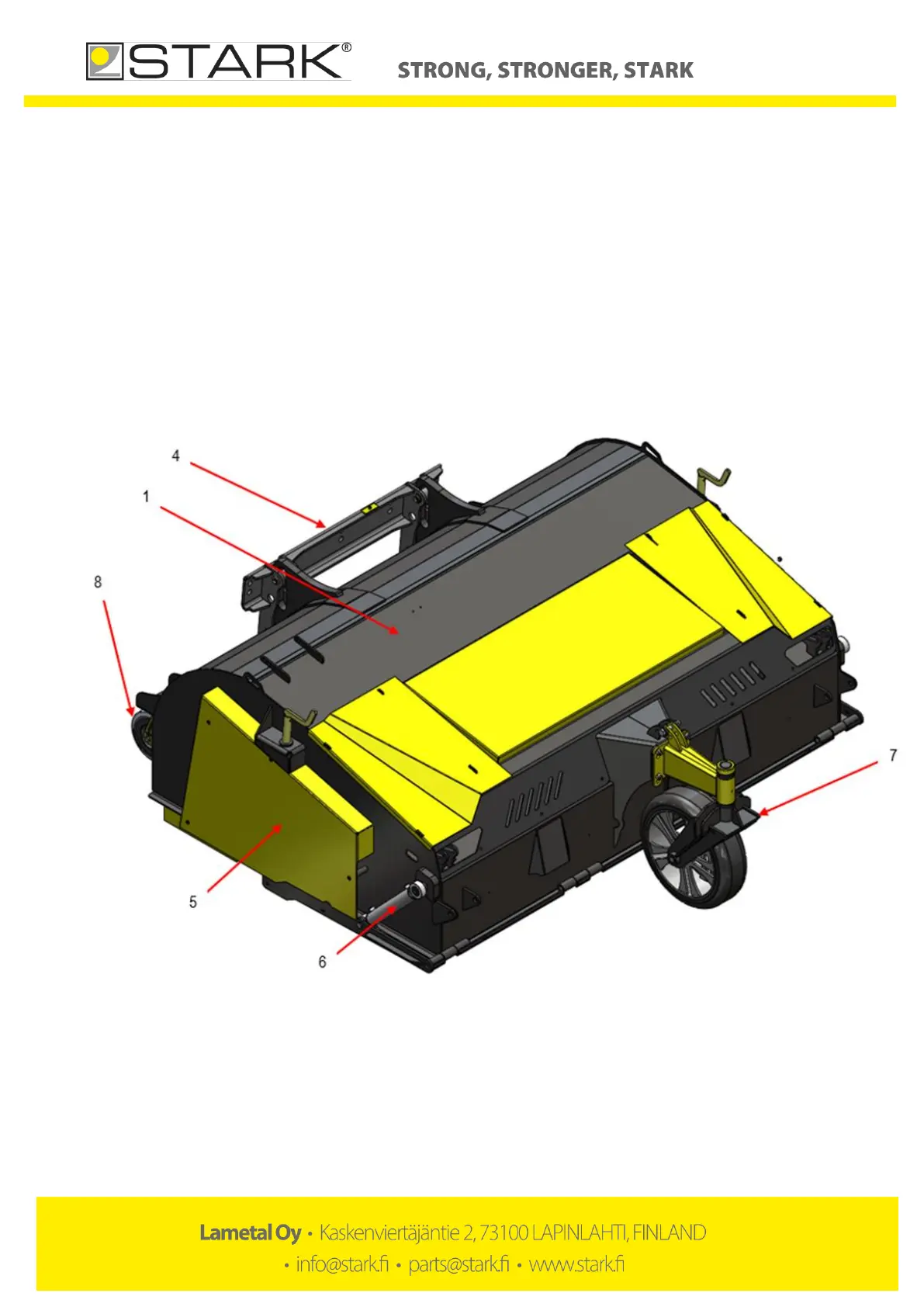

Picture 2. Main parts of the sweeper
7
9
