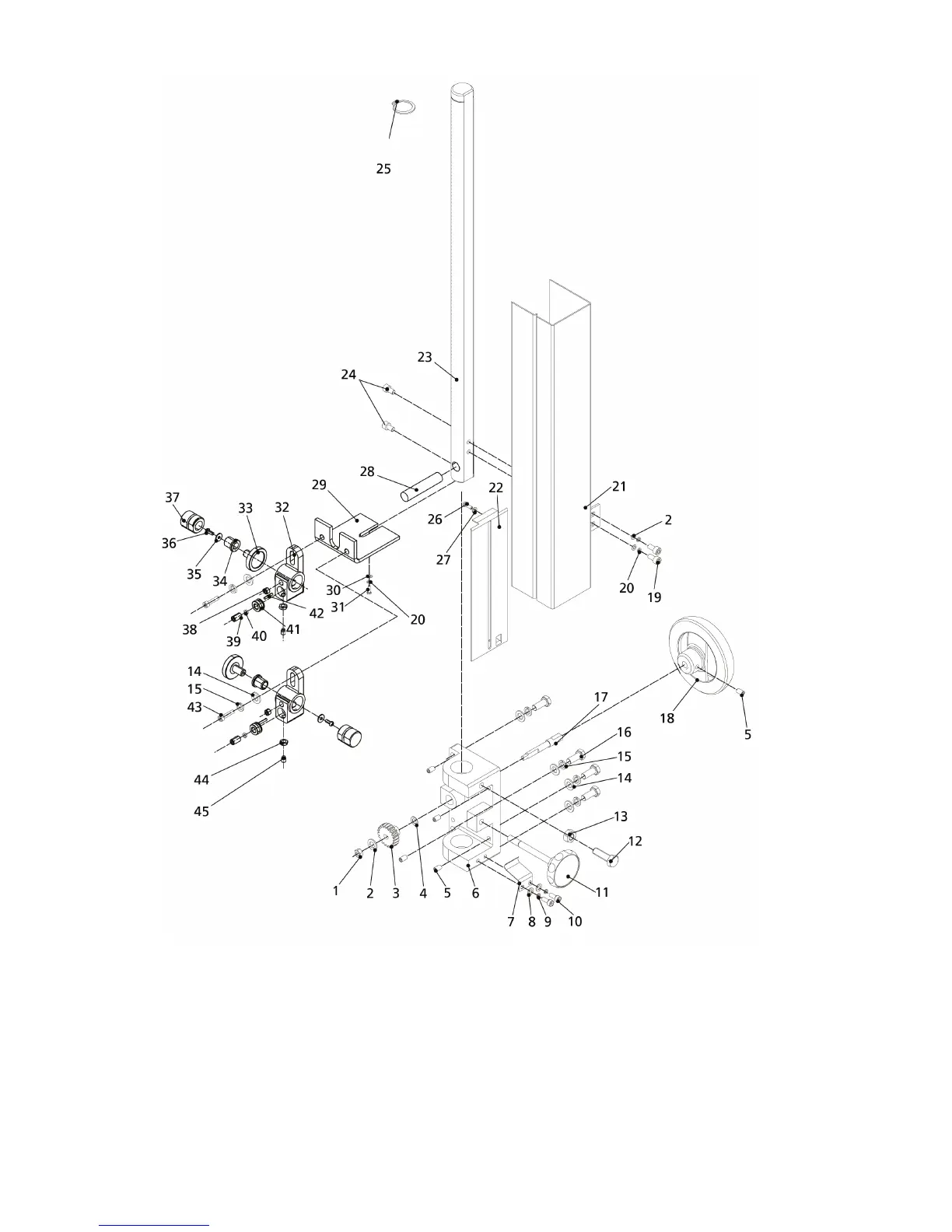

STARTRITE 352E - Diagrams & Components - 352 E

Ref No. Description
1 Locknut M6
2 Flat washer 6
3 Gear
4 Spring washer
5 Set screw M6X12
6 Upper blade guide support
7 Spring plate
8 Flat washer 5
9 Spring washer 5
10 Hex. Socket head screw M5X10
11 Adjusting knob
12 Hex. Bolt M8X40
13 Hex. Nut M8
14 Flat washer 8
15 Spring washer 8
16 Hex. Bolt M8X16
17 Adjusting shaft
18 Handle
19 Hex. Socket head screw M6X12
20 Spring washer 6
21 Protective cover
22 Sliding panel
23 Guide rack
24 Hex. Socket head screw M6X10
25 Retaining ring 30
26 Flat washer 5
27 Pan head screw M5X8
28 Rear support bar
29 Support plate
30 Flat washer 6
31 Hex. Bolt M6X16
32 Side support base
33 Guide panel
34 Bushing
35 Flat washer 4
36 Pan head screw M4X8
37 Adjusting bushing
38 Set screw M8X8
39 Set screw M8X12
40 Hex. Nut M8
41 Bushing
42 Pin nail
43 Hex. Socket head screw M8X20
44 Hex. Nut M6
45 Screw M6X10
