STARTRITE 352E - Page 21

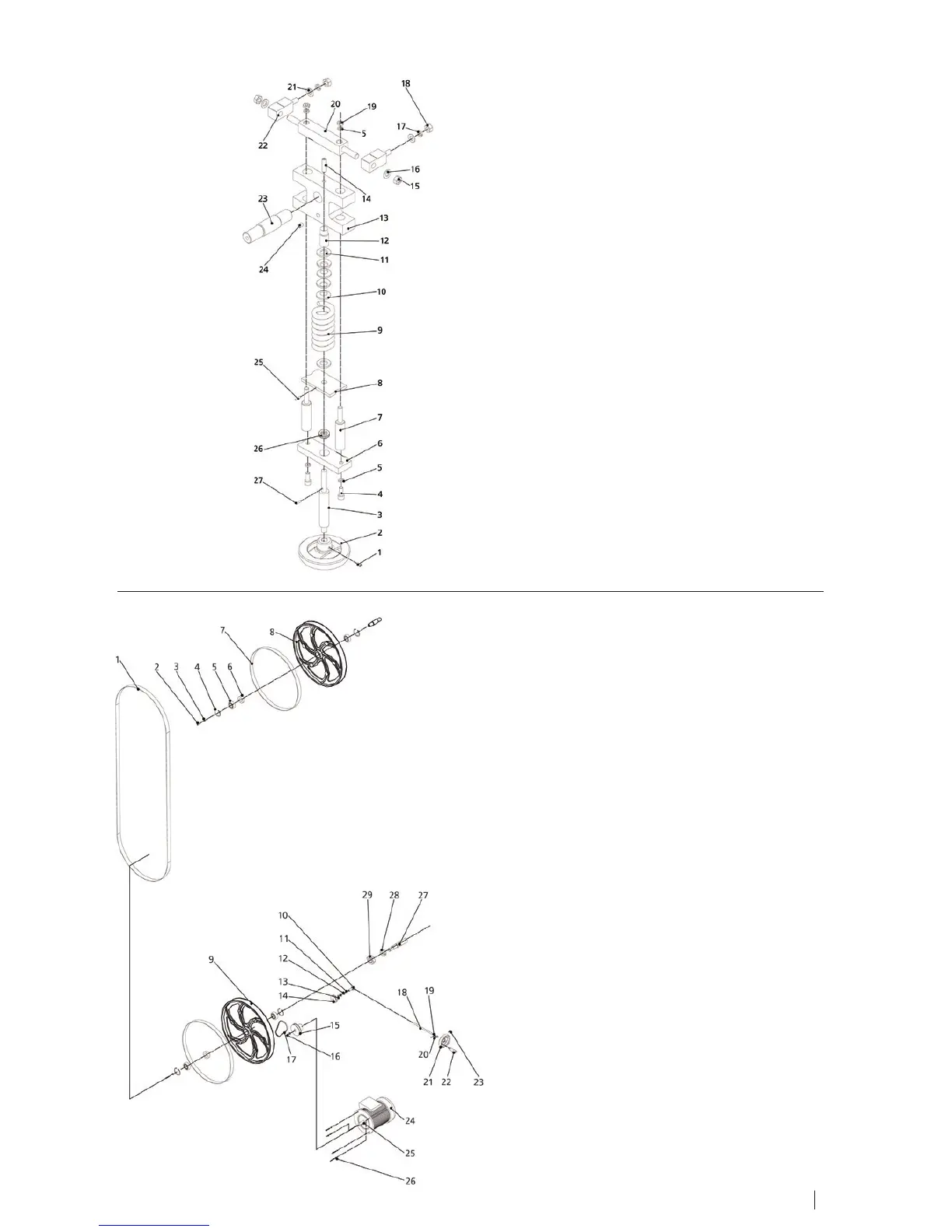

Ref No. Description
1 Set screw M6X12
2 Big Handwheel
3 Thread rod
4 Hex. Bolt M10X25
5 Spring washer 10
6 Lower bracket
7 Shaft
8 Flat washer
9 Spring
10 Spring washer 50
11 Flat washer 24
12 Bushing
13 Sliding block
14 Set screw M8X20
15 Locknut M12
16 Flat washer 10
17 Spring washer 12
18 Cap nut M12
19 Hex. Nut M10
20 Thread rod
21 Flat washer 12
22 Joint block
23 Upper wheel shaft
24 Set screw M8X8
25 Roll pin 3x30
26 Bearing
27 Roll pin 3x16
Ref No. Description
1 Saw blade
2 Screw M8X16
3 Washer 8
4 Retaining ring 47
5 Bearing
6 Bearing
7 Tyre
8 Upper wheel
9 Lower wheel
10 shaft
11 Retaining ring 12
12 Bearing
13 Retaining ring 28
14 Tension wheel
15 Motor pulley
16 Left-hand bolt M8X20
17 V belt
18 Threaded rod
19 Retaining tube
20 Screw M5X8
21 Small handwheel
22 Small handle
23 Screw M6X12
24 Motor
25 Key 6x28
26 Washer 8
27 Lower wheel shaft
28 Washer 27
29 Hex. Nut M27
