STARTRITE 352E - Page 22

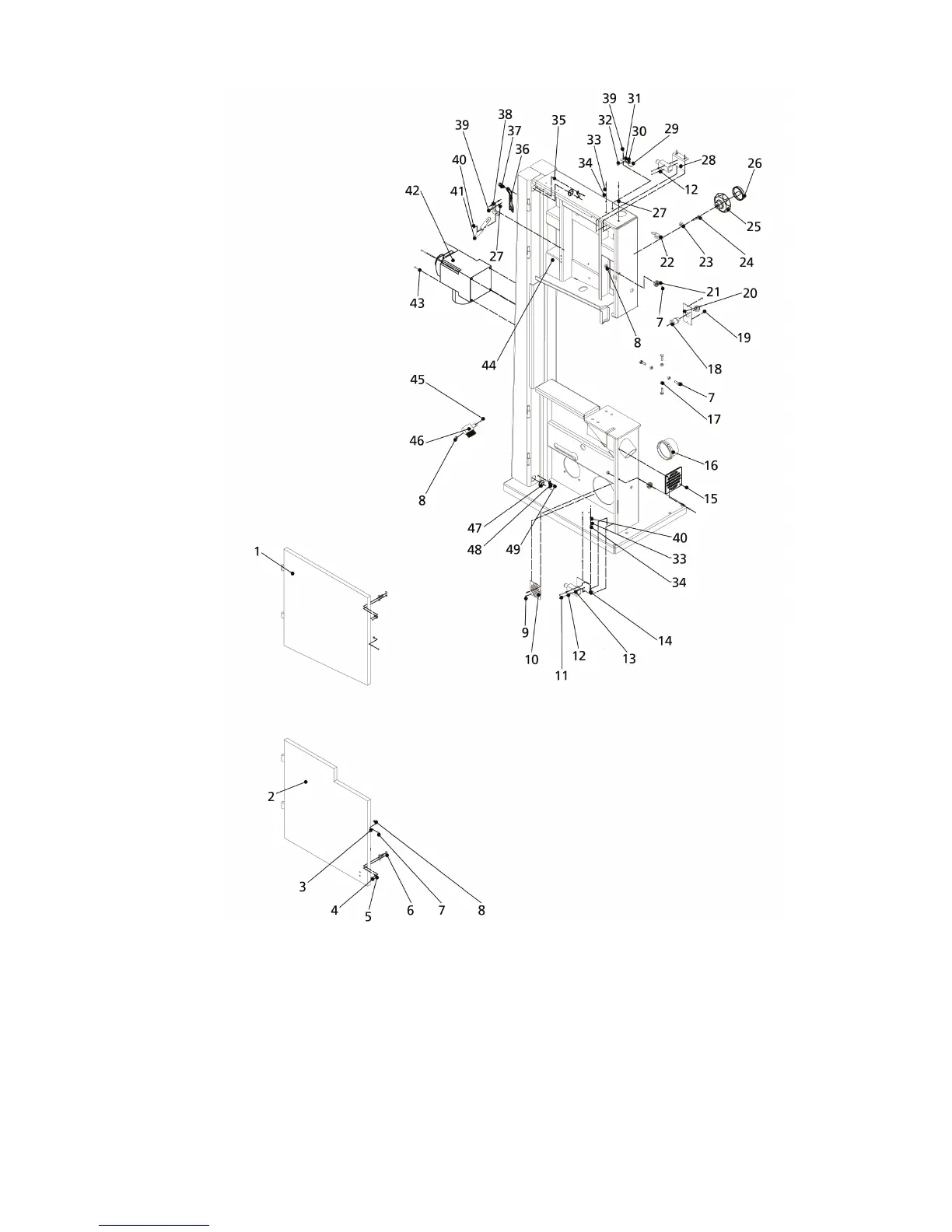

10. Diagrams & Components-352E
Ref No. Description
1 Upper wheel cover
2 Lower wheel cover
3 Bushing
4 Pan head screw M4X10
5 Flat washer 4
6 Thread plate
7 Hex. Socket head screw M6X20
8 Locknut M6
9 Tapping screw 3.5X9.5
10 Dust bar screen
11 Pan head screw M4X30
12 Spring washer 4
13 Safety switch
14 Switch plate
15 Dust bar screen
16 Dust port
17 Hex. Nut M6
18 Strain relief M20
19 Pan head screw M6X8
20 Cable plate
21 Star handle
22 Wing nut
23 Hex. Nut M8
24 Hex. Bolt M8X60
25 Knob body
26 Knob cap
27 Hex. Nut M5
28 Switch plate
29 Gemel
30 Spring
31 Gemel
32 Pin shaft
33 Spring washer 5
34 Flat washer 5
35 Frame
36 Plastic pusher
37 Screw M6X25
38 Indicator plate
39 Pan head screw M5X16
40 Screw
41 Indicator
42 Switch
43 Pan head screw M4X50
44 Tension scale
45 Hex. Bolt M6X25
46 Brush
47 Rubber holder
48 Clamp plate
49 Screw M5X10
