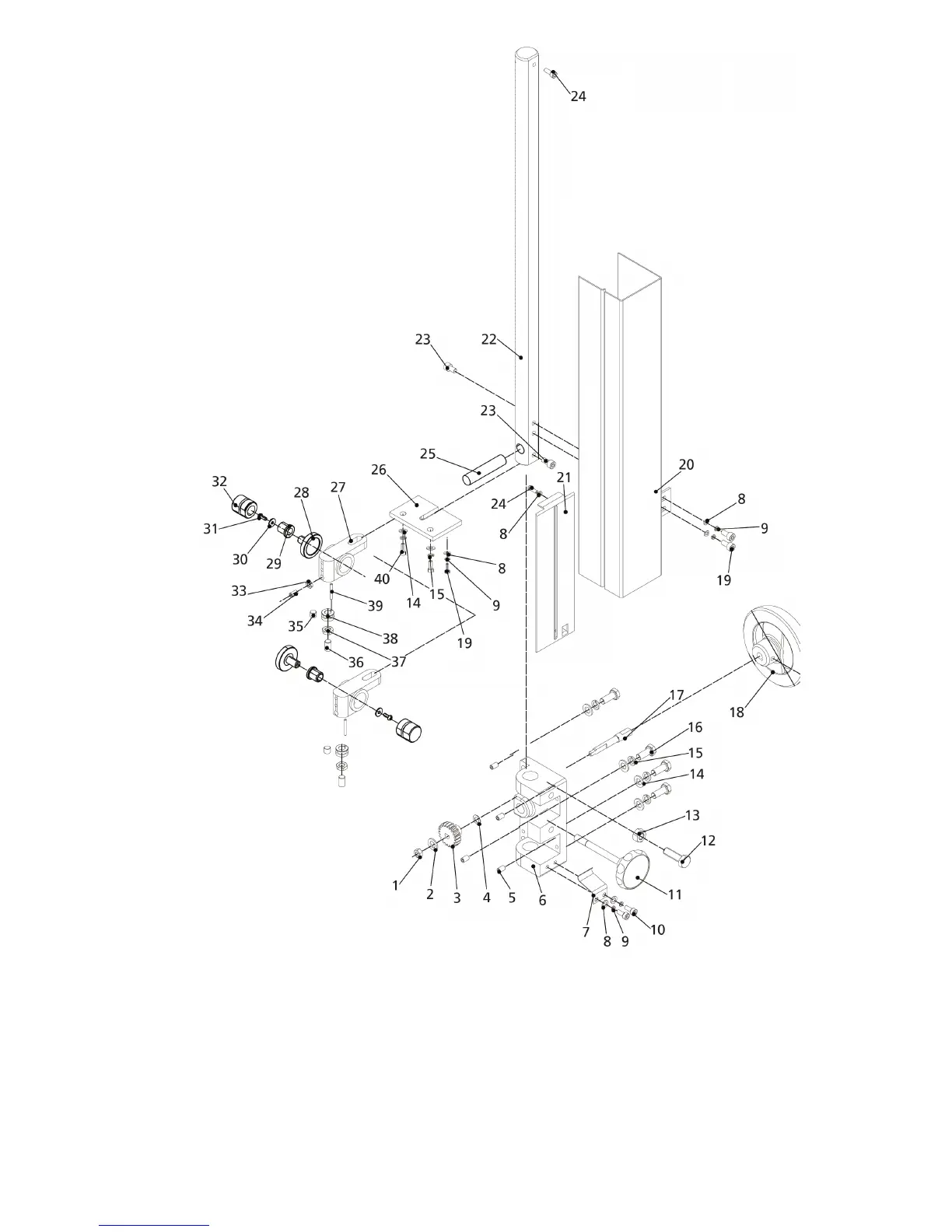

STARTRITE 352E - Page 24

Ref No. Description
1 Locknut M6
2 Flat washer 6
3 Gear
4 Spring washer
5 Set screw M6X12
6 Upper blade guide support
7 Spring plate
8 Flat washer 5
9 Spring washer 5
10 Hex. Socket head screw M5X10
11 Lock handle
12 Hex. Bolt M8X30
13 Hex. Nut M8
14 Flat washer 8
15 Spring washer 8
16 Hex. Bolt M8X16
17 Adjusting shaft
18 Handle
19 Hex. Socket head screw M5X12
20 Protective cover
21 Sliding panel
22 Guide rack
23 Hex. Socket head screw M5X8
24 Pan head screw M5X8
25 Rear support bar
26 Support plate
27 Side support base
29 Guide panel
30 Bushing
31 Flat washer 4
32 Pan head screw M4X8
33 Adjusting bushing
34 Hex. Nut M6
35 Screw M6X10
36 Set screw M8X8
37 Set screw M8X12
38 Hex. Nut M8
39 Bushing
40 Pin nail
41 Hex. Socket head screw M8X12
