STARTRITE 352E - Page 25

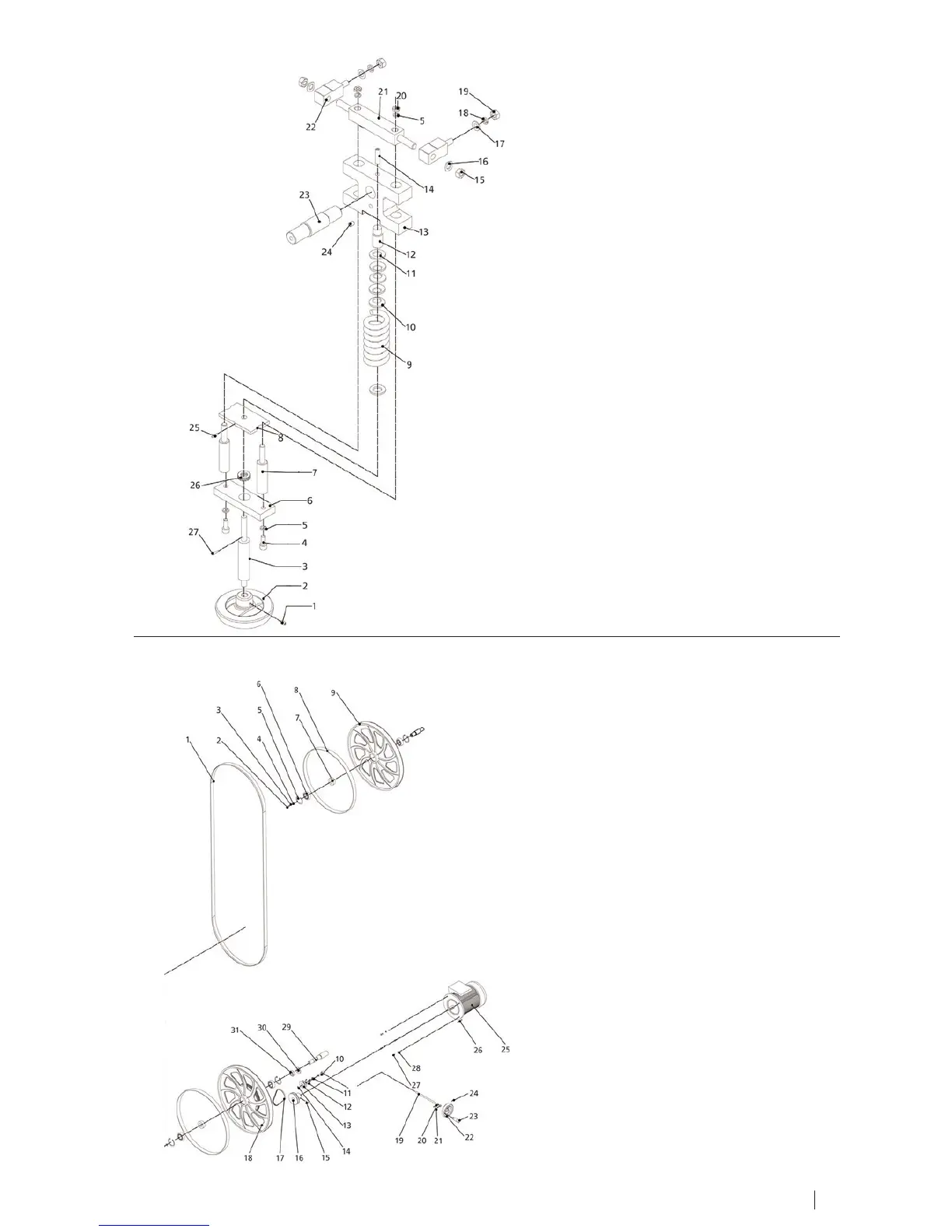

Ref No. Description
1 Set screw M6X12
2 Small handwheel
3 Thread rod
4 Hex. Socket head screw M8X30
5 Spring washer 10
6 Lower bracket
7 Shaft
8 Flat washer
9 Spring
10 Spring washer 42
11 Flat washer 20
12 Bushing
13 Sliding block
14 Set screw M8X25
15 Locknut M10
16 Flat washer 10
17 Flat washer 12
18 Spring washer 12
19 Cap nut M12
20 Hex. Nut M10
21 Thread rod
22 Joint block
23 Upper wheel shaft
24 Set screw M8X8
25 Roll pin 3x30
26 Bearing
27 Roll pin 3x16
Ref No. Description
1 Saw blade
2 Hex. Socket head screw M8X16
3 Spring washer 8
4 Flat washer M8
5 Retaining ring 40
6 Bearing
7 Bearing bushing
8 Tyre
9 Upper wheel
10 Shaft
11 Bearing
12 Retaining ring 28
13 Tension wheel
14 Retaining ring 12
15 Set screw M6X8
16 Motor pulley
17 Multi-belt
18 Lower wheel
19 Thread rod
20 Retaining tube
21 Set screw M5X8
22 Small handwheel
23 Small handle
24 Hex. Socket head screw M6X16
25 Motor
26 Roll pin 6x20
27 Hex. Bolt M6X16
28 Spring washer 6
29 Lower wheel shaft
30 Hex. Nut
