11. Parts Lists and Diagrams - 403/UK1 and 403/UK3
1 40
1 13
1 14
1 15
1 16
1 17
1 18
1 19
1 20
1 2 1 122
123
124
125
126
127
128
129
130
131
132
133
139 1 3 8 1 3 6 1 341 351 37
1 41
113 Spring washer WSH50GB1972B 8
114 Flat washer WSH24GB97D1Z 2
115 Plate BS5001040009 1
116 Roll pin PIN3X30GB879D1B 1
117 Thread rod BS4001040002 1
118 Bearing BRG51104GB301 2
119 Bracket BS5001040002 1
120 Knob 1904011 1
121 Bracket BS5001040005 1
122 Hand wheel JXBS2001040005-001S 1
123 Set screw M6X12GB80B 1
124 Pan head screw M10X30GB70Z 2
125 Spring washer WSH10GB93Z 2
126 Bracket BS5001040003 1
127 Sliding rod BS5001040001 2
128 Upper shaft BS4001040001 1
129 Bracket JXBS1401030001-001G 1
130 Set screw M8X20GB80B 1
131 Spring washer WSH10GB93B 2
132 Hex nut M10GB6170Z 2
133 Thread rod JXBS1801030007 1
134 Hex nut M12GB923Z 2
135 Spring washer WSH12GB93Z 2
136 Flat washer WSH12GB97D1Z 2
137 Bolt JXBS1801030006 2
138 Flat washer WSH10GB97D1Z 2
139 Lock nut M10GB889Z 2
140 Washer BS5001040007 1
141 Tube BS5001040006 1
No. Description Part Number Quantity No. Description Part Number Quantity

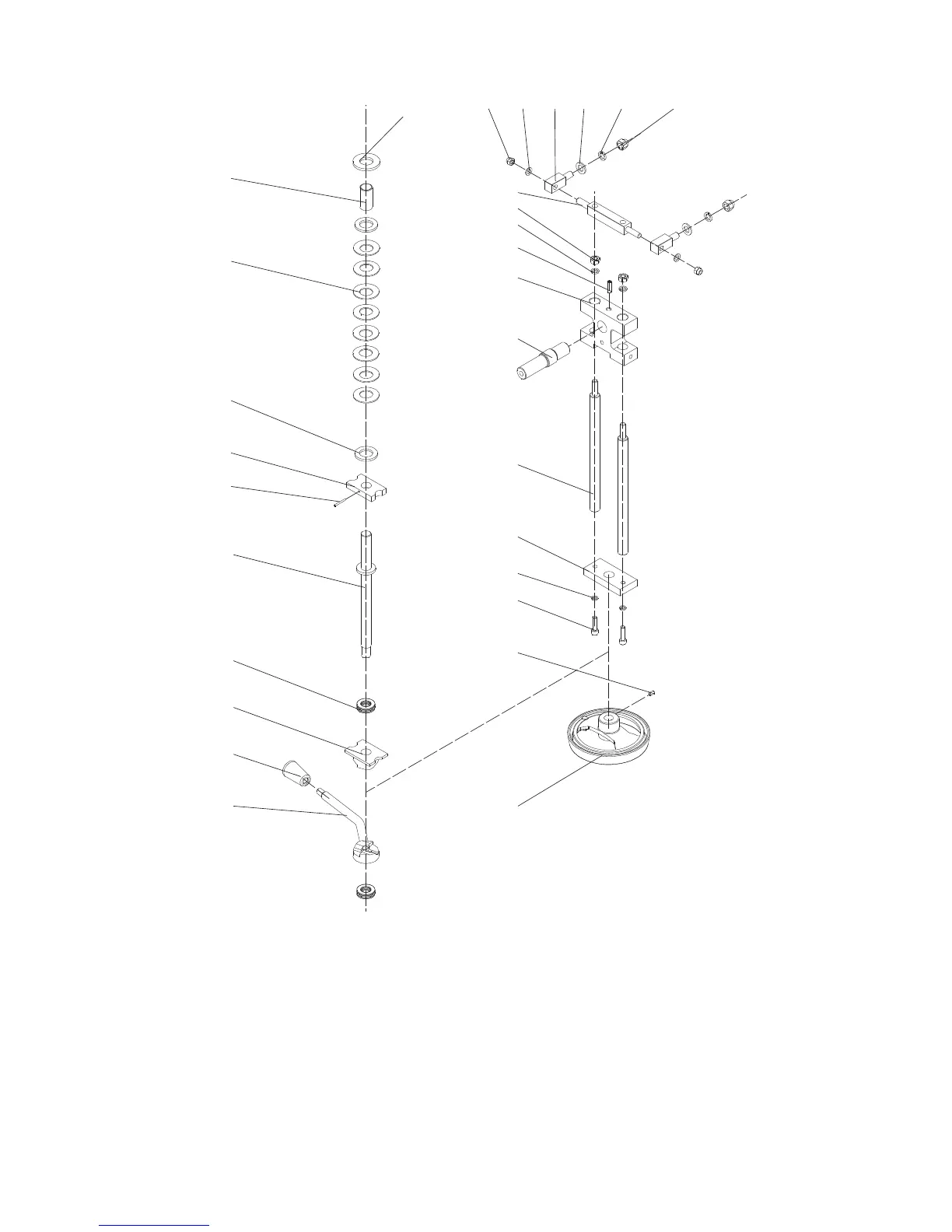

Blade Tension Assembly
