STARTRITE 403 - Page 27

27

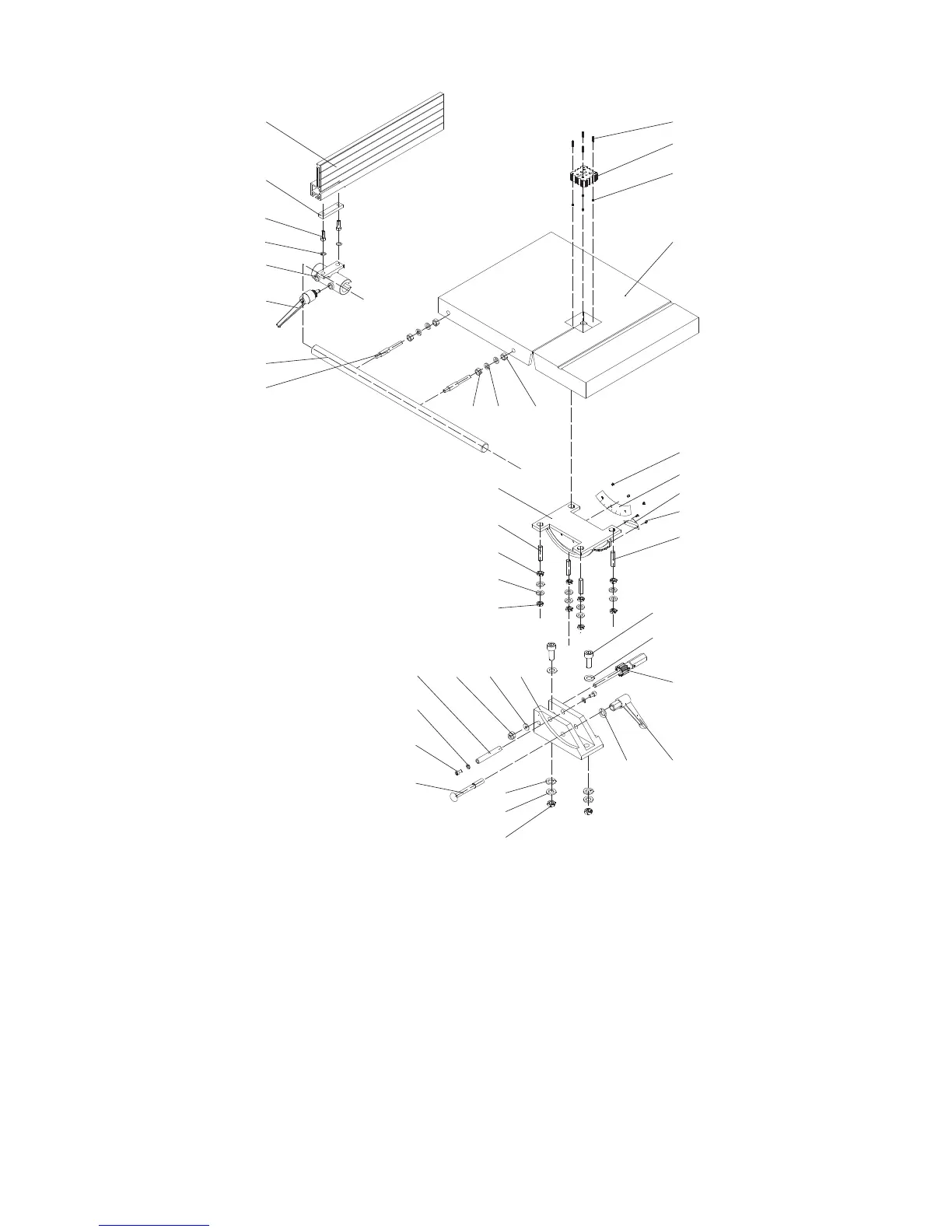

12. Parts Lists and Diagrams - 503/UK3
73
74
75
76
77
78
79
80
81 82 83
84
85
86
87
88
89
90
91
92
93
948295
96
97
98
99
100
82
83
101 1 02
1 03
104
105
1 06
1 07
1 08
1 09
73 Rip fence JL26060002C 1
74 Lock plate JXBS2001060001 1
75 Screw M8X25GB70Z 2
76 Washer WSH8GB97D1Z 2
77 Fence bracket JXBS2001060002-001G 1
78 Handle JXBS2201061000-001S 1
79 Fence guide JXBS2001060005 1
80 Rod JXBS2001060003 2
81 Hex nut JXBS2001060004 2
82 Washer WSH10GB97D1Z 7
83 Hex nut M10GB6170Z 4
84 Trunnion Assembly JXBS2001031100 1
85 Nut M12X60GB77B 3
86 Hex nut M12GB6172Z 4
87 Large washer WSH12GB96Z 8
88 Hex nut M12GB6170Z 4
89 Nut M12X50GB77B 1
90 Nut M3X5GB818Z 2
91 Indicator JXBS2401031008 1
92 Scale JXBS2001031004A 1
93 Rivet RVT2D5X5GB827C 3
94 Trunnion JXBS2001031001 1
95 Lock nut JL29042004 1
96 Guide shaft JXBS2001031002 1
97 Nut M6X10GB70Z 2
98 Large washer WSH6GB5287Z 2
99 Bolt M12X100GB14Z 1
100 Spring washer WSH10GB93Z 2
101 Washer WSH12GB97D1Z 1
102 Locking handle KTSB-1-A-M12X95 1
103 Gear shaft JMBS2201032200 1
104 Large washer WSH10GB96Z 2
105 Bolt M10X40GB5783Z 2
106 Table BS5001030002-001G 1
107 Lock nut M5GB889Z 4
108 Table insert BS5001030001-001S 1
109 Nut M5X30GB77B 4
No. Description Part Number Quantity No. Description Part Number Quantity
Table Assembly
