28
12. Parts Lists and Diagrams - 503/UK3
1 12
1 13
1 14
1 15
1 16
1 17
1 18
1 19
1 20
1 21
1 22
1 23
1 24
1 25
1 26
1 27
1 28
1 29
1 34
135
1 30
1 31
1 32
1 33
1 36 1 37 138 139 1 40
112 Washer BS5001040007 1
113 Tube BS5001040006 1
114 Spring washer WSH50GB1972B 8
115 Flat washer WSH24GB97D1Z 1
116 Plate BS5001040009 1
117 Roll pin PIN3X30GB879D1B 1
118 Thread rod BS5001040004 1
119 Bearing BRG51104GB301 2
120 Bracket BS5001040002 1
121 Knob 1904011 1
122 Bracket BS5001040005 1
123 Hand wheel JXBS2001040005 1
124 Set screw M6X12GB78B 1
125 Pan head screw M10X30GB70Z 2
126 Spring washer WSH10GB93Z 2
127 Bracket BS5001040003 1
128 Sliding rod BS5001040001 2
129 Upper shaft BS5001040008 1
130 Bracket JXBS1401030001 1
131 Set screw M8X20GB80B 1
132 Spring washer WSH10GB93B 2
133 Hex nut M10GB6170Z 2
134 Thread rod JXBS1801030007 1
135 Lock nut M10GB889Z 2
136 Spring washer WSH10GB97D1Z 2
137 Bolt JXBS1801030006 2
138 Flat washer WSH12GB97D1Z 2
139 Spring washer WSH12GB93Z 2
140 Hex nut M12GB923Z 2
No. Description Part Number Quantity No. Description Part Number Quantity

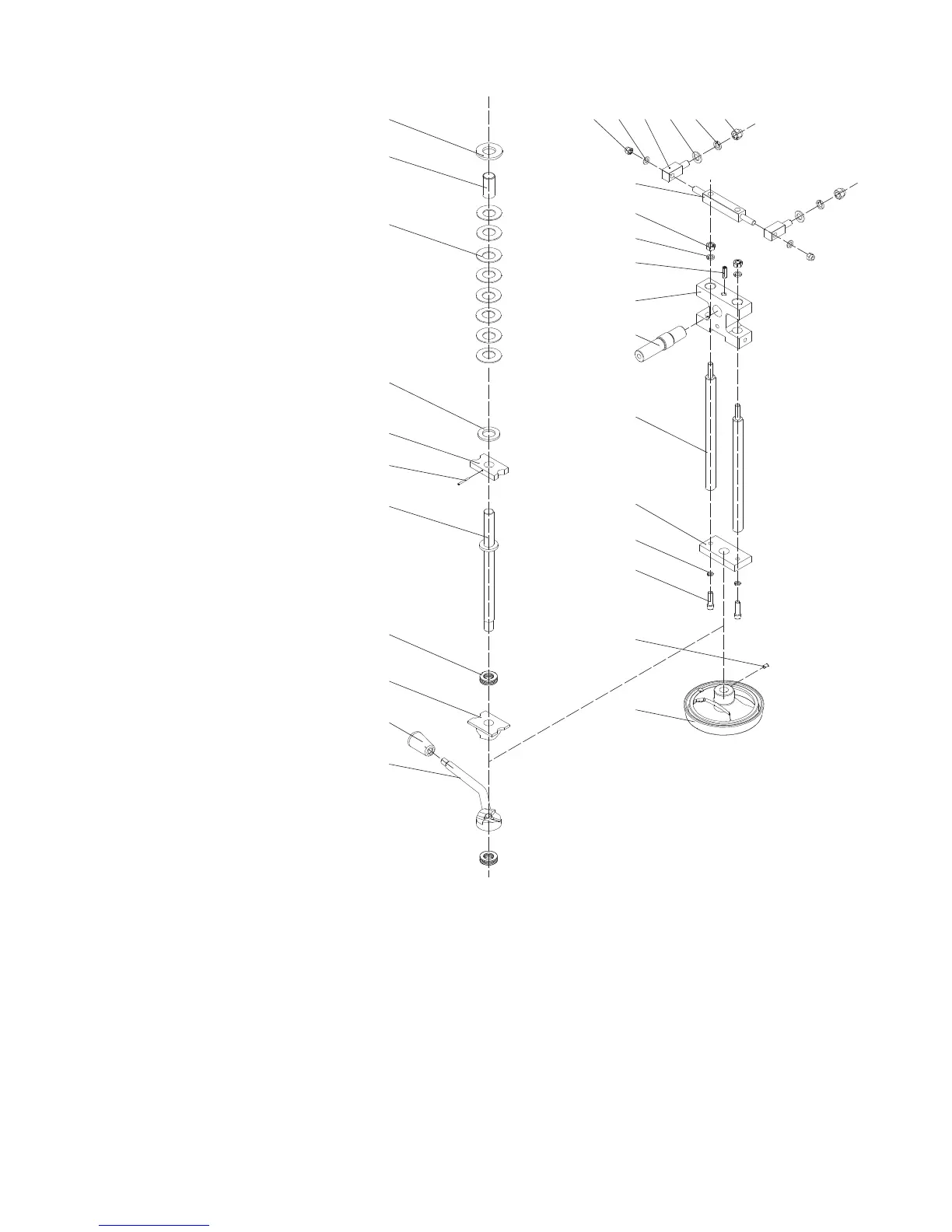

Blade Tension Assembly
